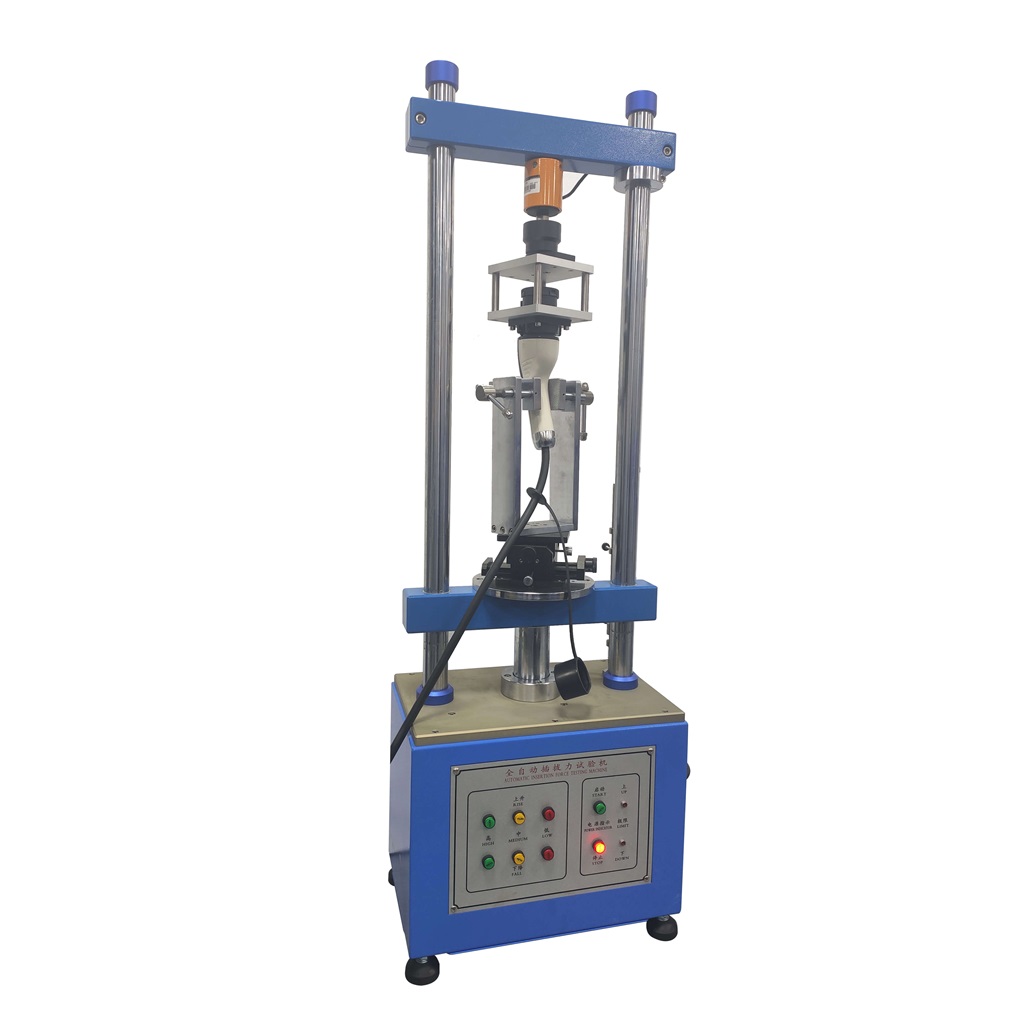

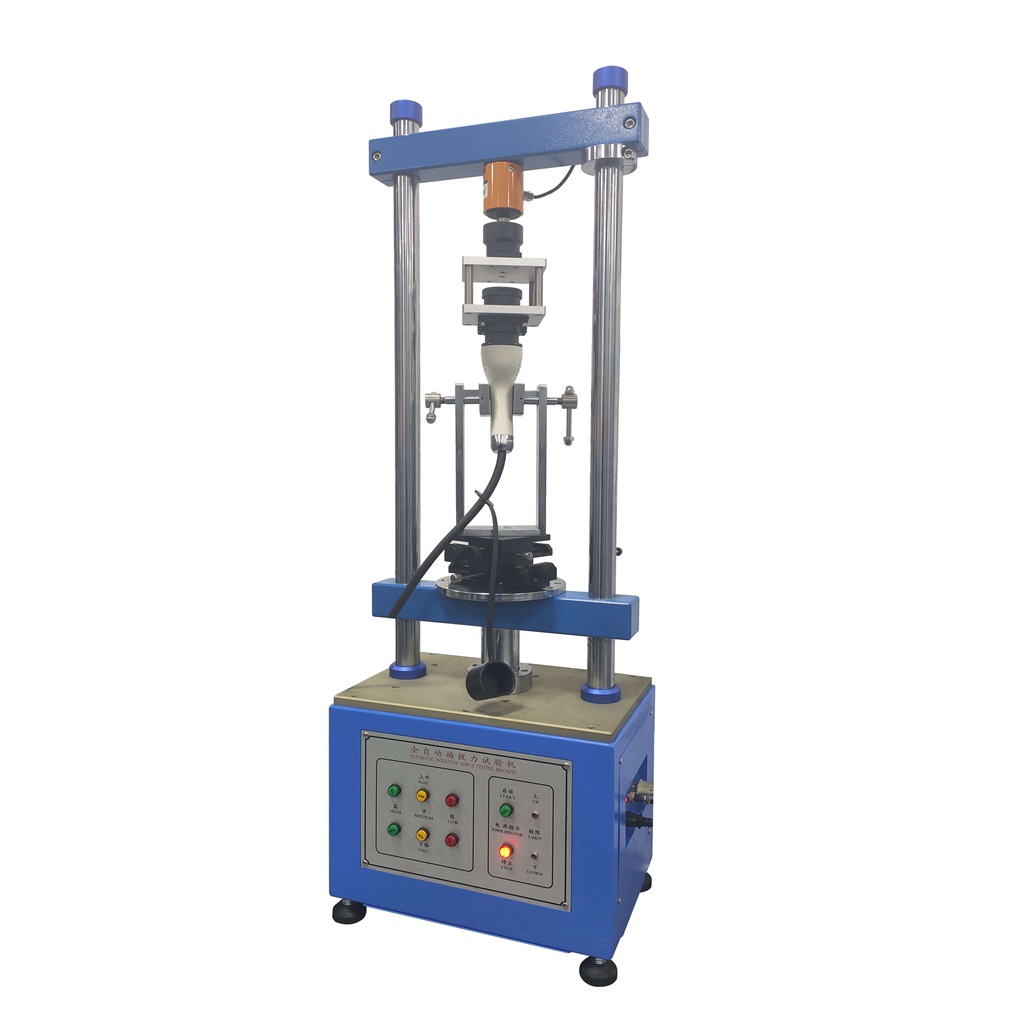

Precision Force Measurement for Connectors & Components
The 1220S SERVO Insertion Force Tester delivers 0.01gf resolution force testing for connectors, springs, and electrical components. With 5 load capacities (2kg-100kg) and 200mm/min speed, it automates insertion/extraction force, life cycle decay analysis, and generates ISO-compliant reports via PC software.
Key Features
✔ Ultra-Precise: 0.01gf load resolution & 0.001mm displacement accuracy
✔ Automated Analysis: Auto pass/fail judgment with SPC data (max/min/avg/SD)
✔ Multi-Axis Testing: X/Y/Z movement (75mm×75mm×150mm) for complex alignments
✔ Standards Ready: Pre-configured for IEC 60512, EIA-364-13
✔ Life Testing: 10,000+ cycle endurance with decay curve tracking
Technical Specifications
| Parameter | Specification |
|---|---|
| Load Capacity | 2kg/5kg/20kg/50kg/100kg (optional) |
| Force Resolution | 0.01gf (0.0001N) |
| Speed Range | 0–200mm/min (±0.5%) |
| Travel Stroke | 150mm max |
| Data Output | Load-displacement curves, CSV reports |
| Power | 220V/50Hz (customizable) |
Industry Applications
Connector Manufacturing:
- USB/TF card socket insertion force
- Automotive connector mating cycles
Medical Devices:
- IV catheter hub retention force
- Surgical tool spring resistance
Consumer Electronics:
- Keyboard switch actuation force
- SIM tray ejection durability
Testing Methodology
- Mount Fixture: Align connector via auto-centering mechanism
- Set Parameters: Force limits (0.01–100kg), speed (1–200mm/min)
- Initiate Test: Servo motor drives precise insertion/extraction
- Analyze: Software generates:
- Peak force values
- Life cycle decay graphs
- SPC statistics (Cp/Cpk)
Image Optimization
File Name: sunrise-1220s-insertion-force-tester.jpg
ALT Text: “1220S tester measuring USB-C connector insertion force with real-time graph”
Complete Package Includes
- Main unit with servo motor drive
- Standard fixture plates
- Load cells (2kg/5kg/20kg default)
- Optional: Impedance module, custom grippers
Software Capabilities
- Auto-generate IEC 60512-compliant reports
- Export force-time curves to Excel/PDF
- 10,000+ test data storage
Why Choose This Tester?
Lab-Grade Precision: ±0.5% load accuracy with Panasonic servo
R&D Flexible: Optional impedance module for concurrent electrical testing
Zero Downtime: No-lash ball screw design eliminates mechanical wear
After-Sales Support
- 18-month warranty on servo motor and load cell
- Free calibration with NIST traceability
- Remote software training sessions
Order Now
📞 +86 15992719785
📧 [email protected]
