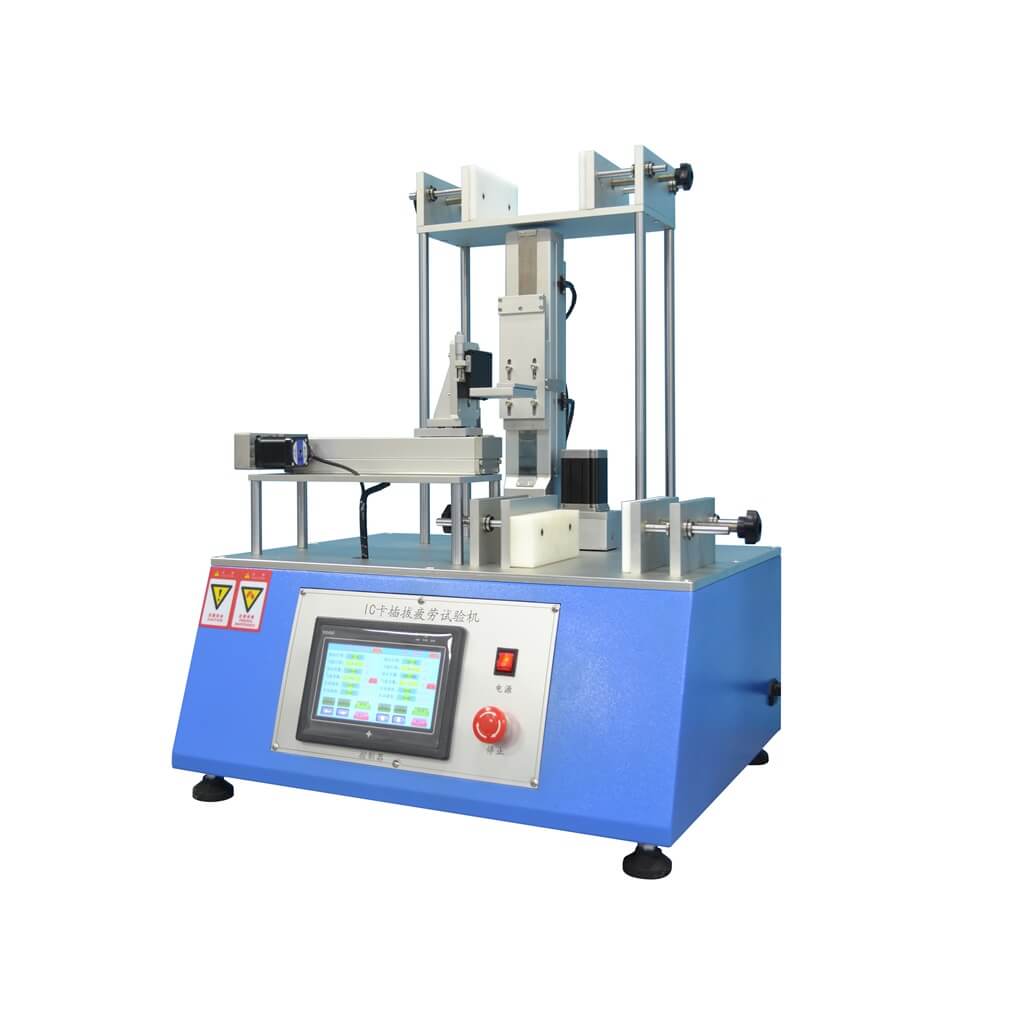

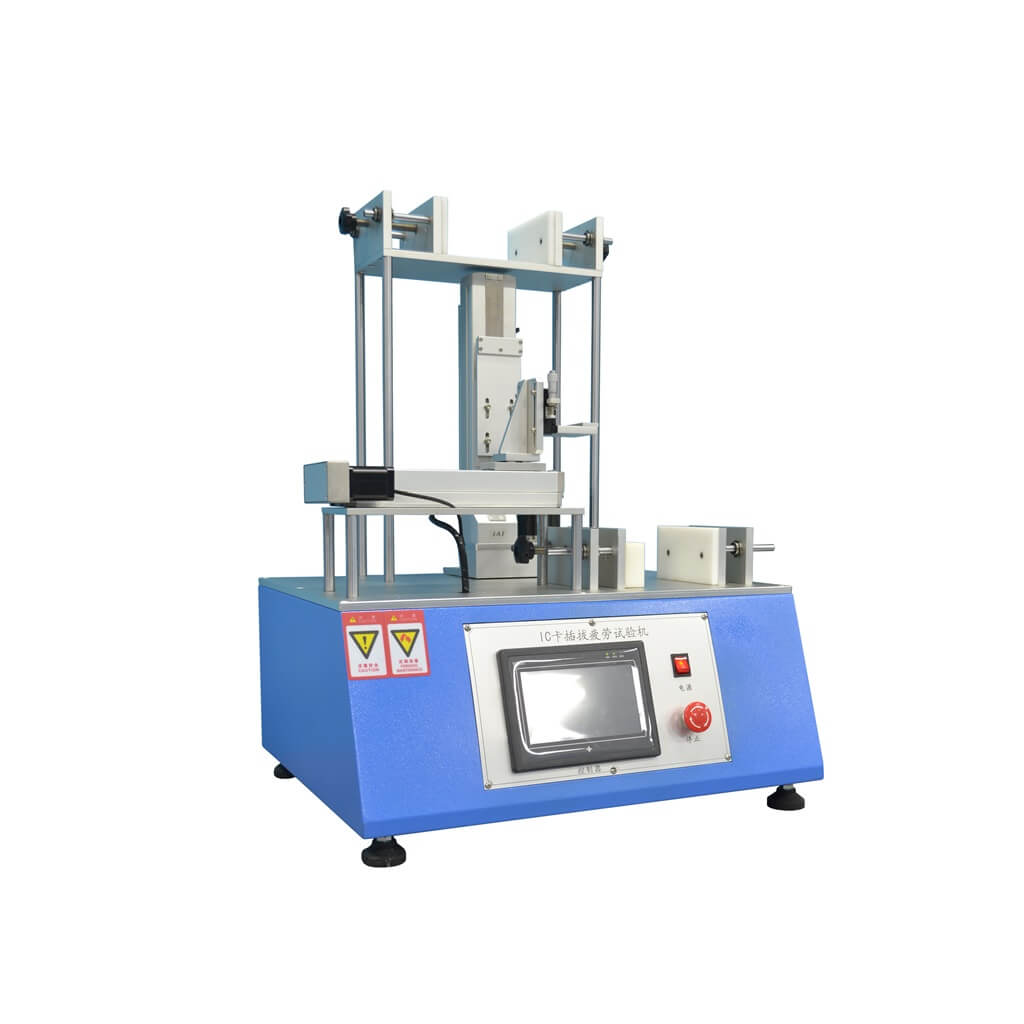

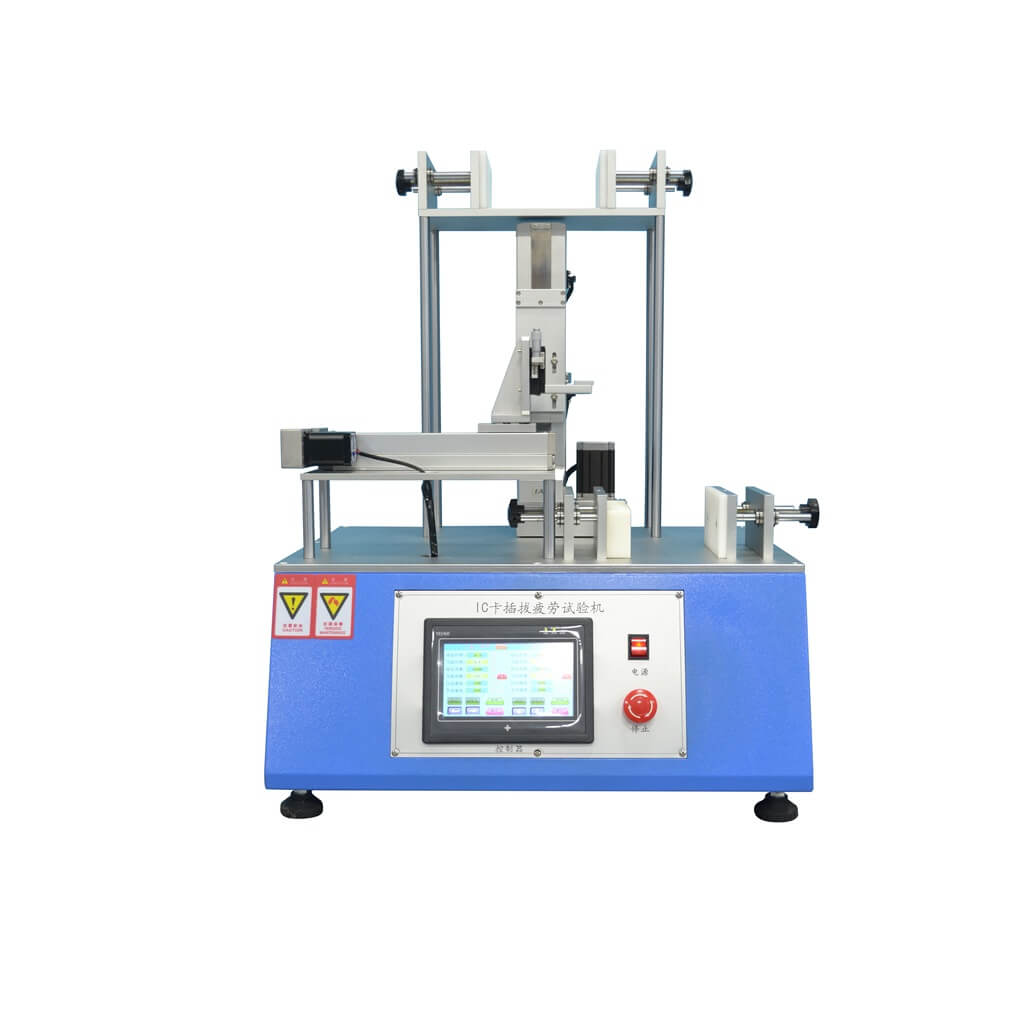

SR-216 IC Card Insertion Tester: The Ultimate Solution for Gas Meter Durability Testing
The SR-216 IC Card Insertion Tester is a cutting-edge solution designed specifically for evaluating the durability and reliability of gas meter IC card interfaces. This advanced testing machine performs accelerated life testing through dual-position validation (horizontal and vertical orientations), ensuring comprehensive assessment of card slot performance under real-world conditions.
Why Choose the SR-216 IC Card Tester?
With utility companies increasingly adopting smart metering systems, ensuring the long-term reliability of IC card interfaces has never been more critical. The SR-216 addresses this need with:
- Dual-position testing capability for complete interface validation
- 99,999,999-cycle endurance testing for long-term reliability assessment
- Precision touchscreen control for accurate test parameter adjustment
- Industrial-grade 304 stainless steel construction for maximum durability
Key Features of the SR-216 IC Card Tester
1. Dual-Position Testing Technology
Unlike conventional single-orientation testers, the SR-216 simultaneously evaluates:
- Horizontal insertion (common in wall-mounted meters)
- Vertical insertion (typical for floor-standing units)
This comprehensive approach ensures complete validation of card slot durability regardless of installation orientation.
2. High-Precision Test Control
- Adjustable speed: 5-40 insertions/minute (simulating various usage frequencies)
- Customizable stroke: 20-100mm range accommodates different card insertion depths
- Real-time monitoring: Touchscreen displays current cycle count and test status
3. Unmatched Durability Testing
- 99,999,999-cycle capacity for extended life testing
- SMC electric cylinder drive system ensures consistent performance
- <60dB operation for quiet laboratory environments
4. Industrial-Grade Construction
- 304 stainless steel frame resists corrosion in humid environments
- Modular design simplifies maintenance and part replacement
- Compact footprint (800×600×850mm) fits standard lab spaces
Technical Specifications
| Parameter | Specification |
|---|---|
| Test Speed | 5–40 cycles/minute |
| Stroke Range | 20–100mm (adjustable) |
| Counter Capacity | 0–99,999,999 cycles |
| Drive System | SMC electric cylinder + AC motor |
| Power | 220V (customizable) |
| Dimensions | 800×600×850mm |
| Weight | 60kg |
| Noise Level | <60dB |
Industry Applications
Utility Meter Validation
- Prepaid gas meter card slot durability
- Smart water/electricity meter interface testing
- Municipal utility compliance testing
Transportation Systems
- Toll card reader endurance validation
- EV charging card interface reliability
Access Control Systems
- Keycard system lifespan testing
- Biometric card reader durability
Testing Methodology
- Fixture Setup
- Secure gas meters in both horizontal and vertical test positions
- Connect to power and initialize touchscreen controller
- Parameter Configuration
- Set test speed (5-40 insertions/minute)
- Adjust stroke length (20-100mm)
- Program desired cycle count
- Test Execution
- Dual actuators simulate real-world card insertion
- Touchscreen displays real-time metrics for both orientations
- Results Analysis
- Post-test functional verification of meter interfaces
- Comparative analysis of horizontal vs. vertical wear patterns
Why the SR-216 Stands Out
Superior to Conventional Testers
Compared to basic single-position testers, the SR-216 offers:
✅ Comprehensive validation through dual-orientation testing
✅ Higher throughput with simultaneous horizontal/vertical testing
✅ More accurate results with industrial-grade components
Cost-Effective Solution
- Reduced testing time through parallel evaluation
- Lower maintenance costs with durable 304 stainless construction
- Longer service life thanks to premium SMC drive components
Complete Package Includes
- Main testing unit with dual-position actuators
- Standard gas meter mounting fixtures
- Multi-language touchscreen controller
- Power adapter (220V default)
- Comprehensive operation manual
After-Sales Support
- 24-month warranty on drive system and controller
- Priority technical support with 48-hour response guarantee
- Custom fixture design services available
- On-site training options for large orders
Order Your SR-216 IC Card Tester Today
📞 +86 15992719785
📧 [email protected]
