Precision Drop Testing for Consumer Electronics

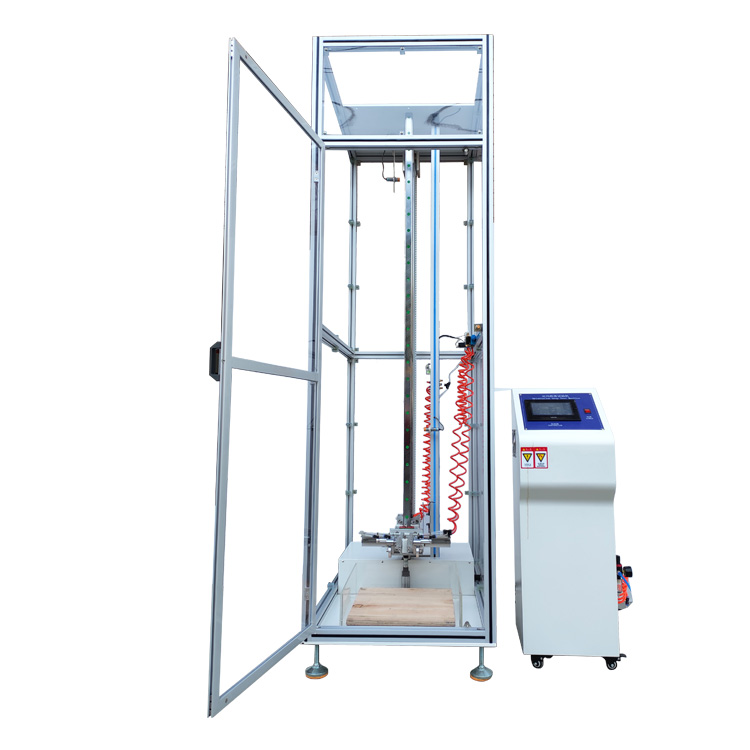

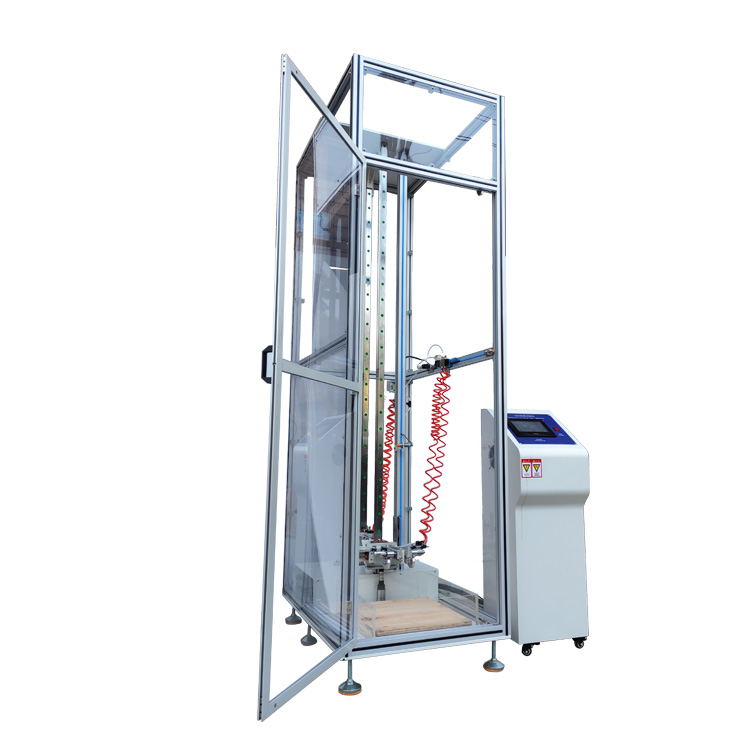

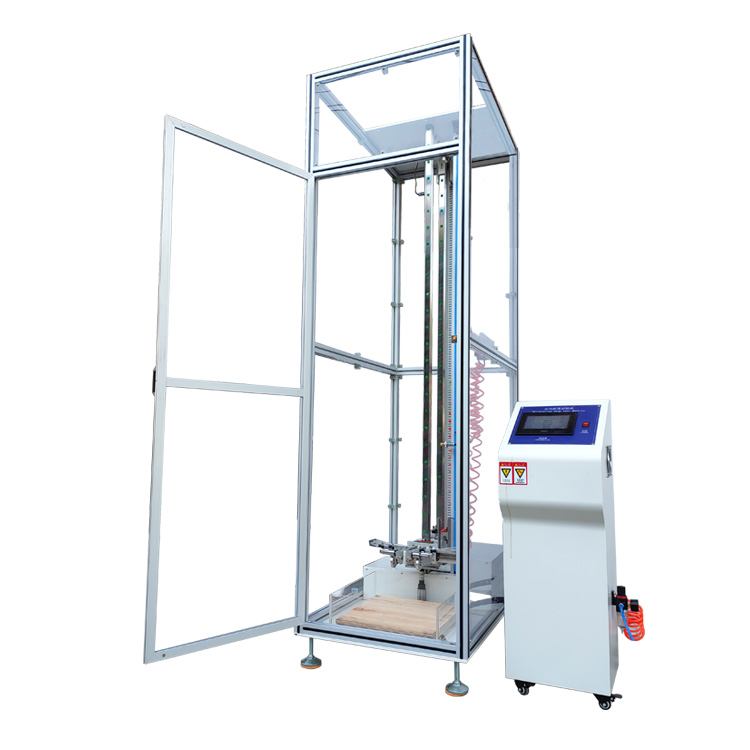

The SR-222 Directional Drop Tester by SUNRISE delivers laboratory-grade impact simulation, compliant with IEC 60068-2-32, GB/T 2423.8, and YD/T 1539-2006. This PLC-controlled system features Japan SMC pneumatic components and touchscreen operation for accurate multi-angle drop testing of mobile phones, batteries, and small electronics.
H2: Key Features of Our Directional Drop Tester
✔ Multi-Angle Testing: Vacuum suckers/clamps for edge, corner, and surface drops.
✔ Precision Control: Electric lift with screw drive (300–1800mm adjustable height).
✔ Automated Operation: Touchscreen + PLC for height setting, counting (0–999,999 tests).
✔ Standard Compliance: Validates to IEC, GB/T, JIS, and YD/T standards.
H3: Technical Specifications
| Parameter | Specification |
|---|---|
| Max. Test Height | 300–1500mm (1800mm customizable) |
| Max. Drop Weight | 2kg |
| Drop Media | Marble (standard), steel, acrylic, wood optional |
| Power Supply | AC220V 50Hz 3A / 110V 60Hz 6A |
| Machine Dimensions | 700×1000×2400mm (W×D×H) |
H2: Industry Applications
Consumer Electronics:
- Mobile phone durability testing (edge/corner drops)
- Battery impact resistance validation
Packaging:
- Protective material performance under free-fall conditions
Industrial Components:
- Small device shock resistance (e.g., sensors, adapters)
H3: Testing Methodology
- Mount sample using vacuum suckers or silicone clamps.
- Set parameters: Drop height, angle (0–360°), and count.
- Initiate test: Automated lift → release → data recording.
- Review results: Impact acceleration, max. landing speed (optional sensors).
Image Optimization
File Name: sunrise-sr222-directional-drop-tester.jpg
ALT Text: “SR-222 drop tester performing corner impact test on smartphone”
H2: Complete Package Includes
- Main testing unit with touchscreen
- Standard marble drop board (other materials optional)
- SMC vacuum suckers & silicone clamps
- Export-grade wooden case packaging
H3: Why Choose This Drop Tester?
- Regulatory Ready: Pre-configured modes for IEC/GB/T standards.
- Data Rich: Stores drop counts, height, and test history.
- Research Grade: Adjustable angle/height for R&D applications.
After-Sales Support
- 18-month warranty on pneumatic components
- Calibration service with traceable certification
- On-site training available
Order Your Drop Tester
📞 +86 15992719785
📧 [email protected]
