Comprehensive Product Impact Resistance Evaluation System

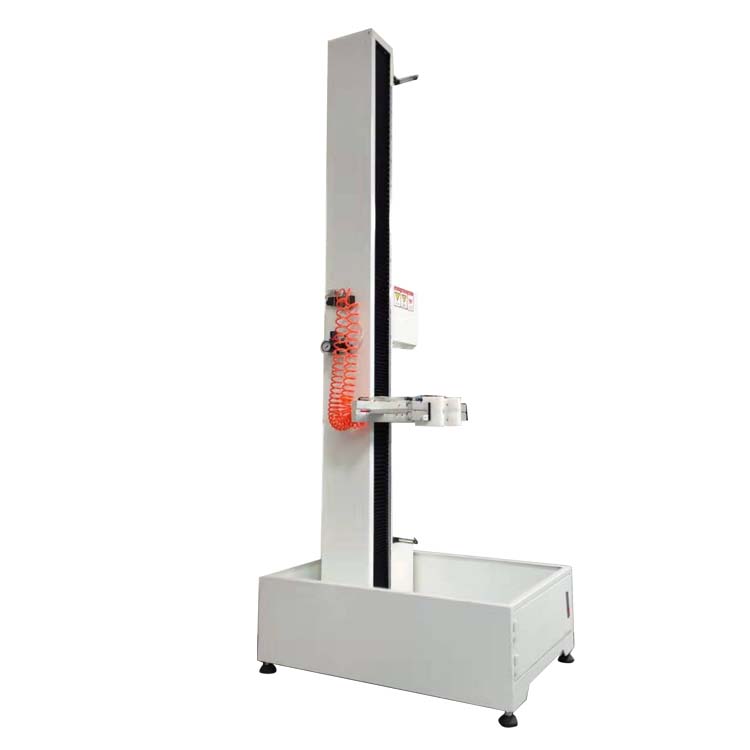

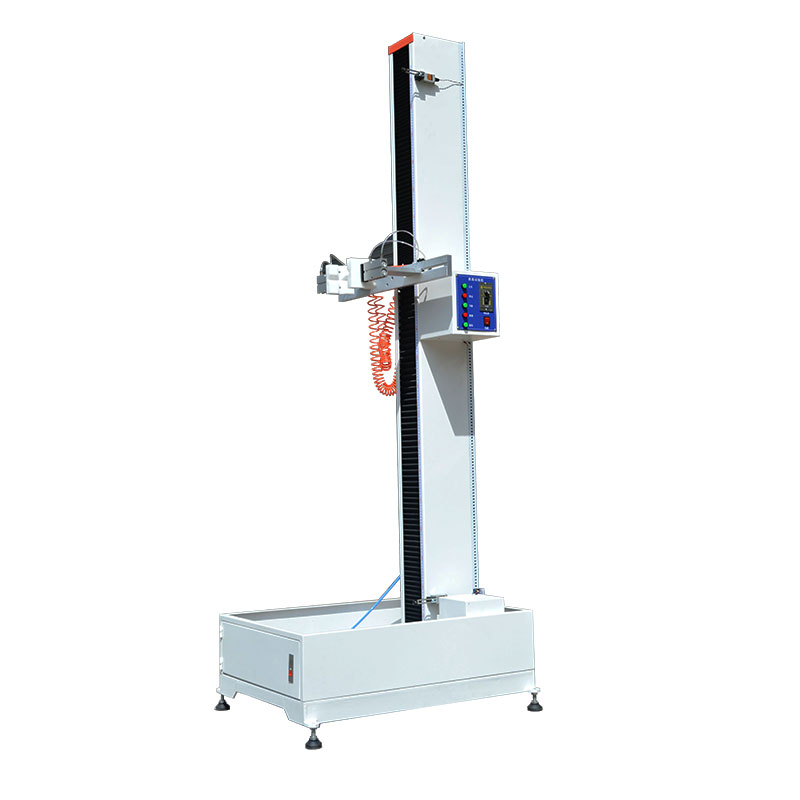

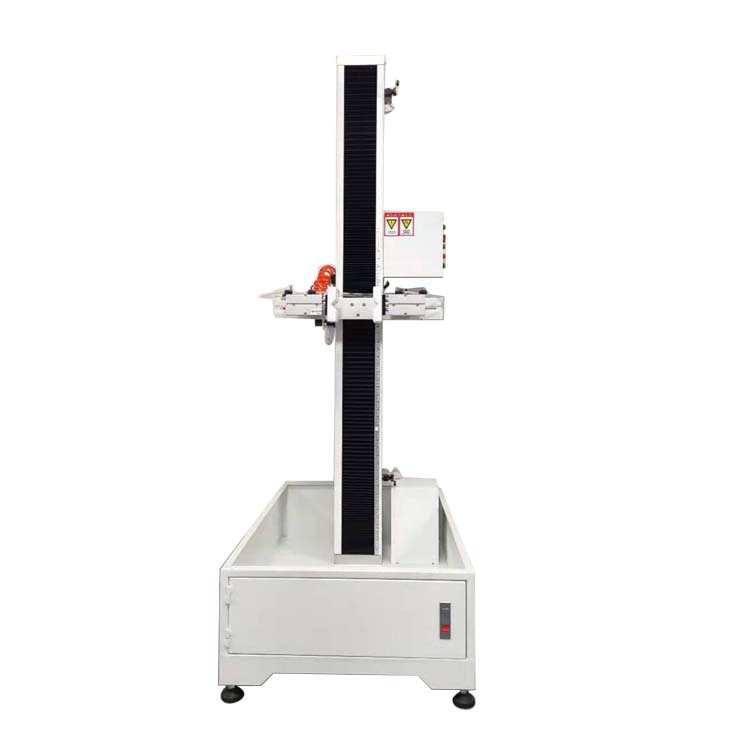

The SR-217 Free Drop Tester delivers laboratory-grade impact assessment through programmable multi-angle drops (face/edge/corner) from 1.5-2.0m height, featuring pneumatic sample release and precision height adjustment to validate product durability against 12+ international standards including GB, IEC, and UL requirements.
Key Testing Advantages
✔ Multi-Angle Impact Simulation
- 0° (flat), 45°, 90° (edge) programmable drops
- Face/edge/corner impact configurations
✔ Precision Drop Control
- Electric height adjustment (±1mm accuracy)
- Pneumatic release mechanism
✔ Standard-Compliant Testing
- GB/T 2423.8, IEC60068-2-32, UL1642 pre-configured
- Custom test protocols supported
✔ Universal Fixture System
- 10-120mm sample accommodation
- Silicone-protected pneumatic clamps
Technical Specifications
| Parameter | Specification | Testing Significance |
|---|---|---|
| Max Sample Weight | 5kg (±100g) | Covers most mobile devices |
| Drop Height | 1.5-2.0m (customizable) | Simulates real-world drops |
| Impact Surfaces | Steel/acrylic/wood/marble | Various hardness simulations |
| Drop Angles | 0°/45°/90° | Comprehensive failure analysis |
| Height Adjustment | Motorized screw drive | Precise repeatability |
| Dimensions | 1200×800×2500mm | Industrial-grade construction |
Advanced Testing Capabilities
1. Impact Surface Options
- A3 Steel Plate: Standardized hardness (HRC 50-55)
- Acrylic Plate: Transparent observation surface
- Marble Plate: Ultra-hard material testing
- Wooden Plate: Energy absorption simulation
2. Automated Test Sequences
- Programmable multi-height tests
- Batch mode for statistical analysis
- Automatic fail detection
3. Safety Systems
- Emergency stop function
- Protective safety cage
- Anti-rebound mechanism
Complete Testing Workflow
- Sample Preparation
- Secure device in pneumatic fixture
- Select impact surface
- Test Configuration
- Set drop height (1.5-2.0m)
- Program impact angle
- Test Execution
- Automated lift and release
- High-speed impact recording
- Post-Test Evaluation
- Visual inspection per GB 18287
- Functional verification
- Internal disassembly check
Why Choose SR-217?
Competitive Advantages
- More angles than basic drop testers
- More precise than manual drop methods
- More efficient than single-height testers
Included Package
- Main test unit with safety cage
- Standard steel impact plate
- Pneumatic sample fixture
- Operation manual
Request Compliance Testing Consultation
📞 +86 15992719785
📧 [email protected]
