Dual-Action Strap Durability Testing

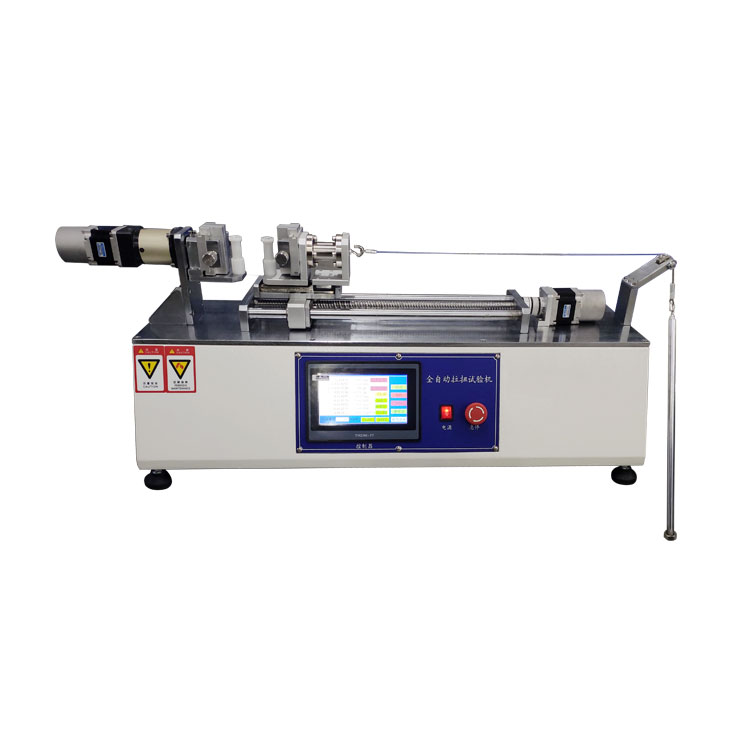

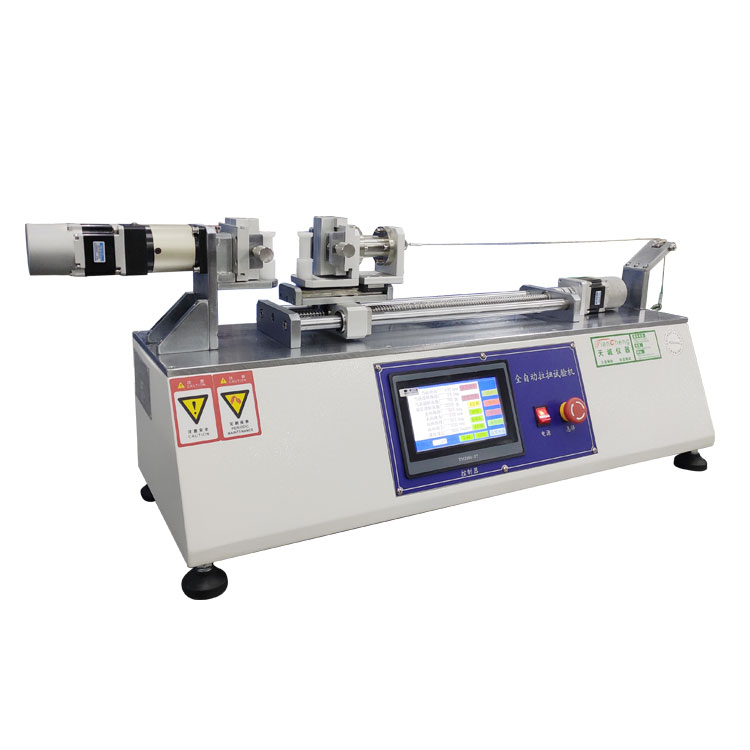

The SUNRISE SR-229 combines tensile (400mm) and torsional (10N·m) forces to validate watchbands, wearable straps, and flexible electronics under real-world stresses. With ±0.1° angle precision, it meets ISO 22810:2010 standards.

H2: Key Features

✔ Dual-Action Testing: Simultaneous tension + torsion (1-60 cycles/min)
✔ Micro-Precision: ±0.1° angle / ±0.1% torque accuracy (servo motor + ball screw)
✔ Customizable Stresses: Adjustable dwell time (1s-5min) at peak torque
✔ OEM Ready: Pre-loaded Garmin/Fitbit test protocols

H3: Technical Specifications

H2: Compliance & Applications

Standards:

• ISO 22810:2010 (Horology – Water-resistant watches)
• MIL-STD-810H Method 514.7 (Vibration)

Use Cases:

• Smartwatch band lifecycle testing
• Fitness tracker strap validation
• Flexible PCB endurance evaluation

H3: Testing Workflow

1. Mount strap in universal fixtures (adjustable clamps)
2. Program parameters:
   • Torque: 5N·m (default for metal watchbands)
   • Dwell time: 30s at max torsion
3. Initiate test: Real-time torque/angle graphing
4. Evaluate: Post-test material fatigue analysis

Visual Assets

Image File: sunrise-sr229-strap-tester-operation.jpg
ALT Text: “SR-229 performing simultaneous tension-torsion test on smartwatch band”

UI Screenshots:

• Bilingual (EN/CN) touchscreen interface
• Emergency stop function highlighted

H2: Package Contents

• Main unit with servo motor drive
• Standard砝码 (1kg/2kg/5kg weights)
• 7″ multilingual touchscreen
• ISO 22810 compliance certificate

H3: SUNRISE Advantages

• Data-Rich: Export stress-strain curves via USB
• Silent Operation: <50dB noise level
• Future-Proof: Firmware upgradable for new standards

After-Sales Support

• 3-year ball screw warranty
• Free on-site calibration (ISO 17025)
• Strap testing methodology guide

Order Information

📱 Jess (Sales): +86 15992719785 (WeChat/Phone)
✉ Email: [email protected]
🌐 Website: www.sunrisedg.com
