Precision Touchscreen Durability Evaluation System

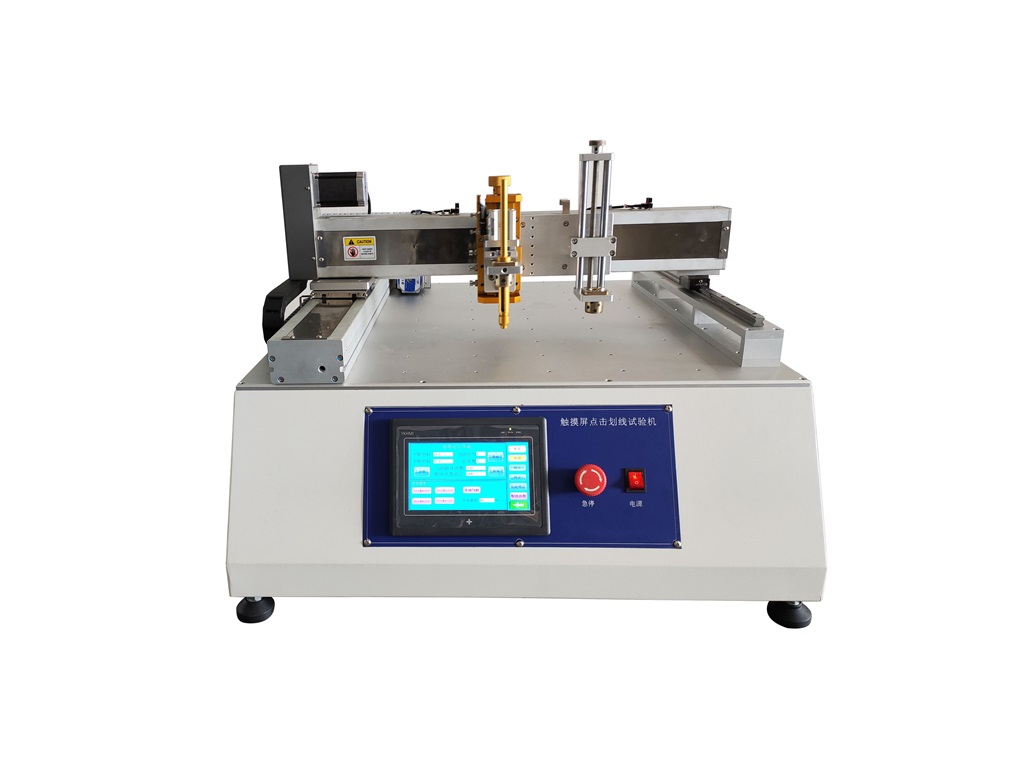

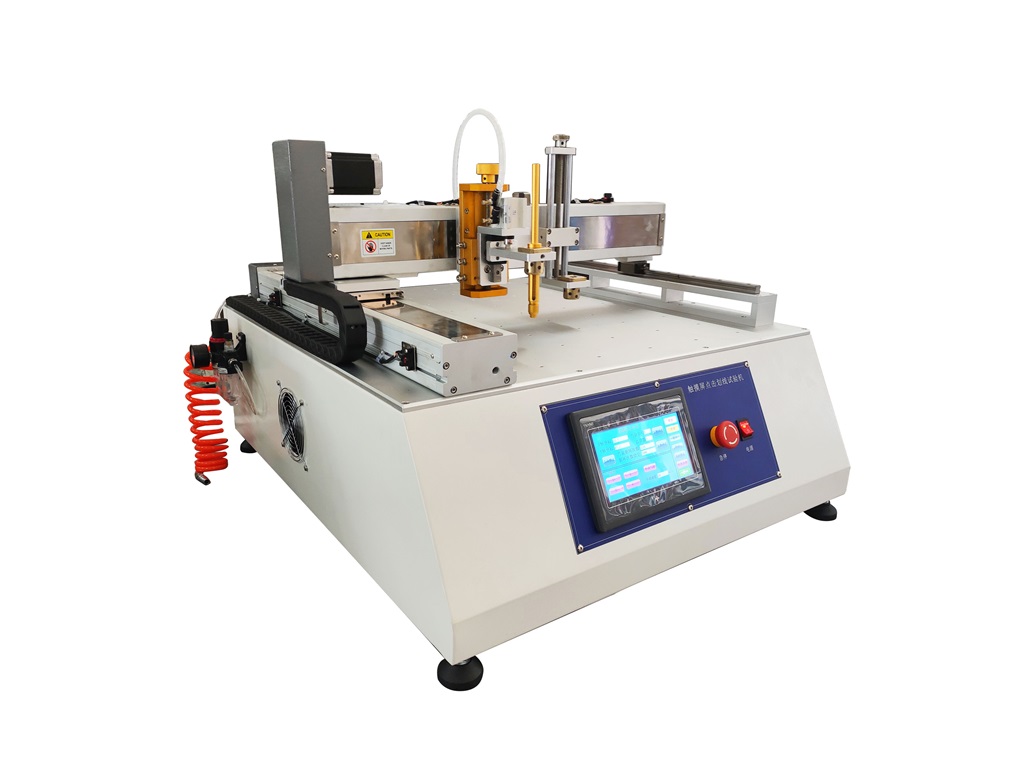

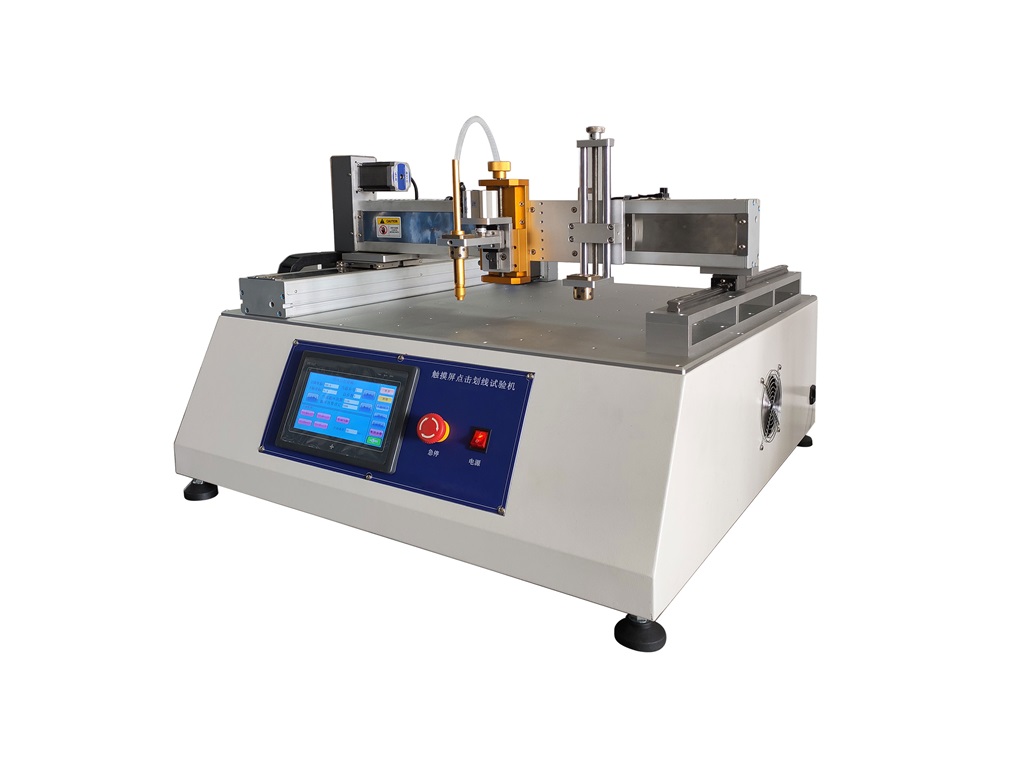

The SR-207A Touchscreen Click & Scratch Tester is an advanced testing solution designed specifically for evaluating the mechanical durability of touchscreen displays. This system combines 300×300mm testing range with 0.05mm positioning accuracy to simulate real-world usage patterns for:

• Smartphones and tablets
• Automotive infotainment systems
• Industrial control panels
• Medical device touchscreens
• Wearable device displays

Key Technological Advantages

1. Programmable Motion Control
   • Generates circles, triangles, and rectangles from 2-4 reference points
   • Stores custom patterns for repeated testing
   • Adjustable speed (30-3000mm/min)
2. Precision Mechanical System
   • Stepper motors with ball screw drives
   • Linear guide rails for smooth operation
   • Anodized aluminum frame (80kg)
3. Comprehensive Testing Modes
   • Multi-point click testing (0-800gf)
   • Continuous scratch testing
   • Pattern durability evaluation

Technical Specifications

Mechanical Parameters

Control System

Testing Capabilities

1. Pattern Generation

• Circle Drawing: Define with 3 points
• Line Drawing: Connect 2 points
• Rectangle Drawing: Mark 4 corners
• Custom Trajectories: Store unlimited patterns

2. Durability Testing

• Click Testing:
  • Programmable force (0-800gf)
  • Adjustable strike frequency
• Scratch Testing:
  • Continuous path evaluation
  • Multi-cycle endurance testing

3. Real-time Monitoring

• Current XY position display
• Movement speed tracking
• Force application monitoring

Industry Applications

Consumer Electronics

• Smartphone touchscreen longevity
• Tablet display scratch resistance
• Smartwatch touch sensitivity

Automotive Components

• Center console touch durability
• Heads-up display performance
• Climate control panel testing

Industrial Equipment

• Control panel endurance
• ATM touchscreen reliability
• Kiosk display validation

Why Choose SR-207A?

Competitive Advantages

1. Higher Efficiency
   • 5x faster than manual testing
   • Unattended operation capability
2. Superior Precision
   • 0.05mm positioning accuracy
   • Consistent force application
3. Cost-Effective Solution
   • Lower price than competitors
   • Minimal maintenance required
4. User-Friendly Design
   • Simple programming interface
   • Compact footprint

Complete Package Includes

1. Main test unit with touchscreen
2. Standard testing stylus
3. Power cable and accessories
4. Operation manual
5. Optional: Custom fixtures

After-Sales Support

• 12-month warranty
• Lifetime technical support
• Free software updates
• On-site training available

Order Information

Lead Time: 2-3 weeks
Payment Terms: T/T, LC
Shipping: Global logistics support
