High-Throughput Keypad Durability Testing System

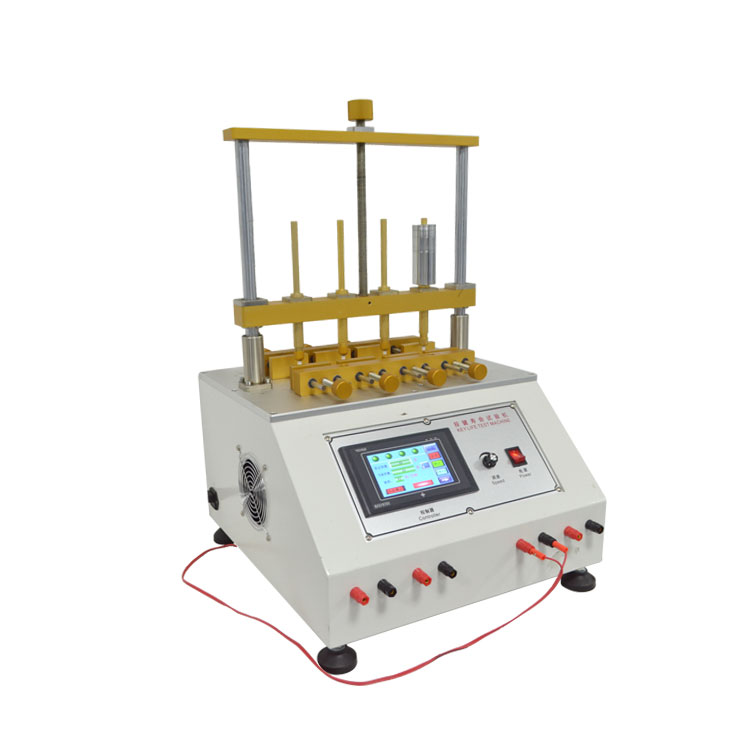

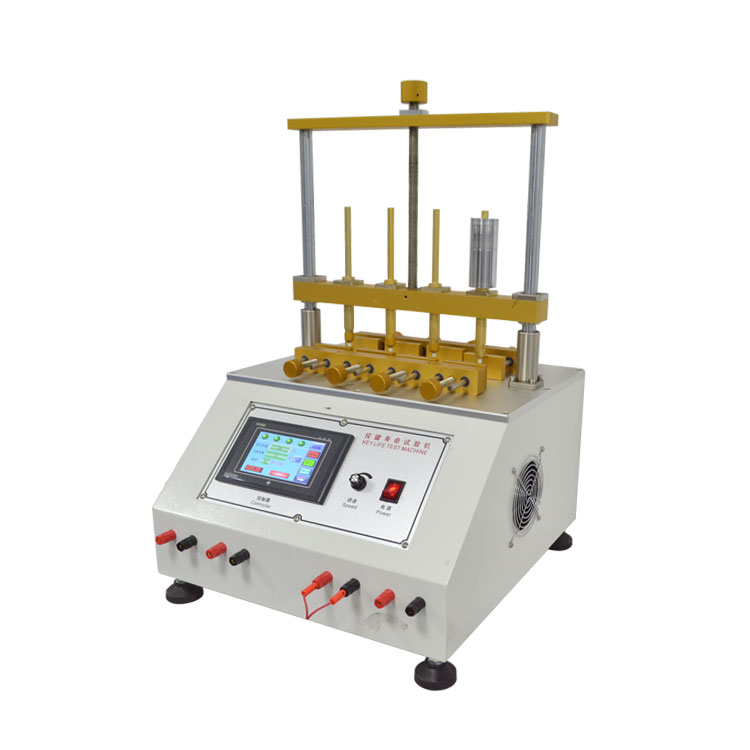

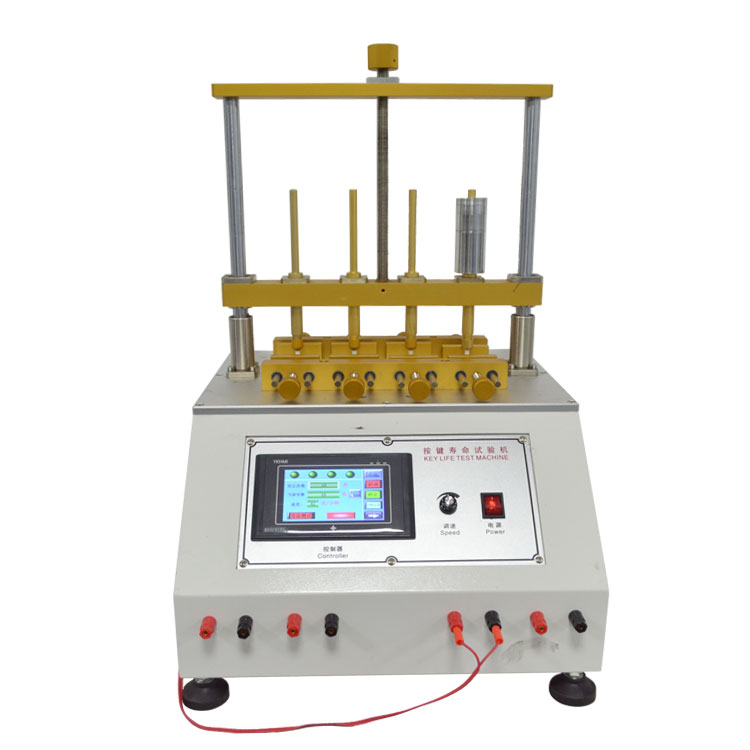

The SR-208F 4-Station Key Life Tester revolutionizes production-line quality control with simultaneous testing of four units, featuring automatic conduction counting and 0-500g adjustable weights for comprehensive key/switch validation.
Key Testing Advantages
✔ Quad-Station Efficiency
- Tests 4 products simultaneously (60×100mm each)
- 300% faster than single-station testers
✔ Smart Failure Detection
- Independent conduction counters per station
- Auto-stops counting at contact failure
✔ Precision Control
- 0-60 presses/minute speed adjustment
- 0-10mm customizable stroke
✔ Wide Compatibility
- 10-500g modular weights (6 options)
- Adjustable fixtures for various key types
Technical Specifications
| Parameter | Specification | Quality Benefit |
|---|---|---|
| Test Stations | 4 independent units | Maximizes testing throughput |
| Load Options | 10/20/50/100/200/500g | Simulates realistic keypress forces |
| Max Cycles | 99,999,999 per counter | Validates decade-long use |
| Test Speed | 0-60 cycles/minute | Adjusts for different standards |
| Stroke Range | 0-10mm adjustable | Accommodates all key travels |
| Dimensions | 500×550×750mm | Compact production-line design |
Industry-Leading Features
1. Conduction Monitoring System
- Real-time contact resistance tracking
- Automatic failure detection and logging
- Independent counters for each station
2. Ergonomic Design
- Electrostatic spray-coated steel frame
- Intuitive rotary speed control
- Clear LED cycle displays
3. Universal Fixture System
- 60×100mm adjustable clamping area
- Quick-change test probes
- Compatible with all key shapes
Target Applications
Consumer Electronics
- Smartphone volume/power buttons
- Bluetooth headset controls
Automotive Components
- Infotainment system buttons
- Climate control switches
Industrial Equipment
- Membrane panel validation
- Control board switch testing
Complete Package Includes
- Main test unit with 4 stations
- Full weight set (24 pieces total)
- Standard test fixtures
- Operation manual
Request Custom Configuration
📞 +86 15992719785
📧 [email protected]
