Real-World Impact Simulation for Mobile Devices

The SR-219 Drum Drop Tester replicates repeated free-fall scenarios (up to 1,000mm height) to evaluate structural integrity of phones, PDAs, and compact electronics. Complies with IEC 60068-2-32 and GB/T 2324.8 standards.

H2: Key Features

✔ Dual-Height Testing: 500mm (standard) or 1000mm (extended) drop height
✔ High Throughput: 20 drops/minute with programmable count (1-999,999)
✔ True Randomization: 275mm drum ensures natural impact angles
✔ Upgrade Option: Touchscreen control panel (button control standard)

H3: Technical Specifications

H2: Testing Applications

Mobile Devices:

• Smartphone housing durability validation
• PDA/internal component impact resistance

Quality Assurance:

• Batch testing for EN/IEC certification
• Protective case performance evaluation

H3: Testing Process

1. Load sample into drum & secure transparent cover
2. Set parameters: Drop count (1-999,999), speed (5-20 RPM)
3. Initiate test: Motorized rotation → randomized drops
4. Review results: Auto-stop at preset count with alert

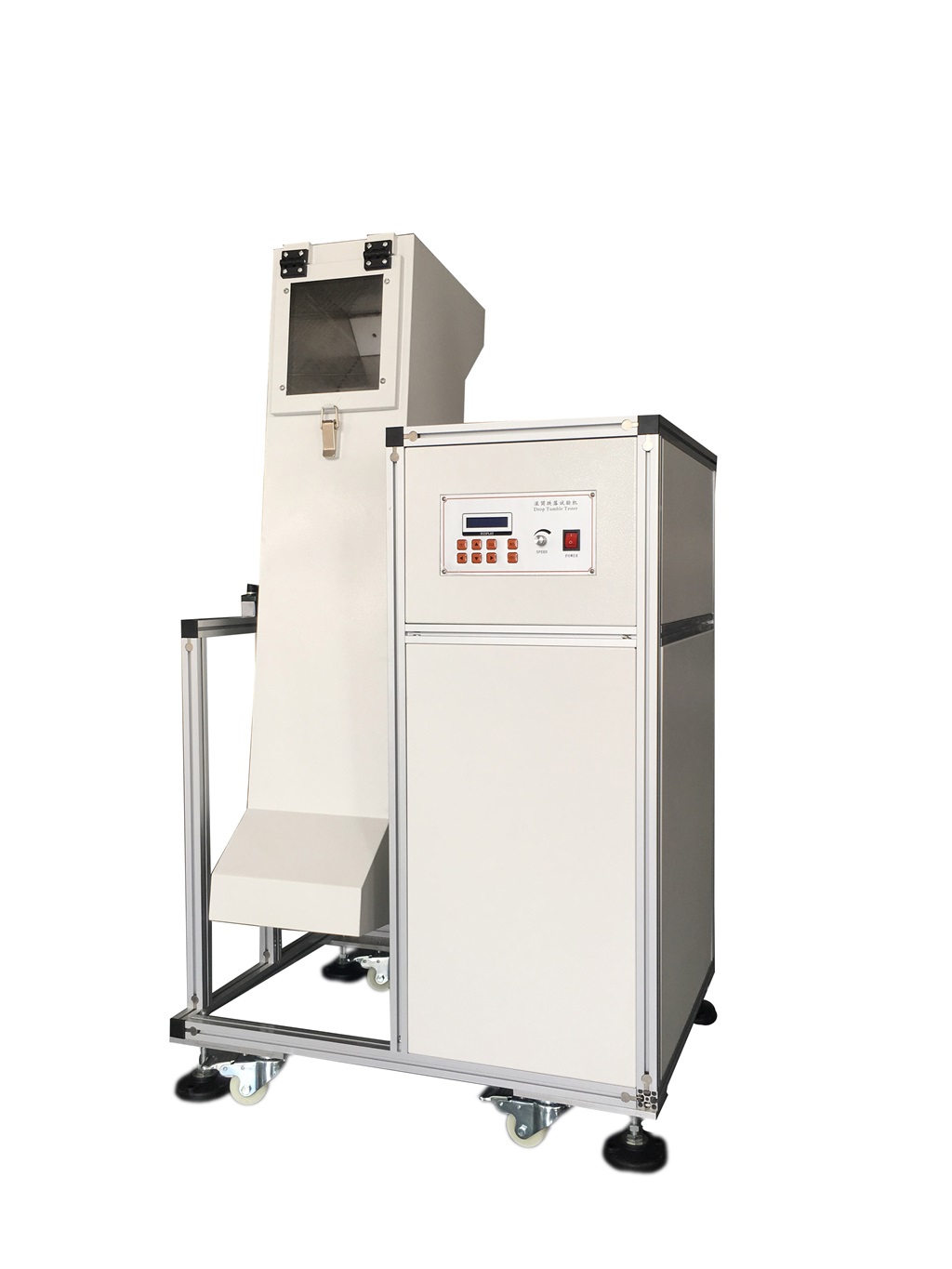

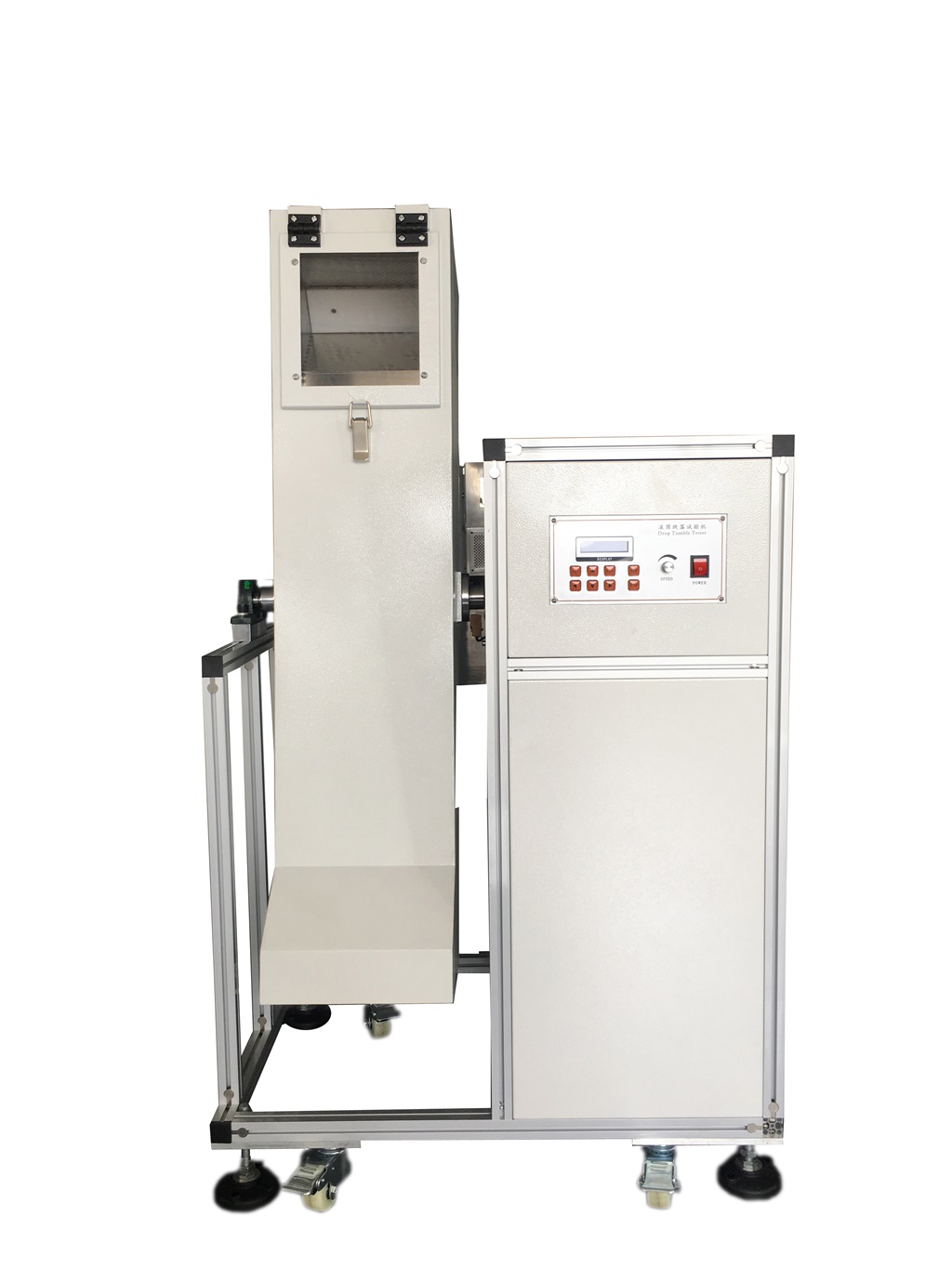

ALT Text: “DZ-219 drum drop tester performing phone durability test at 1m height”

H2: Package Contents

• Main testing unit with motorized drum
• Standard 500mm height configuration (1m upgradeable)
• Transparent safety cover
• IEC 60068-2-32 test protocol guide

H3: Why This Tester?

• Certification Ready: Pre-configured for IEC/GB standards
• Engineering Insight: Reveals weak points via multi-angle impacts
• Production Scale: Tests 20 samples/minute for batch QA

After-Sales Support

• 18-month motor warranty
• Calibration with NIST-traceable certification
• On-site training for compliance testing
