Precision Force Measurement for Connector Reliability

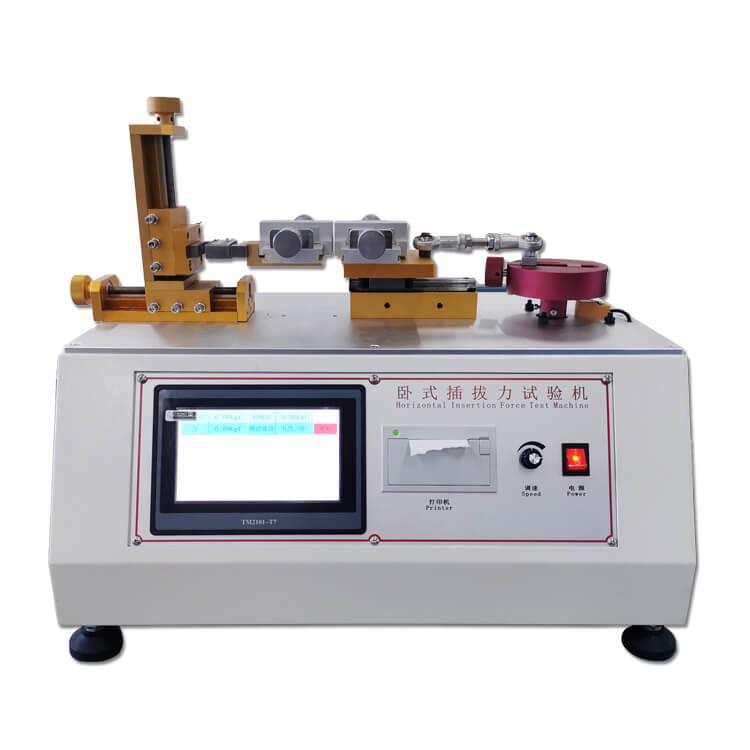

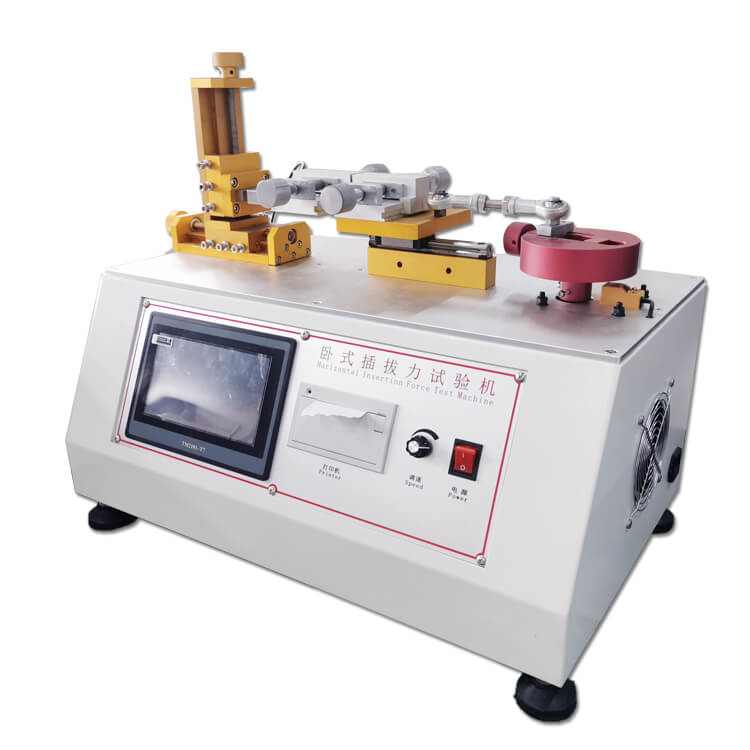

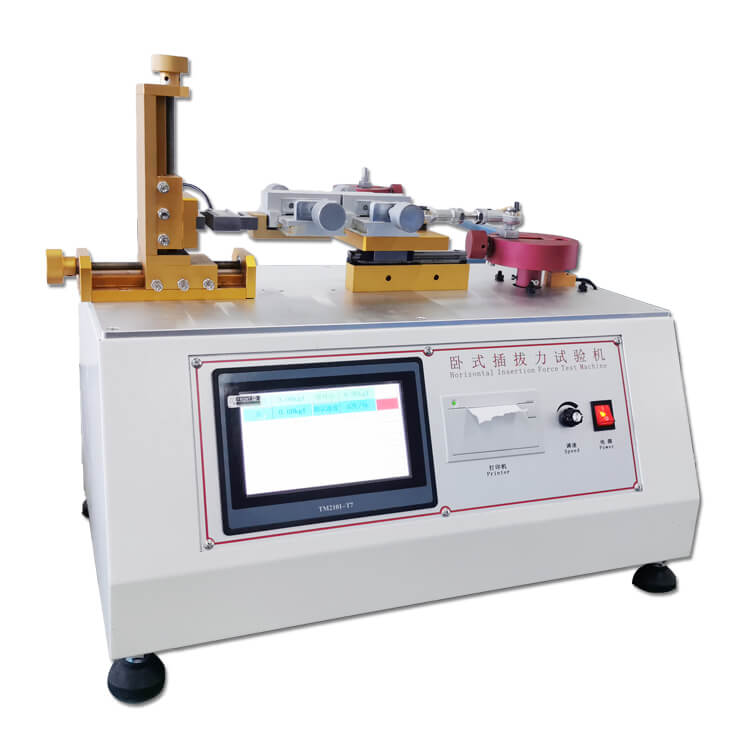

The SR-214 Horizontal Insertion Force Tester combines 50kgf load capacity with 0.01kg resolution to evaluate connector mating performance. Its touchscreen interface displays real-time force curves while complying with EIA-364-13/09 standards – perfect for USB ports, automotive harnesses, and medical device connectors.

Key Features

✔ Smart Touchscreen: 7″ LCD with intuitive force/speed/stroke controls
✔ Dual-Force Analysis: Measures insertion AND withdrawal forces simultaneously
✔ High-Cycle Testing: 999,999-cycle counter for endurance validation
✔ Standard Ready: Pre-loaded EIA-364 test protocols
✔ Compact Design: 500×450×350mm footprint fits lab benches

Technical Specifications

Industry Applications

Consumer Electronics:

• USB4/Thunderbolt connector validation
• Laptop docking station durability

Automotive:

• EV charging port mating force
• In-cabin entertainment connectors

Medical Devices:

• Endoscope connector reliability
• Implantable device socket testing

Model Comparison

Image Optimization

File Name: sunrise-sr214-touchscreen-force-tester.jpg
ALT Text: “SR-214 touchscreen displaying USB-C connector insertion force curve”

Complete Package Includes

• Main unit with touchscreen controller
• Standard fixture set
• Power adapter (220V/50Hz)
• Quick-start guide

Why Customers Choose SR-214

Lab-to-Factory Ready: Touchscreen simplifies operator training
Data-Rich: Stores 500+ test results with timestamps
Future-Proof: Compatible with custom fixtures for proprietary connectors

After-Sales Support

• 18-month warranty on load cell
• Free EIA-364 test templates
• Video-conference troubleshooting
