High-Cycle Connector Durability Testing

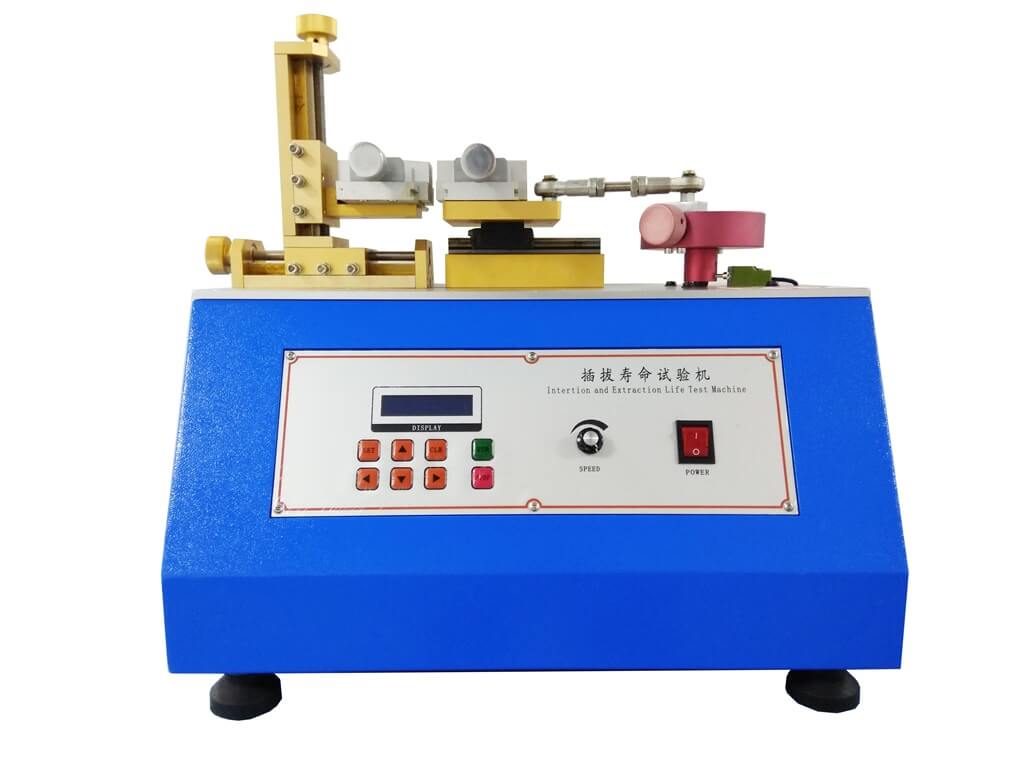

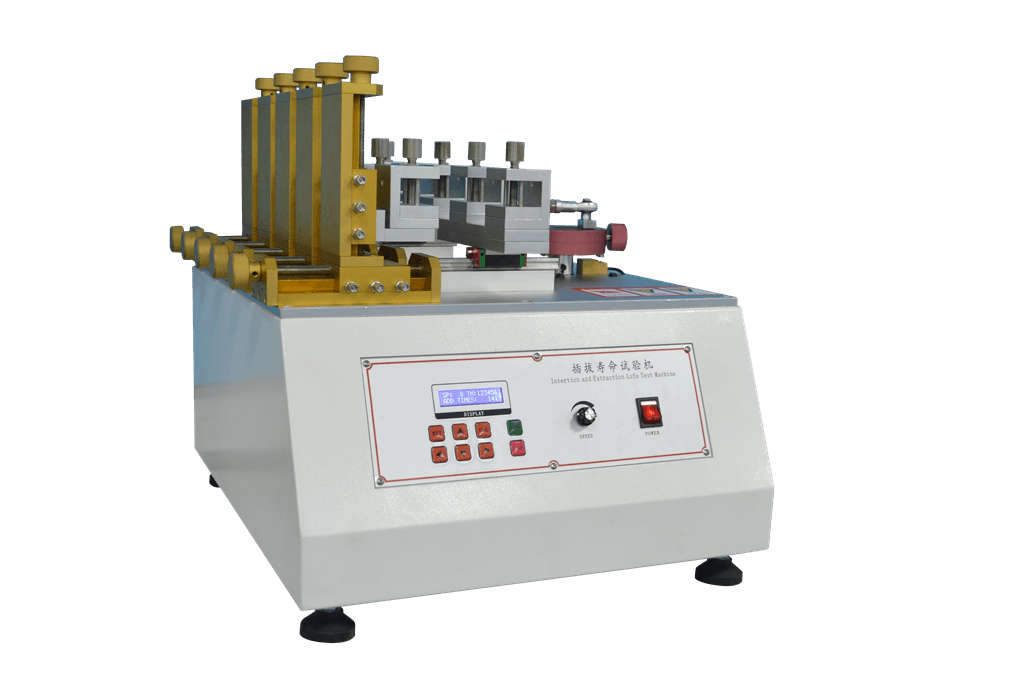

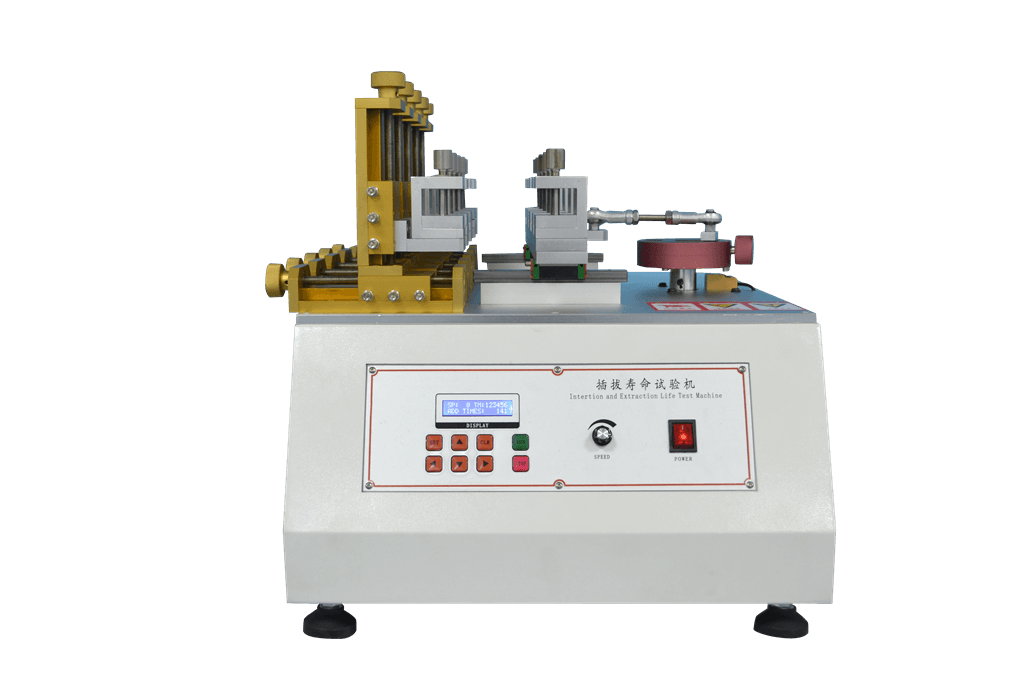

The SR-213 Horizontal Plug Life Test Machine evaluates mating endurance of connectors with 0-999,999 test cycles and 0.01kg force resolution. Compliant with IEC 60884, its rotating eccentric mechanism ensures consistent speed (0-60/min) regardless of stroke length (0-50mm), making it ideal for USB ports, power sockets, and automotive connectors.

Key Features

✔ Longevity Testing: 999,999-cycle counter for extreme durability validation
✔ Precision Control: 0.01kg force resolution with auto-zeroing
✔ Flexible Configuration: Adjustable speed (0-60/min) and stroke (0-50mm)
✔ Real-Time Monitoring: LED displays speed, cycle count, and force (N/kg)
✔ Compact Design: 550×470×450mm footprint for bench-top use

Technical Specifications

Industry Applications

Consumer Electronics:

• USB-C/Micro-USB port lifespan testing
• Laptop charging socket durability

Electrical Components:

• IEC power plug/socket mating cycles
• Automotive wire harness connector endurance

Medical Devices:

• ECG lead connector insertion fatigue
• IV port repeated-use validation

Model Comparison

Image Optimization

File Name: sunrise-sr213-horizontal-insertion-tester.jpg
ALT Text: “SR-213 testing USB-C connector durability with LED cycle counter”

Complete Package Includes

• Main test unit with eccentric drive
• Standard fixture plates
• Power adapter (220V/50Hz)
• Operation manual

Why Choose This Tester?

Cost-Effective: Reliable performance for high-volume cycle testing
Low Maintenance: Eccentric mechanism reduces wear vs. servo systems
IEC Ready: Pre-configured for IEC 60884 plug/socket standards

After-Sales Support

• 12-month warranty on mechanical components
• Lifetime technical assistance
