Precision Flex Testing for Flexible Circuits

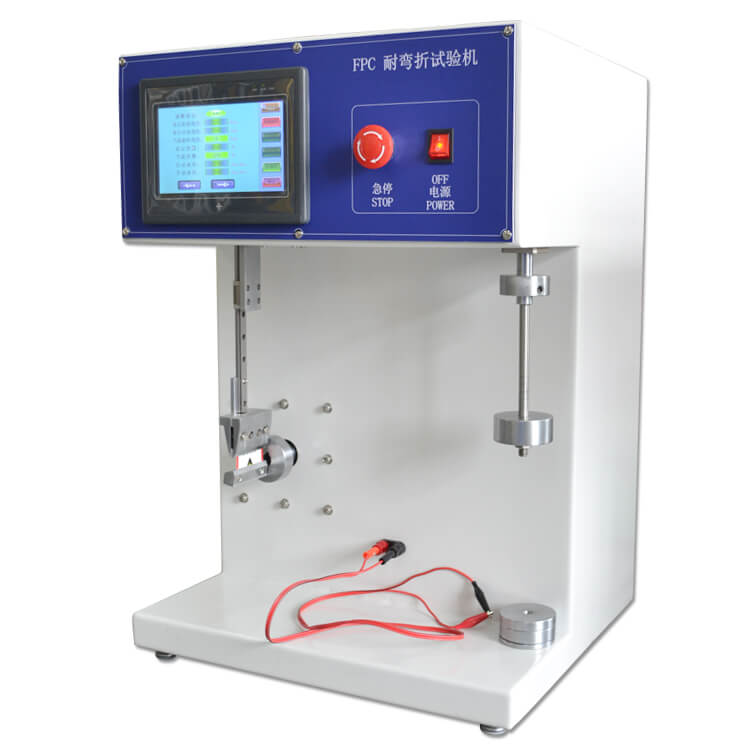

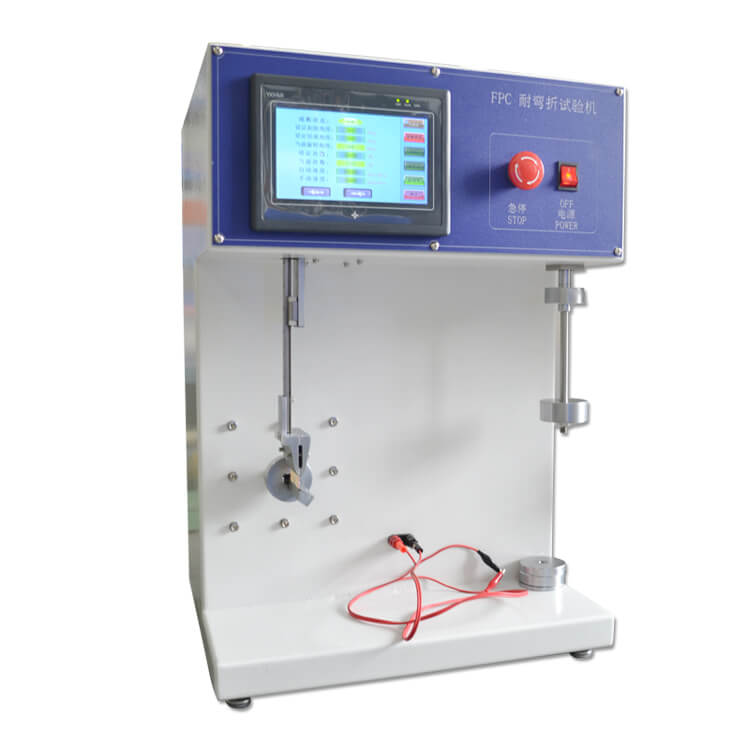

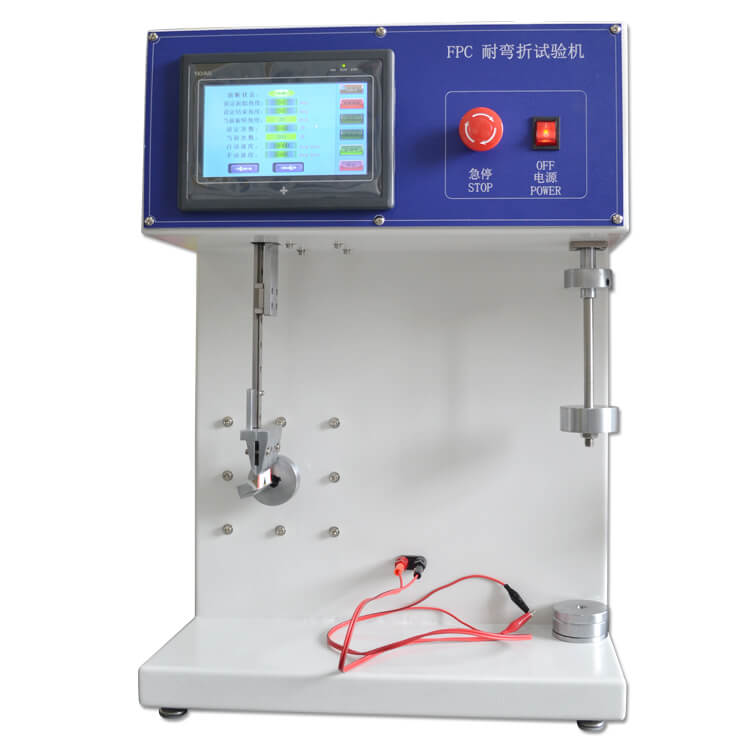

The SUNRISE SR-627 evaluates FPC/PCB flex endurance through 150° bending at 120 cycles/minute, with automatic break detection when circuit continuity fails. Validates foldable displays, wearable electronics, and flexible interconnects.

H2: Key Features

✔ High-Speed Testing: 120 flex cycles/minute (servo motor driven)
✔ Smart Detection: Auto-stop at circuit break (999,999-cycle capacity)
✔ Micro-Precision: ±0.5° angle repeatability
✔ OEM Ready: Pre-set modes for Samsung/Xiaomi FPC specs

H3: Technical Specifications

H2: Compliance & Applications

Standards:

• IPC-TM-650 Method 2.4.3 (Flexural Endurance)
• IEC 61215-2:2016 (Thin-film PV module bending)

Use Cases:

• Foldable phone hinge FPC validation
• Smartwatch flexible PCB lifecycle
• Automotive curved display testing

H3: Testing Workflow

1. Mount FPC in dual-clamp fixture (60mm max width)
2. Program parameters:
   • Angle: 90° (default for wearables)
   • Speed: 60 cycles/minute
3. Initiate test: Continuity-monitored bending
4. Evaluate: Automatic stop at break + cycle count recorded

Visual Assets

Image File: sunrise-sr627-fpc-flex-test.jpg
ALT Text: “SR-627 performing 150° flex test on foldable phone FPC”

UI Highlights:

• Real-time cycle count display
• Emergency stop button

H2: Package Contents

• Main unit with servo motor drive
• Upper/lower flex fixtures (60mm capacity)
• 4 test weights (1N/2N/3N/5N)
• IPC compliance certificate

H3: SUNRISE Advantages

• Space-Saving: 45kg compact design (450×380mm)
• Data Export: USB connectivity for failure analysis
• Silent Operation: <55dB for lab environments

After-Sales Support

• 2-year motor warranty
• Free flex test protocol guide
• On-site calibration service
