Precision Hinge Fatigue Testing for Laptops

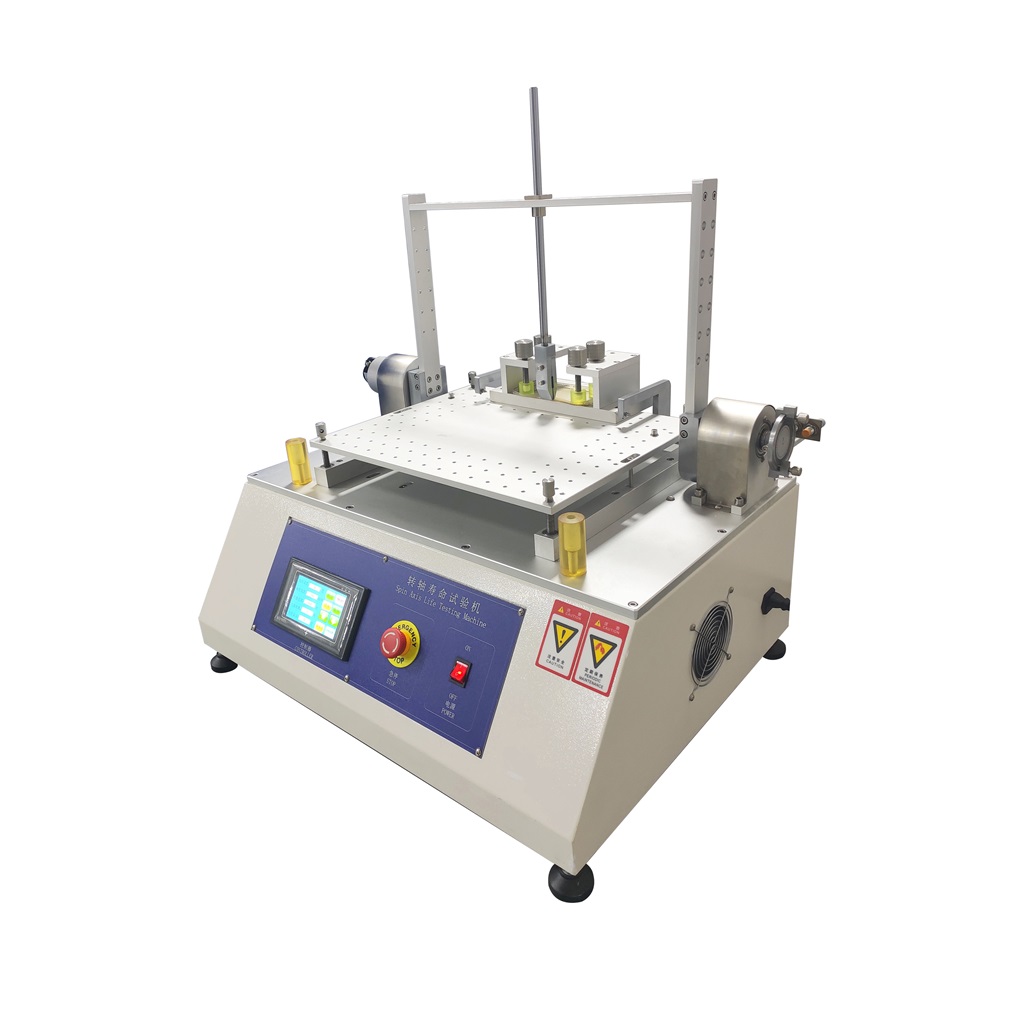

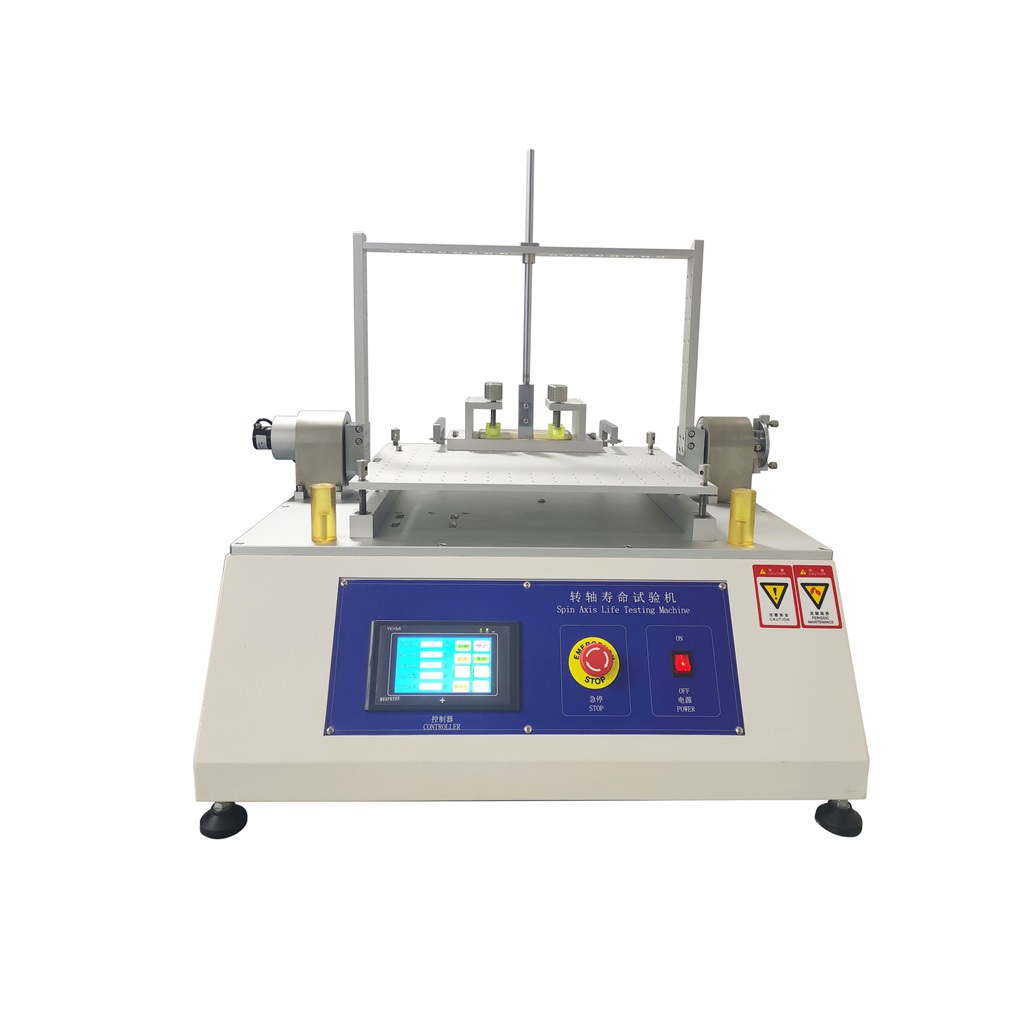

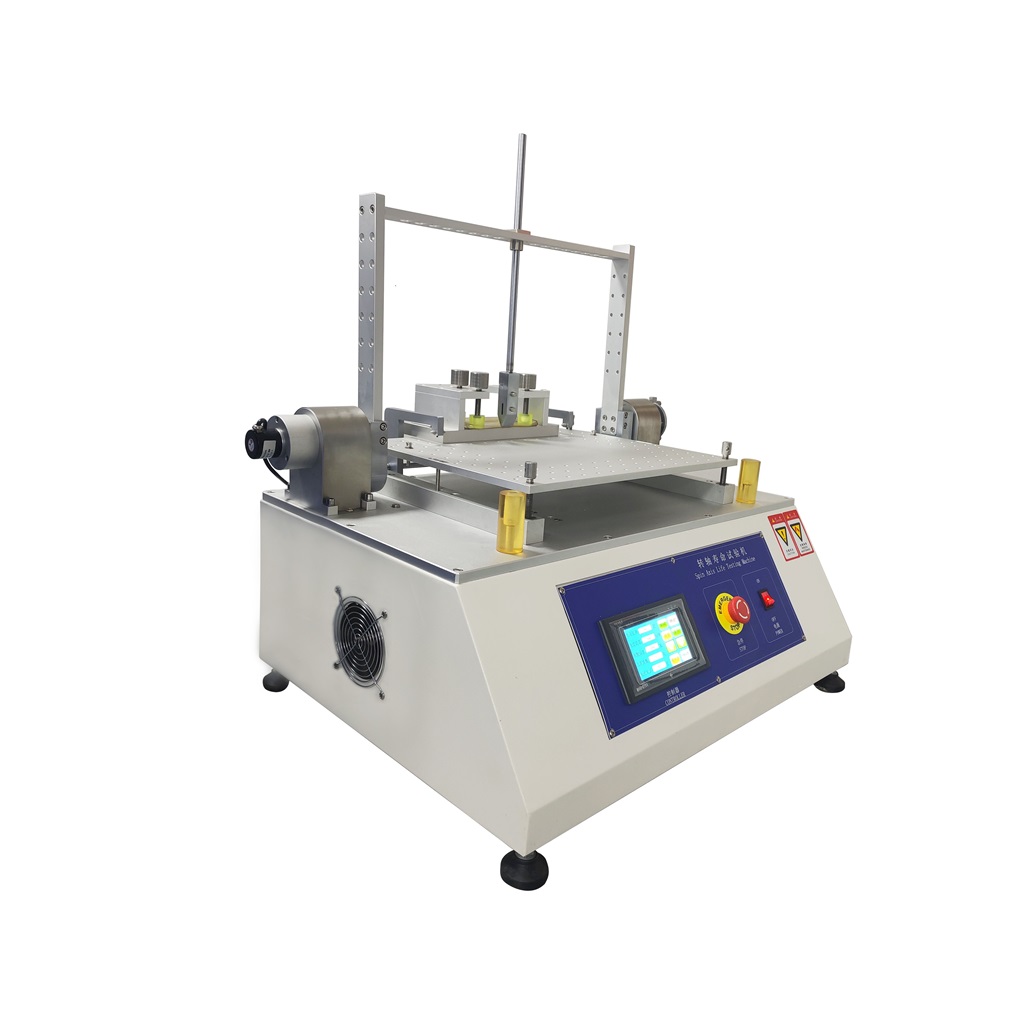

The SUNRISE SR-223 simulates repeated lid open/close actions (up to 999,999 cycles) to evaluate hinge retention force and wear resistance. Configurable for 0-180° or 0-360° testing per OEM specifications.

H2: Key Features

✔ Full Rotation Testing: 0-180° (standard) or 0-360° (upgrade)
✔ Real-Time Monitoring: LED counter + speed display (cycles/minute)
✔ Customizable Setup: Adjustable test platform height (all laptop sizes)
✔ Industrial Durability: Steel frame with 100kg stability

H3: Technical Specifications

H2: Compliance & Applications

Test Standards:

• Customizable for MIL-STD-810G Method 516.6
• Compatible with OEM-specific hinge protocols

Use Cases:

• Ultrabook hinge lifecycle validation
• Gaming laptop torque resistance testing
• Convertible device mechanical endurance

H3: Testing Workflow

1. Mount laptop on adjustable platform
2. Program parameters:
   • Angle: 120° (default) or full 360°
   • Speed: 10 cycles/minute (recommended)
3. Initiate test: Automatic stop at preset cycles
4. Evaluate: Measure hinge torque decay with external gauge

Visual Assets

Image File: sunrise-sr223-hinge-tester-360.jpg
ALT Text: “SR-223 testing 360° hinge rotation on 17″ laptop”

Key UI Elements:

• LED cycle counter (6-digit display)
• Speed adjustment dial

H2: Package Contents

• Main test unit with steel frame
• Universal laptop mounting kit
• Time relay + cycle counter
• Calibration certificate

H3: SUNRISE Advantages

• Torque Analysis: Compatible with external sensors (optional)
• Space-Saving: 30% smaller footprint vs. competitors
• OEM Ready: Pre-loaded Dell/HP/Lenovo test protocols

After-Sales Support

• 2-year frame warranty
• Free torque calibration guide
• On-site hinge testing training
