Mobile Phone & Electronic Test Instruments

Allowable test piece weight 5kg(max)

Roller height 500mm 1000mm

Drum width 275mm mm

Rotation speed 5-20 times/min

Number of tests 1-999999 times (can be set)

Machine weight about 105kg

Power supply AC 220V or specified

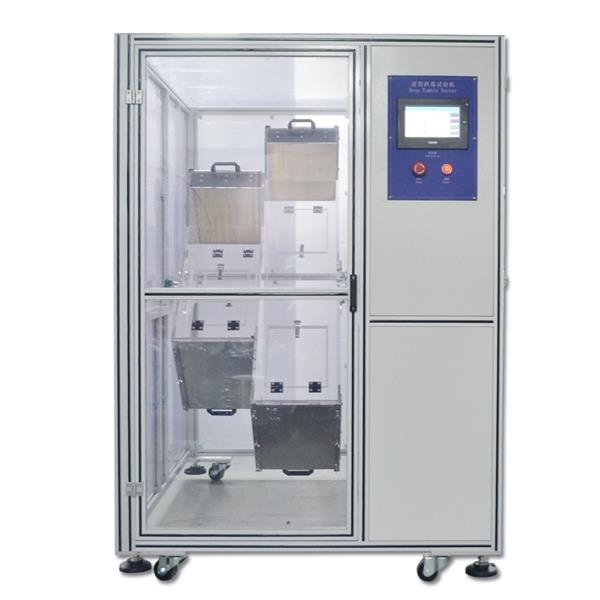

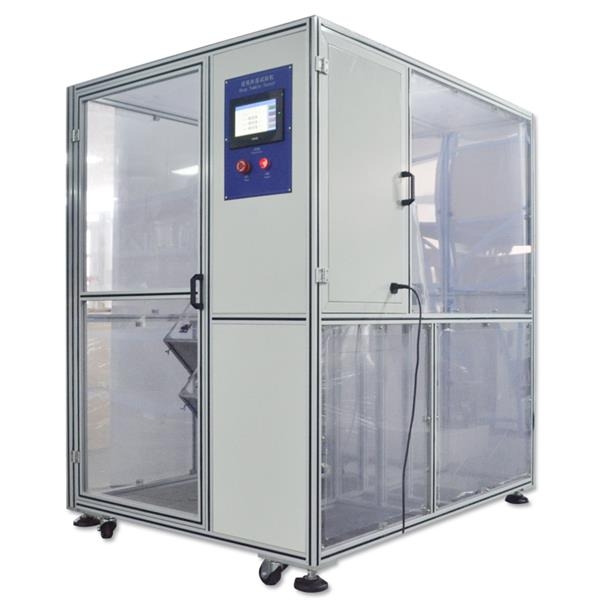

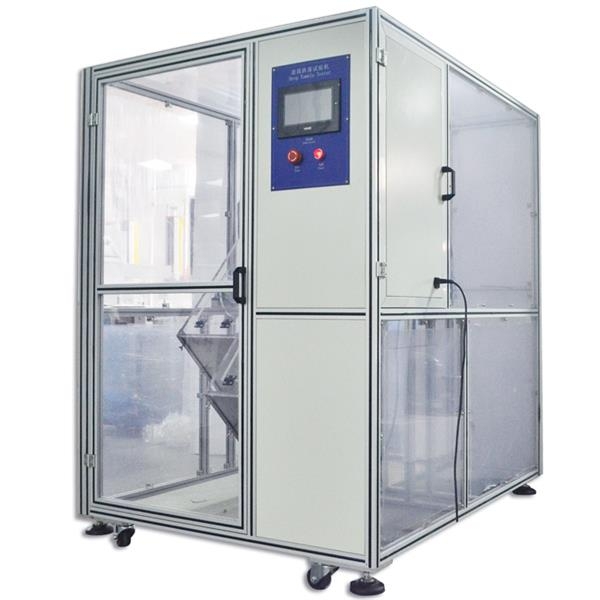

The roller box is made of acrylic, and the whole machine is made of aluminum profile frame, which is strong and durable, and casters are installed below for easy movement.

The machine adopts a touch screen controller, which displays the number of tests in real time, the speed, and automatically stops when the number of times reaches the setting. With power failure memory function.

It is driven by a speed-regulating motor made in Taiwan and the speed governor is used to set the rotation speed, and it is driven by a sprocket. The noise of starting and stopping is extremely low and the operation is stable.

The size is made in strict accordance with international and domestic standards. The structure of the falling surface is steel plate + wooden plate + steel plate, which is combined in a sandwich way, and the wooden plate will not fall off.
