Comprehensive Three-Axis Force Measurement System

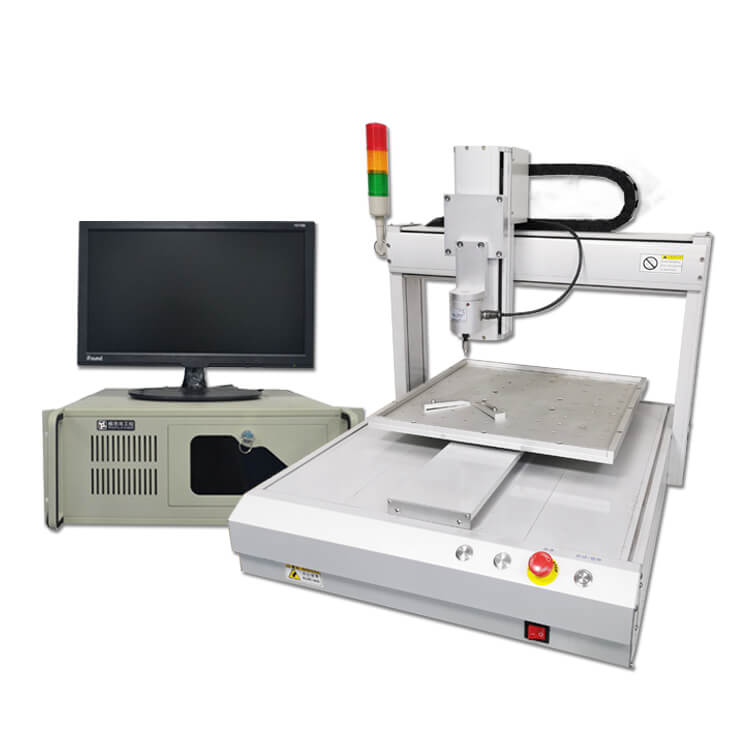

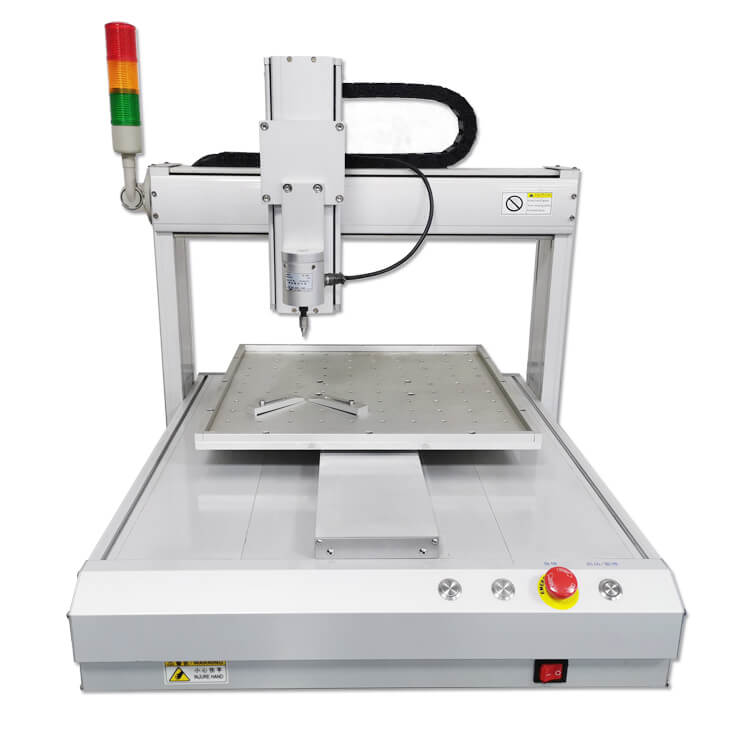

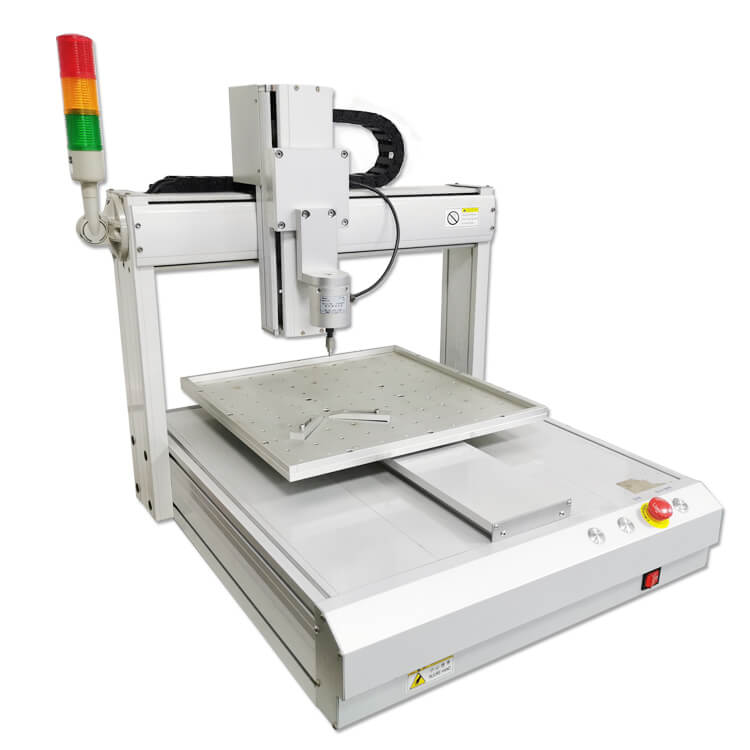

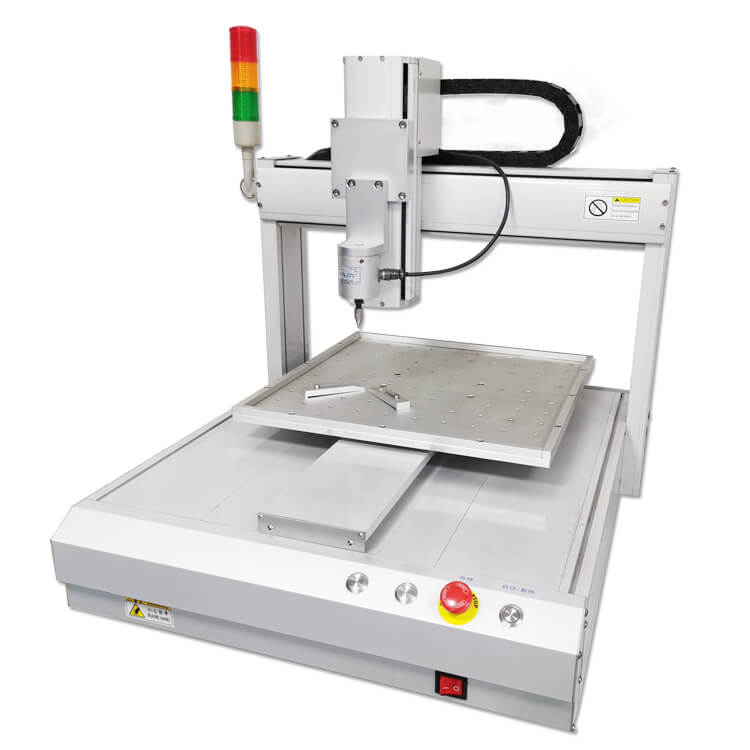

The SR-201 Three-Axis Load Stroke Curve Tester revolutionizes quality control with its fully automated multi-point stress testing capability. This advanced system combines 0.01g force resolution with 400×250×100mm (X-Y-Z) travel range to deliver precise mechanical evaluation of:

• Touchscreen panels
• Keyboard assemblies
• LCD displays
• PDA/mobile device components
• General product durability

Core Technology Advantages

1. Precision Motion Control
   • Panasonic servo motors with ball screw drives
   • 500mm/min (X/Y) and 200mm/min (Z) speeds
   • 0.01mm positioning repeatability
2. Smart Force Measurement
   • Selectable load cells (1/2/5kgf capacity)
   • 0.01g resolution for micro-force detection
   • Multi-diameter probes (2-10mm)
3. Automated Analysis
   • Automatic pass/fail judgment with color coding
   • Defect rate calculation per test batch
   • Unlimited data storage with Excel export

Technical Specifications

Mechanical System

Measurement System

Control System

Advanced Testing Capabilities

1. Multi-Point Automated Testing

• Coordinate Programming:
  • Manual coordinate entry
  • Matrix pattern generation
  • Import CAD layouts
• Smart Z-Axis Control:
  • Automatic height adjustment
  • Collision avoidance system
  • Surface profile following

2. Comprehensive Test Modes

• Static Force Testing:
  • Peak force measurement
  • Displacement at failure
• Dynamic Cycling:
  • Life testing up to 999,999 cycles
  • Continuous monitoring of force decay
• Specialized Evaluations:
  • Keyboard actuation force
  • Touchscreen pressure mapping
  • Display bezel strength

3. Intelligent Data Analysis

• Real-time Graphing:
  • Force vs. displacement curves
  • Cycle-by-cycle trend analysis
• Statistical Processing:
  • Mean/min/max values
  • Standard deviation
  • Process capability (Cp/Cpk)
• Automated Reporting:
  • Customizable templates
  • Batch summary generation
  • Cloud storage integration

Industry Applications

Consumer Electronics

• Smartphone Testing:
  • Button tactility validation
  • Display module durability
  • Housings structural integrity
• Laptop QC:
  • Keyboard switch consistency
  • Touchpad click force
  • Hinge mechanism fatigue

Automotive Components

• Control Panel Evaluation:
  • Touchscreen haptic feedback
  • Rotary knob torque
  • HVAC button lifespan

Medical Devices

• Handheld Equipment:
  • Membrane switch reliability
  • Enclosure strength
  • Actuator force verification

Research & Development

• Material Characterization:
  • Composite flexural properties
  • Thin film mechanical behavior
  • Adhesive bond performance

Complete Testing Workflow

1. System Setup

1. Fixture Installation:
   • Mount appropriate test probes
   • Secure test specimen
2. Coordinate Programming:
   • Define test points manually or via CAD
   • Set Z-axis approach parameters
3. Test Parameters:
   • Select force threshold (0.01-5000g)
   • Configure displacement limits
   • Set test speed (1-500mm/min)

2. Test Execution

1. Automated Scanning:
   • System sequentially tests all programmed points
   • Real-time force-display monitoring
2. Adaptive Control:
   • Automatic speed adjustment
   • Collision detection and recovery
3. Data Collection:
   • Continuous force/displacement recording
   • Event-triggered data capture

3. Results Analysis

1. Graphical Review:
   • Overlay multiple test curves
   • Compare to historical data
2. Statistical Evaluation:
   • Calculate process capability
   • Identify outlier measurements
3. Reporting:
   • Generate standardized QC reports
   • Export raw data for further analysis

Why Choose the SR-201?

Competitive Advantages

1. Higher Productivity
   • 5x faster than manual testing
   • Unattended operation capability
2. Superior Accuracy
   • 10x better resolution than competitors
   • Temperature-compensated measurements
3. Future-Proof Design
   • Software upgradable
   • Modular probe system
4. Comprehensive Support
   • 24/7 technical assistance
   • On-site training available

Complete Package Contents

1. Main Test Unit
   • Three-axis motion system
   • Load measurement head
2. Standard Accessories
   • 5 probe tips (2-10mm)
   • Basic fixture set
3. Software Package
   • Control and analysis suite
   • Database management tools
4. Documentation
   • Operation manual
   • Calibration certificate
5. Optional Add-ons
   • Environmental chamber
   • Automated specimen loader
   • Advanced analysis modules

After-Sales Support

• 12-month comprehensive warranty
• Lifetime technical consultation
• Priority software updates
• Custom fixture design service
• On-site calibration available

Ordering Information

Payment Options: T/T, LC, Credit Terms
Global Shipping: DHL/FedEx/Sea Freight
