Cable-Attached Device Durability Testing

The SUNRISE SR-220 rigorously evaluates small electronics (≤5kg) through repeated tumbles (10 falls/min) at 500mm or 1000mm drop height, complying with IEC 60068-2-32 and GB/T 2324.8 for connectors, remotes, and cable-mounted devices.

H2: Key Features

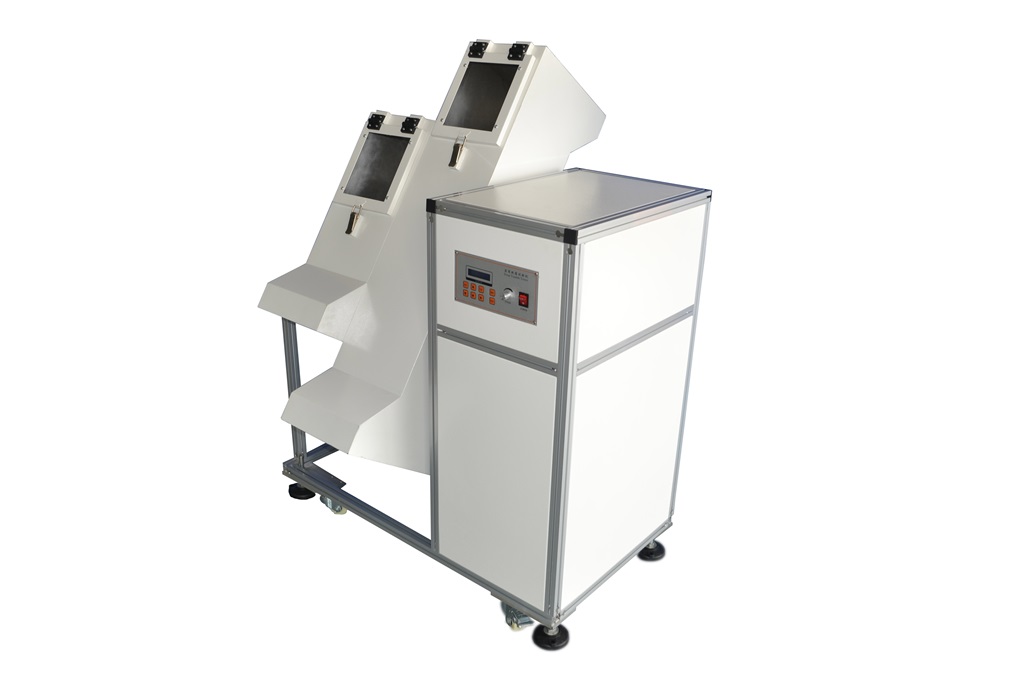

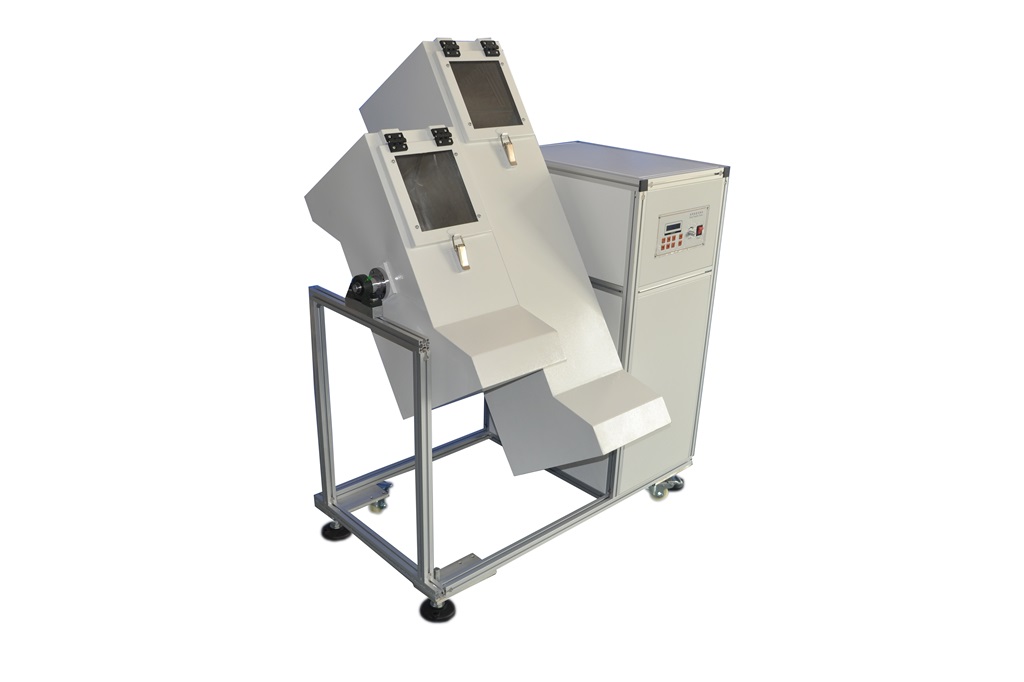

✔ Dual-Height Drum: 500mm (standard) or 1000mm (extended)
✔ Real-World Simulation: 10 falls/minute (5 RPM rotation) onto steel/hardwood impact surface
✔ Industrial Construction: 304 stainless steel drum (275mm/350mm width options)
✔ Certification Ready: Pre-programmed for IEC/GB test protocols

H3: Technical Specifications

H2: Compliance & Applications

Standards:

• IEC 60068-2-32 Ed.3 (2019)
• GB/T 2324.8-2021

Use Cases:

• Cable connector housing durability
• Remote control impact resistance
• Wearable device MIL-STD-810G validation

H3: Testing Workflow

1. Load sample into drum → secure safety cover
2. Program parameters:
   • 5 RPM (default for 10 falls/min)
   • 500mm/1000mm drop height
3. Initiate test: Auto-stop at preset count (1-999,999)
4. Evaluate: Post-test visual/mechanical/electrical inspection

Visual Assets

Image File: sunrise-sr220-tumble-tester-operation.jpg
ALT Text: “SR-220 tumble barrel tester simulating cable-attached device drops”

H2: Package Contents

• Main unit with stainless steel drum
• Standard 500mm configuration (1000mm upgrade kit)
• Digital display controller (SET/CLR/RUN interface)
• IEC 60068-2-32 compliance certificate template

H3: SUNRISE Advantages

• Precision Engineering: ±2% rotational speed accuracy
• Durability: Maintenance-free motor (10,000+ hour lifespan)
• Global Support: 24/7 technical assistance

After-Sales

• 2-year motor warranty
• On-site calibration (ISO 17025 accredited)
• Free IEC 60068-2-32 test method guide
