Rubber & Plastic Testing Machine

Fully Automated Polymer Flow Rate Analysis

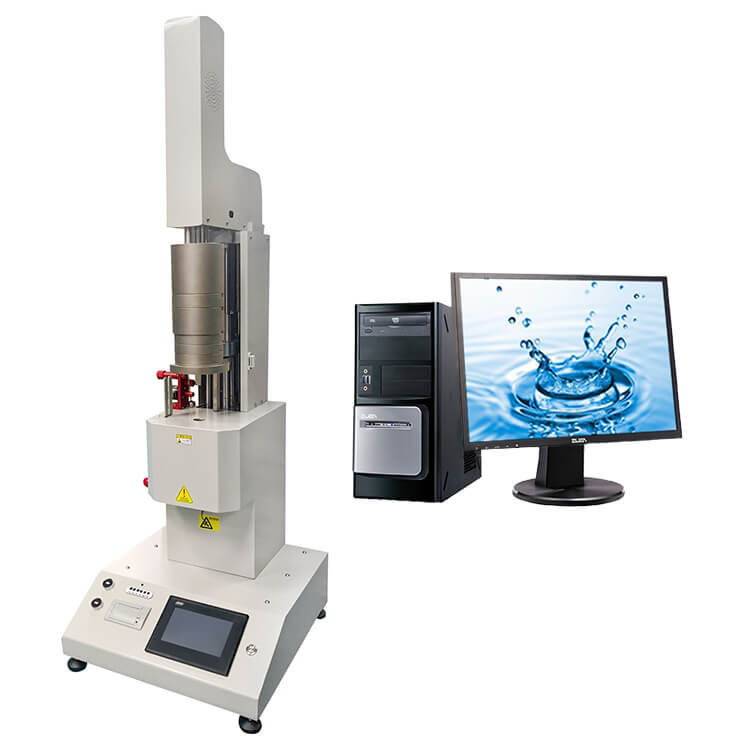

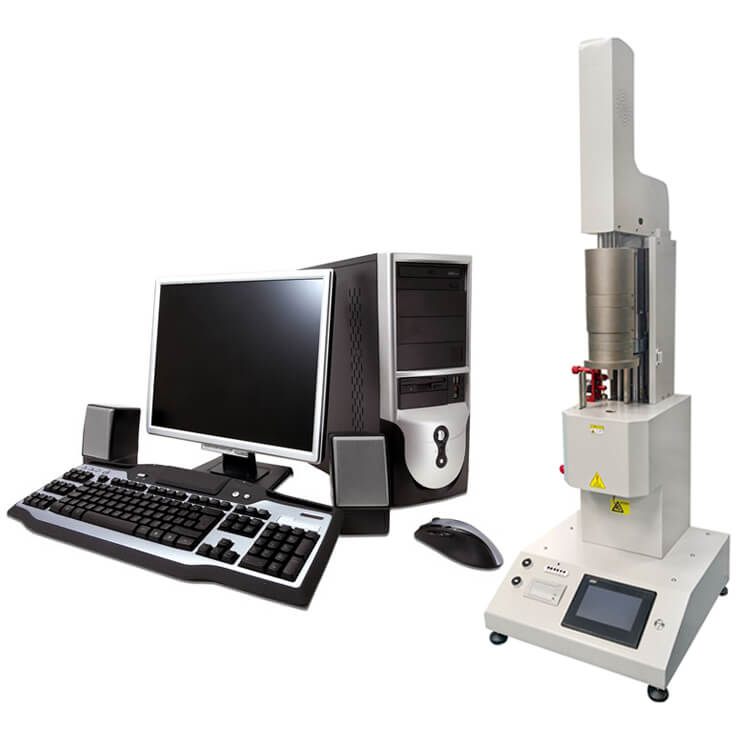

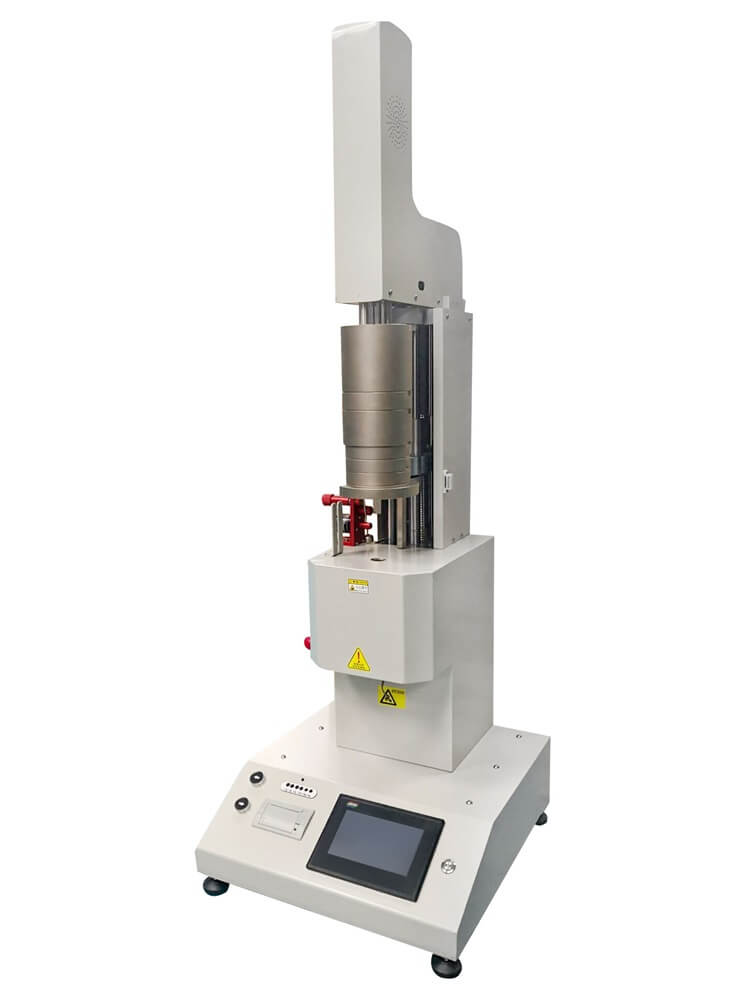

The SUNRISE XNR-400AM delivers lab-grade Melt Flow Rate (MFR) and Melt Volume Rate (MVR) measurements with 0.1°C temperature resolution and stepper motor-driven auto-loading for high-throughput testing of engineering plastics.

H2: Key Features

✔ Dual Testing Modes: MFR (mass flow) & MVR (volume flow) with auto-calculation
✔ Smart Temperature Control: 3-zone PID with ±0.2°C uniformity
✔ Auto Weight Loading: 8-class weights (0.325-21.6kg) via ball screw mechanism
✔ OEM Ready: Pre-loaded ISO 1133, ASTM D1238, and GB/T 3682 protocols

H3: Technical Specifications

H2: Compliance & Applications

Standards:

• ISO 1133-1:2011
• ASTM D1238-20
• GB/T 3682-2018

Use Cases:

• Engineering plastics (PC, PA, PPS) QC
• Recycled polymer flow consistency
• Automotive/electronics material R&D

H3: Testing Workflow

1. Load material → Pre-heat (countdown timer with audio prompt)
2. Select mode:
   • MFR: Auto-cut extrudate at intervals
   • MVR: Piston displacement tracking
3. Initiate test: Stepper motor auto-loads weights
4. Analyze: Touchscreen displays MFR/MVR + prints report

Visual Assets

Image File: sunrise-xnr400am-auto-testing.jpg
ALT Text: “XNR-400AM performing automated MVR test with touchscreen interface”

UI Highlights:

• 7″ touchscreen with test history storage
• Real-time temperature/piston position graphs

H2: Package Contents

• Main unit with auto-loading mechanism
• Tungsten carbide die (Ø2.095mm standard)
• 8 test weights + calibration certificate
• USB cable for PC data export

H3: SUNRISE Advantages

• Plug-and-Play: Pre-loaded material profiles (ABS, PP, PC, etc.)
• Zero Downtime: Self-cleaning die function
• Future-Proof: Firmware upgradable for new standards

After-Sales Support

• 2-year warranty on heating system
• Free MFR/MVR testing methodology guide
• Remote video training available
