Rubber & Plastic Testing Machine

Precision Wear Resistance Testing for Elastomers

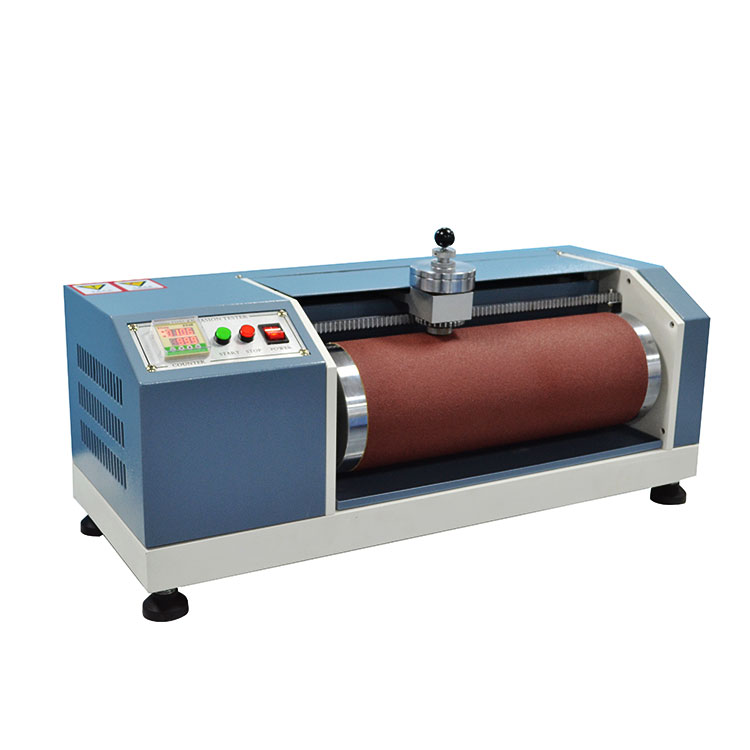

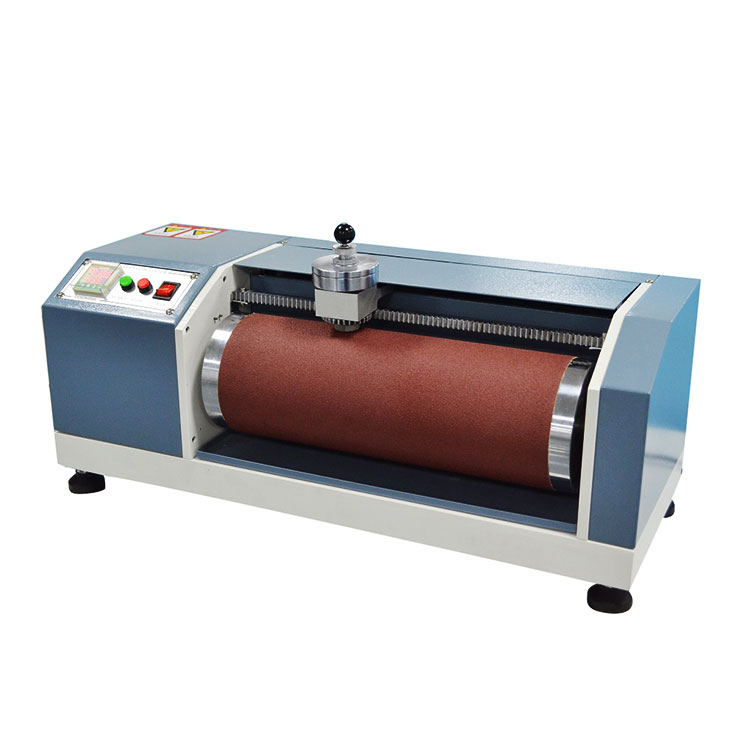

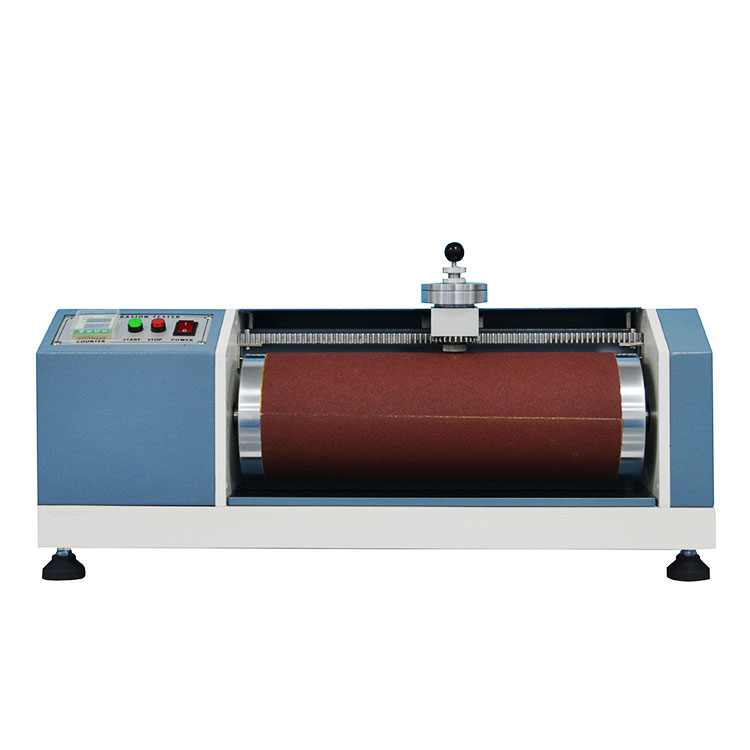

The SUNRISE SR-323 evaluates material durability through controlled abrasion with a 150mm rotating drum and 4.2mm/rev lateral displacement, complying with DIN 53516 and ISO 4649 for tires, shoe soles, and industrial rubber products.

H2: Key Features

✔ Multi-Load Testing: 2.5N, 5N, 7.5N, 10N weights included
✔ Real-World Simulation: Sandpaper drum with lateral specimen movement
✔ Precision Measurement: Volume loss calculation via mass/density
✔ Certification Ready: Pre-loaded DIN, ISO, and GB test protocols

H3: Technical Specifications

H2: Compliance & Applications

Standards:

• DIN 53516:2017 (Rubber abrasion)
• ISO 4649:2017 (Determination of abrasion resistance)
• GB/T 9867-2008 (China abrasion standard)

Use Cases:

• Tire tread wear validation
• Footwear outsole durability testing
• Conveyor belt lifespan prediction

H3: Testing Workflow

1. Mount sample on holder + secure abrasive paper
2. Select load: 5N (default for shoe soles)
3. Initiate test: 40 RPM drum rotation (40min typical)
4. Calculate: Volume loss = (mass loss ÷ material density)

Visual Assets

Image File: sunrise-sr323-din-abrasion-test.jpg
ALT Text: “SR-323 performing DIN abrasion test on rubber sample”

Key Components:

• Drum with sandpaper mounting
• Adjustable load weights

H2: Package Contents

• Main unit with drum assembly
• 2 DIN-standard abrasive papers
• 4 weights (2.5N-10N)
• Sample punch (Φ16mm)

H3: SUNRISE Advantages

• Lab Efficiency: Simultaneous mass/volume loss reporting
• Durability: Hardened steel drum (10,000+ test lifespan)
• Global Support: 24/7 technical assistance

After-Sales Support

• 1-year mechanical warranty
• Free abrasion testing methodology guide
• Calibration service available
