Precision Impact Testing for Non-Metallic Materials

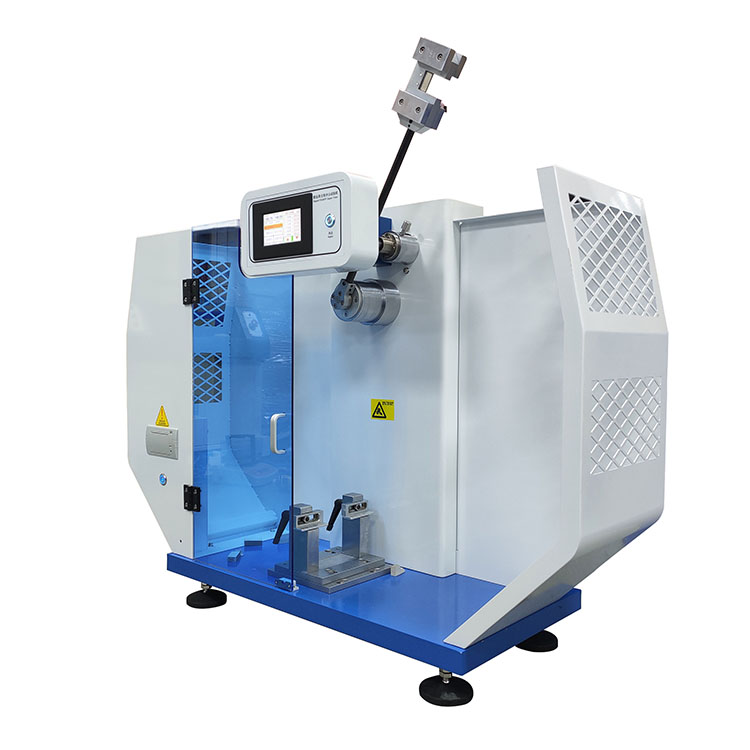

The SUNRISE SR-JC Digital Charpy Impact Tester delivers laboratory-grade impact toughness analysis for plastics, ceramics, and composites with 1-50J energy range and 0.01° angle resolution. Ideal for R&D and quality control per ISO 179 and GB/T 1043.
H2: Key Features
✔ Patent-Pending Carbon Fiber Pendulum: Eliminates vibration for shock-free testing
✔ Microcomputer Precision: Auto-corrects wind/friction energy loss (0.01J accuracy)
✔ Multi-Standard Compliance: Pre-loaded ISO, GB, and JB test protocols
✔ Smart Data Management: Stores 12 tests + calculates averages
H3: Technical Specifications
| Parameter | Specification |
|---|---|
| Energy Range | 1J-50J (7 pendulum options) |
| Impact Velocity | 2.9m/s or 3.8m/s |
| Angle Accuracy | ±0.01° (OMRON encoder) |
| Sample Capacity | ≤95mm width (4 jaw spacings) |
| Power Supply | AC 220V ±10% 50Hz |
H2: Compliance & Applications
Standards:
- ISO 179-1:2010 (Plastics – Charpy impact)
- GB/T 1043-2008 (Rigid plastic impact)
- JB/T 8762-1998 (Plastic impact machines)
Use Cases:
- Automotive plastic component validation
- Aerospace composite material R&D
- Pipe/tubing impact resistance testing
H3: Testing Workflow
- Mount sample in adjustable jaws (40-95mm spacing)
- Select pendulum: 5J (default for ABS/PC plastics)
- Initiate test: Auto-release pendulum + impact
- Analyze: Touchscreen displays energy (J), strength (kJ/m²), and loss
Visual Assets
Image File: sunrise-srjc-charpy-tester-operation.jpg
ALT Text: “SR-JC Charpy tester performing impact test on plastic sample with touchscreen data”
UI Highlights:
- Bilingual EN/CN interface
- Real-time energy loss correction
H2: Package Contents
- Main unit with carbon fiber pendulum
- 7 pendulums (1J-50J range)
- Micro printer + paper
- ISO 179 compliance certificate
H3: SUNRISE Advantages
- Research-Grade: 0.01° encoder precision
- Durability: 3x longer lifespan vs steel pendulums
- Global Ready: kJ/m², kg-cm/cm, ft-lb/in units
After-Sales Support
- 2-year encoder warranty
- Free impact testing methodology guide
- On-site calibration (ISO 17025)
Order Information
📱 Jess (Sales): +86 15992719785 (WeChat/Phone)
✉ Email: [email protected]
🌐 Website: www.sunrisedg.com
