Rubber & Plastic Testing Machine

Precision Impact Resistance Testing for Flexible Materials

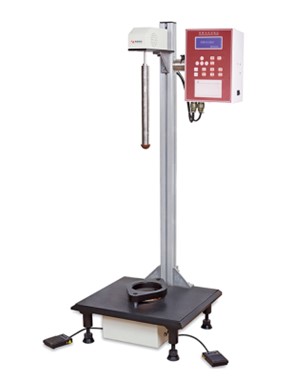

The SUNRISE SRLB determines the impact failure threshold of films, sheets, and composites using variable dart weights (50-2000g) and dual drop heights (0.66m/1.5m) per ASTM D1709 and ISO 7765 standards.

H2: Key Features

✔ Dual Test Modes: Method A (0.66m) & Method B (1.5m) for all material thicknesses
✔ Smart Sample Clamping: Pneumatic fixation (0.6MPa) + observation light
✔ High Accuracy: 0.1g weight resolution (0.1J energy)
✔ OEM Ready: Pre-loaded ASTM, ISO, JIS, and GB test protocols

H3: Technical Specifications

H2: Compliance & Applications

Standards:

• ASTM D1709-22 (Standard Test Methods)
• ISO 7765-1:2023 (Plastic film/sheet)
• GB/T 9639.1-2008 (China standard)

Use Cases:

• Food packaging film QC (PE/PET)
• Aluminum-plastic composite validation
• Heavy-duty bag impact resistance

H3: Testing Workflow

1. Mount sample via pneumatic clamp
2. Select parameters:
   • Method A: 0.66m (thin films <1mm)
   • Initial weight: 200g (typical for PE)
3. Initiate test: Auto-adjust weights per A/B testing
4. Calculate: Impact failure mass (50% damage threshold)

Visual Assets

Image File: sunrise-srlb-film-impact-test.jpg
ALT Text: “SRLB performing ASTM D1709 test on plastic film with touchscreen interface”

UI Options:

• SRLB-A: LCD + button control
• SRLB-B: Touchscreen operation

H2: Package Contents

• Main unit with dart release mechanism
• Weight set (50g-2000g in 0.1g increments)
• Pneumatic tubing (Ф8mm)
• ASTM D1709 compliance certificate

H3: SUNRISE Advantages

• Extended Applications: Drop-ball & shoulder lining test kits available
• Data Integrity: Stores 20+ test results for statistical analysis
• Lab Efficiency: 3x faster than manual clamp systems

After-Sales Support

• 2-year frame warranty
• Free impact testing methodology guide
• Video calibration tutorials
