Rubber & Plastic Testing Machine

Dual-Function Thermal Analysis for Polymers

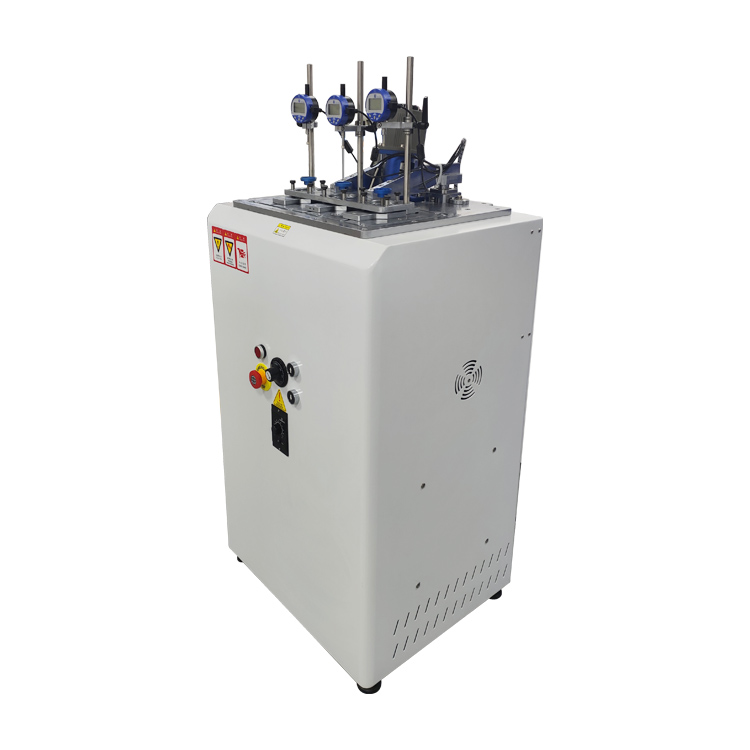

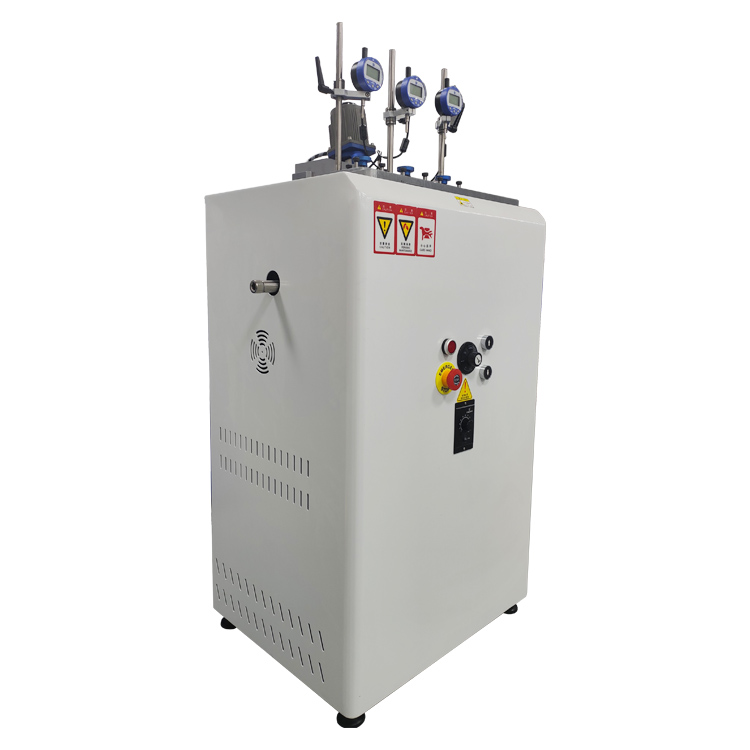

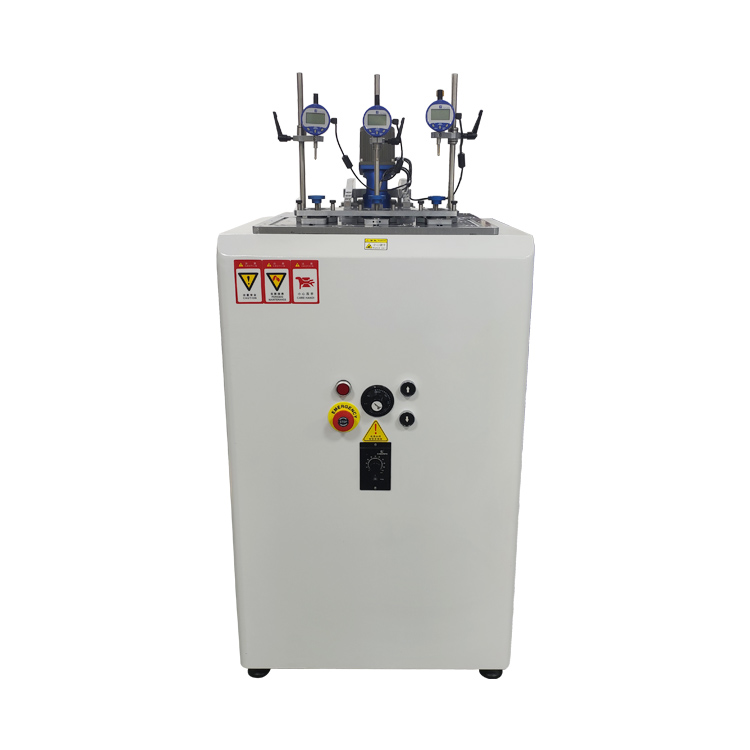

The SUNRISE SR-WDK3 performs both heat deformation (ISO 75) and Vicat softening point (ASTM D1525) tests simultaneously on plastics, rubber, and insulation materials with ±0.5°C temperature control and 0.001mm deformation resolution.

H2: Key Features

✔ Dual Test Modes: Heat deformation + Vicat softening in one run
✔ Smart PID Control: Two heating rates (50°C/h or 120°C/h)
✔ High Throughput: 3-station parallel testing
✔ Safety Focus: Software + mechanical over-temperature protection

H3: Technical Specifications

H2: Compliance & Applications

Standards:

• ISO 75-1:2020 (Heat deformation)
• ASTM D1525-18 (Vicat softening)
• GB/T 1633/1634 (China standards)

Use Cases:

• Plastic pipe fitting QC
• Electrical insulation material testing
• Polymer R&D for automotive/electronics

H3: Testing Workflow

1. Mount samples in 3 stations (100mm span default)
2. Select mode:
   • Vicat: 1mm² needle @ 50°C/h
   • Heat deformation: 0.45MPa/1.8MPa
3. Initiate test: Real-time deformation monitoring
4. Review: Auto-generated report with test curves

Visual Assets

Image File: sunrise-srwdk3-dual-test-operation.jpg
ALT Text: “SR-WDK3 running simultaneous Vicat and heat deformation tests”

UI Highlights:

• Color-coded test curves for each station
• Overtemperature alarm indicator

H2: Package Contents

• Main unit with PLC controller
• 3 sample frames + indenters
• Weight set (1000g-1g, 42 pcs total)
• GB/T 1633 compliance certificate

H3: SUNRISE Advantages

• Auto-Calculation: Load adjustment based on sample dimensions
• Lab Efficiency: 3x faster than single-station testers
• Data Integrity: Test curves stored for 5 years

After-Sales Support

• 2-year temperature sensor warranty
• Free oil bath maintenance guide
• Video calibration tutorials
