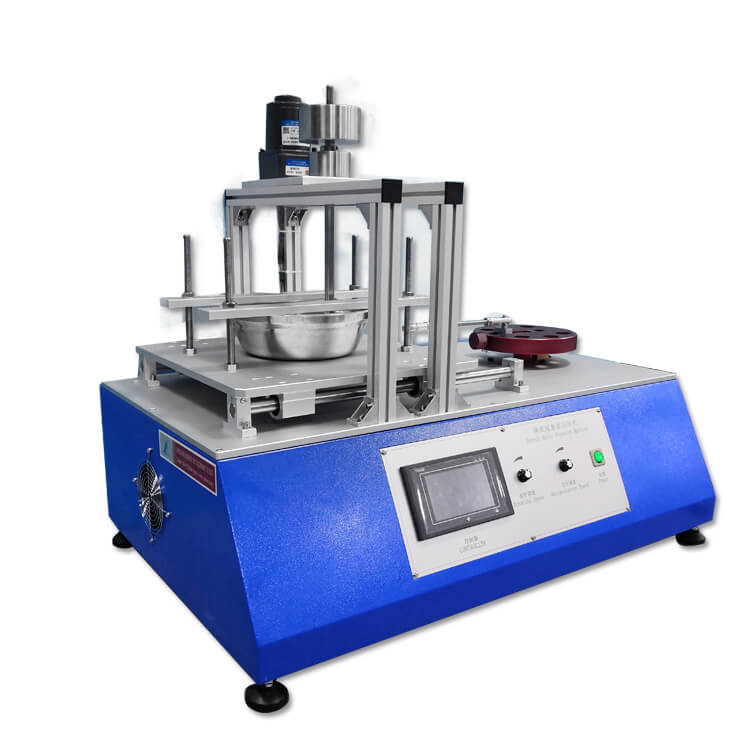

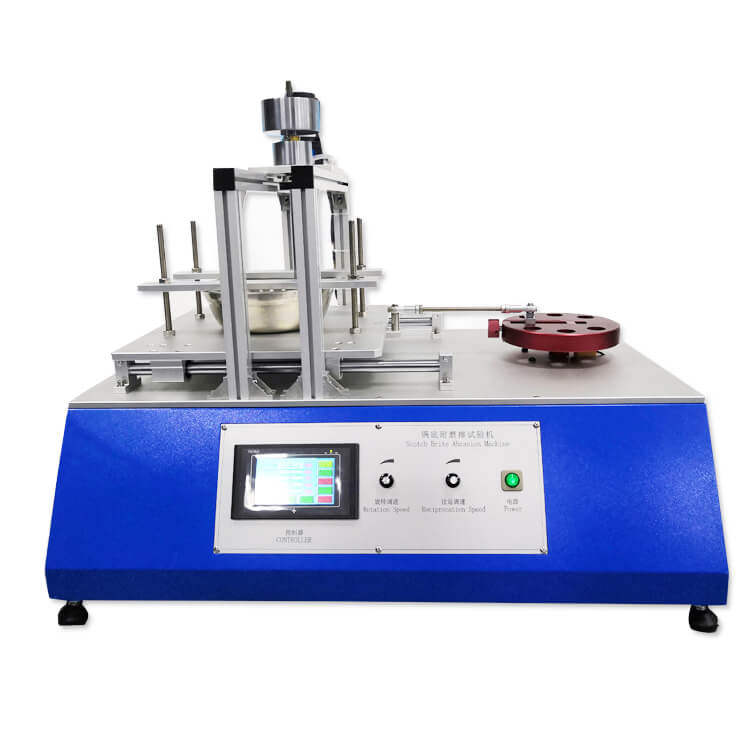

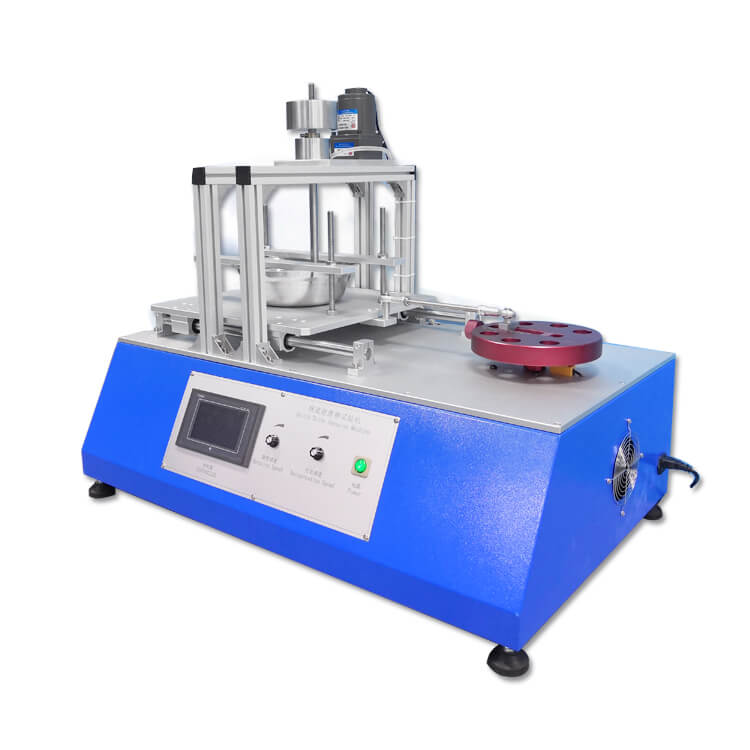

Cookware Abrasion Tester for Non-Stick Coating Evaluation
The SR-175 Cookware Abrasion Tester from SUNRISE simulates real-world wear on pot/pan surfaces through standardized friction testing. Compliant with EN 12983-1, GB4706.5, and JIS C9215 standards, this dual-motor system provides quantifiable data on coating durability for quality assurance.
H2: Key Features of Our Cookware Abrasion Tester
✔ Dual-Motor Technology:
- Vertical motor rotates abrasion cloth (50mm diameter)
- Horizontal motor reciprocates sample (52.7mm stroke)
✔ Precision Loading: 5 preset weights (908-4900g) cover all cookware types
✔ Long-Duration Testing: Programmable up to 9,999 hours for accelerated life testing
✔ Standard Compliance: Validates to EN 12983-1 and GB4706.5
H3: Technical Specifications
| Parameter | Specification |
|---|---|
| Test Loads | 908g, 1219g, 1500g, 4500g, 4900g |
| Test Duration | 0-9,999 hours (digital setting) |
| Abrasion Head | 50mm diameter special cloth |
| Power Supply | 220V 5A (global options available) |
H2: Industry Applications
Cookware Manufacturing:
- Non-stick coating durability verification
- Ceramic coating wear resistance
- Hard-anodized surface testing
Quality Certification:
- Compliance testing for FDA food contact standards
- Import/export validation to EU/UK/China regulations
H3: Testing Methodology
- Secure cookware sample in temperature-controlled holder
- Select appropriate test load:
- 908g for lightweight cookware
- 4900g for commercial-grade pots
- Set test duration (typically 50-500 cycles)
- Initiate dual-axis abrasion test
- Evaluate coating integrity via:
- Visual inspection
- Egg release testing
- Contact angle measurement
Image Optimization
- File Name: sunrise-sr175-cookware-abrasion-tester.jpg
- ALT Text: “SR-175 cookware abrasion tester evaluating non-stick coating durability”
H2: Complete Package Includes
- Main testing unit with touchscreen
- Standard abrasion cloths (5 pcs)
- All test weights (908-4900g)
- Download EN 12983-1 test protocol
H3: Why Choose This Abrasion Tester?
- Real-World Simulation: Dual-axis motion mimics utensil scrubbing
- Quantifiable Results: Measures coating wear-through points
- Regulatory Ready: Pre-configured test modes for major standards
After-Sales Support
• 18-month warranty on drive motors
• Abrasion cloth replacement service
• On-site calibration available
Order Your Cookware Tester
📞 +86 15992719785
📧 [email protected]
