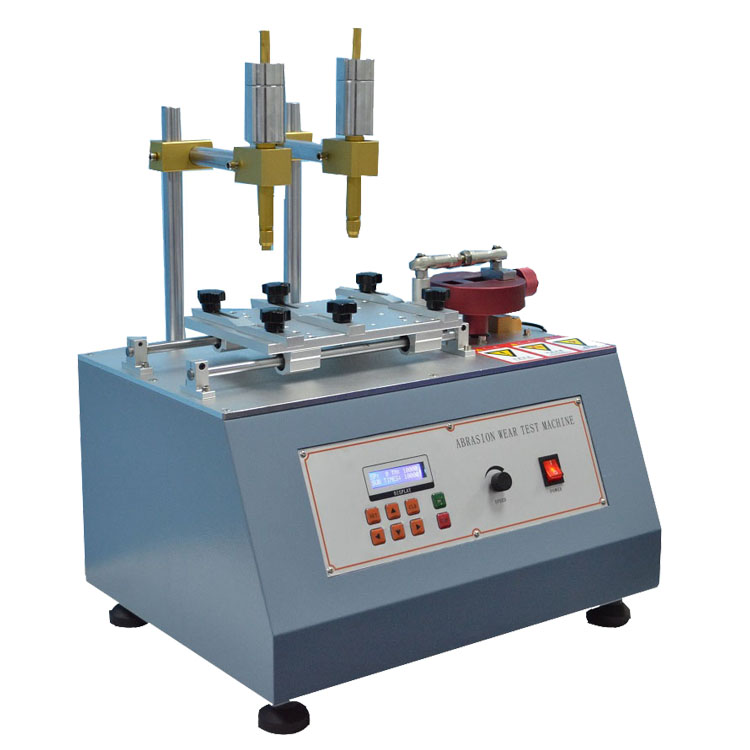

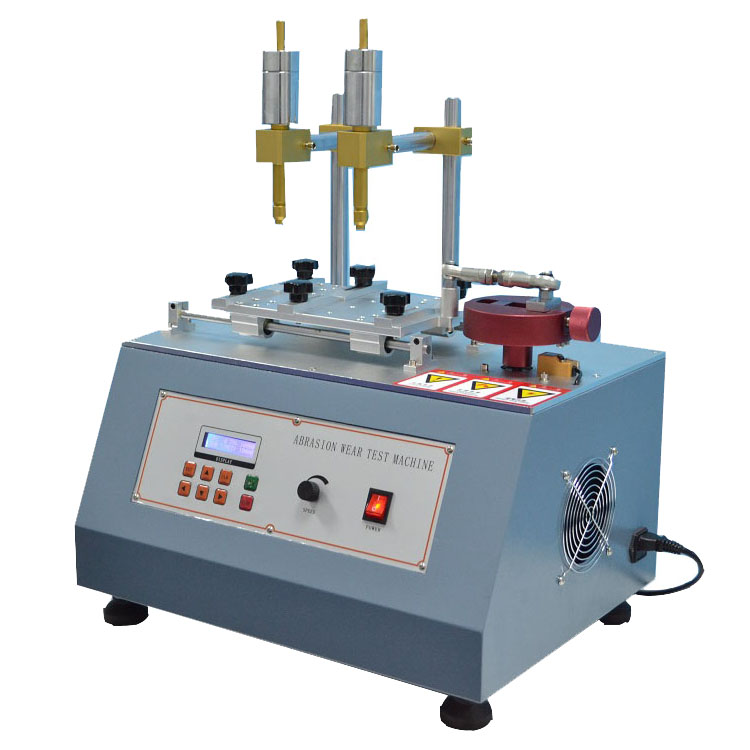

Alcohol Abrasion Tester for Electronic Device Coatings
The SR-204 Abrasion Tester from SUNRISE simulates real-world wear on consumer electronics coatings through standardized friction testing. This versatile system accommodates alcohol, rubber erasers, and steel wool media to evaluate surface durability for mobile devices, wearables, and portable electronics.
H2: Key Features of Our Alcohol Abrasion Tester
✔ Multi-Media Testing:
- Standard rubber eraser (12.5cm×0.6cm)
- Alcohol wipes (included)
- Optional steel wool/pencil attachments
✔ Precision Loading: 6 weights from 10g-500g (two of each)
✔ Extended Testing: Programmable up to 999,999 cycles
✔ Adaptable Design: Eccentric wheel adjusts stroke (0-50mm)
H3: Technical Specifications
| Parameter | Specification |
|---|---|
| Test Media | Alcohol, rubber, steel wool |
| Speed Range | 0-80 RPM (±1% accuracy) |
| Maximum Load | 960g (stackable weights) |
| Power Consumption | 40W energy-efficient operation |
H2: Industry Applications
Consumer Electronics:
- Smartphone paint/coating durability
- Wearable device surface wear testing
- Laptop finish abrasion resistance
Automotive Interiors:
- Touchscreen coating evaluations
- Control button wear simulation
H3: Testing Methodology
- Select test medium per application:
- Alcohol wipes for chemical resistance
- Rubber eraser for mechanical abrasion
- Apply appropriate weight:
- 100g for thin coatings
- 500g for ruggedized devices
- Set test parameters:
- 30 RPM standard speed
- 1,000-10,000 typical cycles
- Evaluate coating integrity via:
- Visual inspection under 10× magnification
- Gloss measurement comparison
Image Optimization
- File Name: sunrise-sr204-alcohol-abrasion-tester.jpg
- ALT Text: “SR-204 alcohol abrasion tester evaluating smartphone coating durability”
H2: Complete Package Includes
- Main testing unit with LCD controller
- 12 alcohol wipes & 2 rubber erasers
- Full weight set (10g-500g)
H3: Why Choose This Abrasion Tester?
- Versatile: Tests all consumer electronics coatings
- Quantifiable: Digital cycle counter ensures repeatability
- Cost-Effective: 40W operation reduces lab energy costs
After-Sales Support
• 12-month warranty on mechanical components
• Media replacement kits available
• On-site calibration service
