Webbing Abrasion Tester for Safety-Critical Textile Evaluation

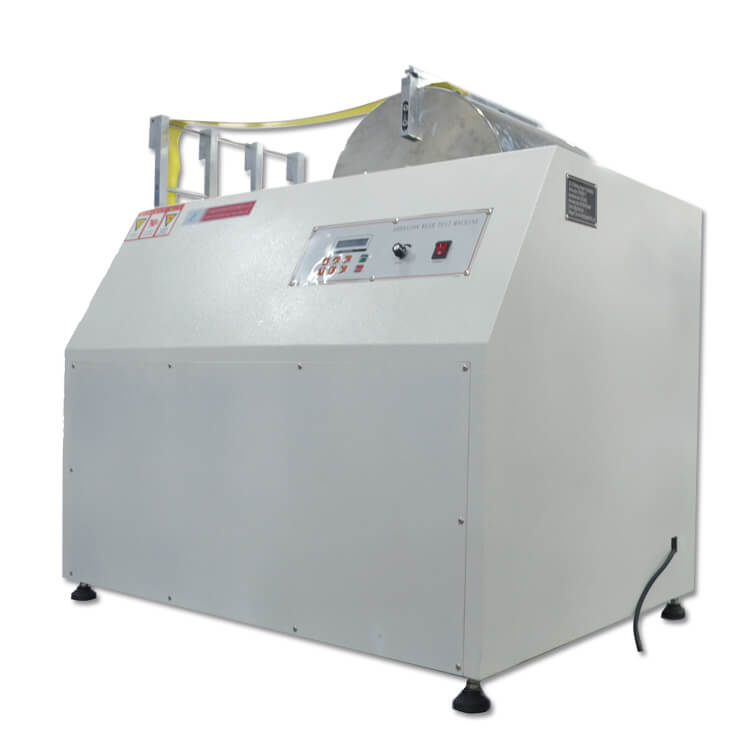

The SR-112 Webbing Abrasion Tester from SUNRISE implements the hex bar method to assess wear resistance of safety harnesses, cargo straps, and helmet webbing per ASTM D6770 and FMVSS 209 standards. This 3-station system simulates real-world wear patterns through controlled 85°±2° angle abrasion.
H2: Key Features of Our Webbing Abrasion Tester
✔ Multi-Station Testing: Simultaneously evaluates 3 specimens (300±20mm stroke)
✔ Precision Angulation: Maintains 85°±2° abrasion angle via specimen roller
✔ Standard Compliance: Validates to ASTM D6770 (dofollow) and FMVSS 209 (dofollow)
✔ Adjustable Loading: 0.9kg, 1.8kg, and 2.4kg test weights included
H3: Webbing Abrasion Tester Specifications
| Parameter | Specification |
|---|---|
| Testing Speed | 30±1 cycles/minute |
| Hex Bar Diameter | 6.35±0.03mm |
| Load Options | 0.9kg, 1.8kg, 2.4kg (±0.06kg) |
| Power Supply | 220V, 50/60Hz |
H2: Industry Applications
Safety Equipment:
- Seat belt webbing durability (FMVSS 209 compliance)
- Fall protection harness wear testing
Military/Defense:
- Tactical gear strap evaluation per MIL-T-8363B
- Cargo tie-down webbing assessment
Outdoor Gear:
- Backpack strap abrasion resistance
- Climbing rope sheath testing
H3: Testing Methodology
- Mount webbing specimens under specified tension
- Engage hexagonal abrasion bar (6.35mm diameter)
- Run predetermined cycles (typically 500-5,000)
- Compare breaking force retention vs. unabraded sample
Image Optimization
- File Name: sunrise-sr112-webbing-abrasion-tester.jpg
- ALT Text: “SR-112 webbing abrasion tester performing hex bar method evaluation”
H2: Complete Package Includes
- Main testing unit with 3 stations
- Hexagonal abrasion bars (6.35mm)
- Standard test weights (0.9/1.8/2.4kg)
- Digital cycle counter
H3: Why Choose Hex Bar Abrasion Testing?
- Real-World Simulation: 85° angle replicates field wear patterns
- Quantifiable Results: Measures % breaking force retention
- Efficient: Tests 3 samples simultaneously
After-Sales Support
• 12-month warranty
• Lifetime technical consultation
• Download ASTM D6770 test protocol
Order Your Webbing Tester
📞 +86 15992719785
📧 [email protected]
