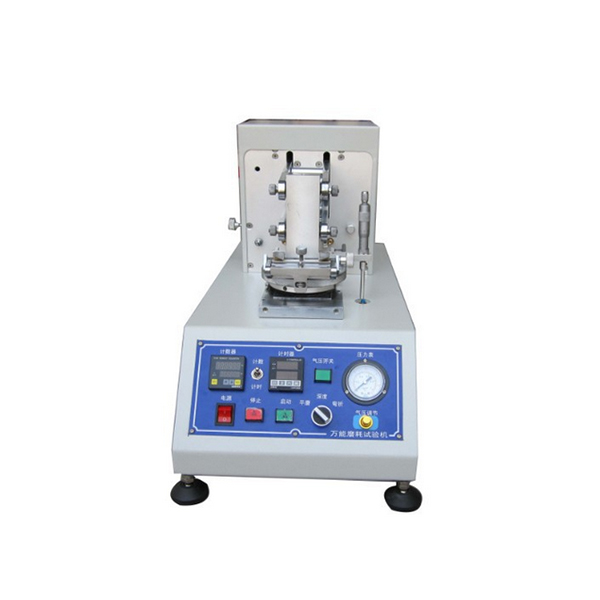

Model: SR-303
Universal Friction wear Testing Machine is a multifunctional and precise instrument for measuring the abrasion durability, flex wear and edge wear of the specimen as paper, plastics, rubber, textiles, leather, etc. All tests can be run under wet or dry condition. The system will stop automatically when the specimen is worn out.
ASTM-D3885, AATCC-119&120, ASTM-D3886, ASTM-D3514, ASTM-D3885 DRAFT 20-0-70
- According to ASTM, the device shuts off automatically when specimen breaks; it can ensure accurate test results which are repeatable and save time for operators from evaluation tests.
2. Applies to various wear tests by changing test heads such as plain test heads (Inflated Diaphragm Abrasion Test Method), curve test heads and frosting attaching.
- Advanced holders ensuring stable pulling pressure.1 high accuracy
| Model |
SR-303 |
| Tension Weight |
2~1/2 lb, 2~1 lb,1~2 lb |
| Head Weight |
2~1/2 lb, 2~1 lb |
| Prseeure range |
1~9 psi |
| Table stoke |
approx.1″ |
| Counter |
0~99,999 |
| Timer |
30min |
| Dimension(W×D×H) |
65×31×57 cm |
| Weight(approx.) |
68kg |
| Power |
1 phase, AC220V, 6A |
| Model |
SR-303 |
| Tension Weight |
2~1/2 lb, 2~1 lb,1~2 lb |
