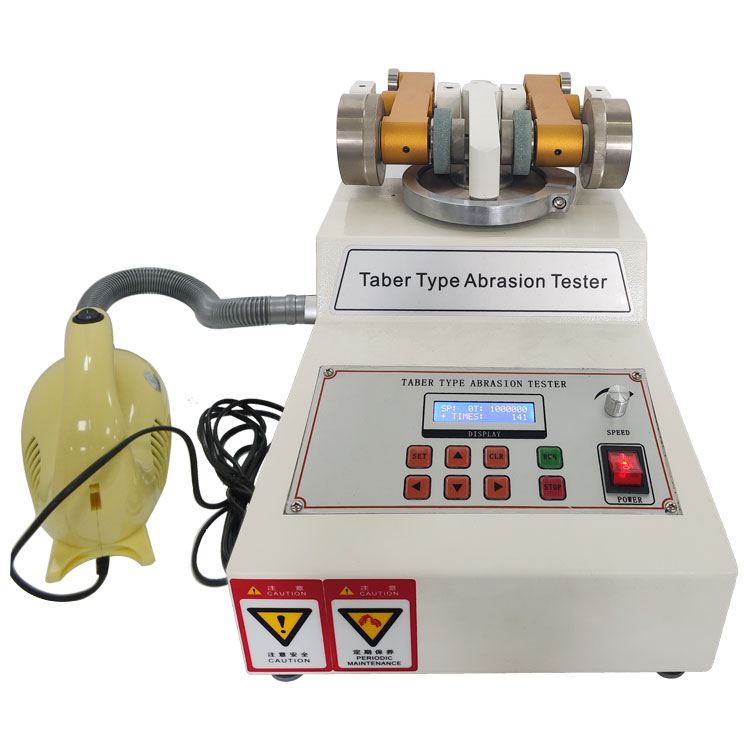

Industry-Standard Abrasion Testing for Diverse Materials
The SR-322 Taber Abrasion Tester performs precise wear resistance tests across 50+ materials, including leather, paints, flooring, and automotive coatings. Compliant with ASTM D1044, JIS K7204, and 8+ global standards, it features adjustable speed (1–100 RPM), vacuum debris removal, and interchangeable abrasive wheels.
Key Features
✔ 4 Load Options: 250g, 500g, 750g, 1000g weights (2 of each included)
✔ Multi-Wheel System: Supports CS-17, H18, S32, and 10+ wheel types (optional)
✔ Programmable LCD: 6-digit counter (0–999,999 cycles), auto-stop function
✔ Debris Management: Built-in vacuum cleaner for contamination-free testing
Technical Specifications
| Parameter | Specification |
|---|---|
| Abrasion Wheels | 2″ diameter (standard: rubber/China brand) |
| Speed | 1–100 RPM (default: 60 RPM) |
| Sample Size | Ø110mm, 7.5mm center hole |
| Power | AC220V/50Hz (customizable) |
| Standards | ASTM D1044, D4157, JIS K7204, etc. |
Industry Applications
Automotive & Aerospace:
- Coatings for dashboards/ornaments
- Anodized aluminum wear resistance
Textiles & Flooring:
- Carpet durability testing
- Laminate flooring abrasion resistance
Consumer Goods:
- Smartphone case wear (plastic/leather)
- Furniture veneer scratch tests
Testing Methodology
- Mount Sample: Secure Ø110mm specimen with center hole
- Select Wheel: Choose CS-17 (general) or H18 (heavy-duty)
- Apply Load: 250g–1000g based on material hardness
- Set Parameters: Adjust RPM (1–100) and cycle count
- Initiate Test: Vacuum removes debris during rotation
- Evaluate: Weight loss measurement or visual inspection
Image Optimization
File Name: sunrise-sr322-taber-abrasion-tester.jpg
ALT Text: “SR-322 Taber Abrasion Tester evaluating automotive coating wear with CS-17 wheel”
Complete Package Includes
- Main unit with LCD controller
- Standard wheels (rubber/China brand)
- Weights: 250g, 500g, 750g (2 each)
- Vacuum cleaner + abrasive paper (3 pcs)
- Optional: Zinc plates, sandpaper strips, Taber-brand wheels
Model Comparison
| Model | Key Difference |
|---|---|
| SR-322A | Digital display, standard model |
| SR-322B | Enhanced design, same functions |

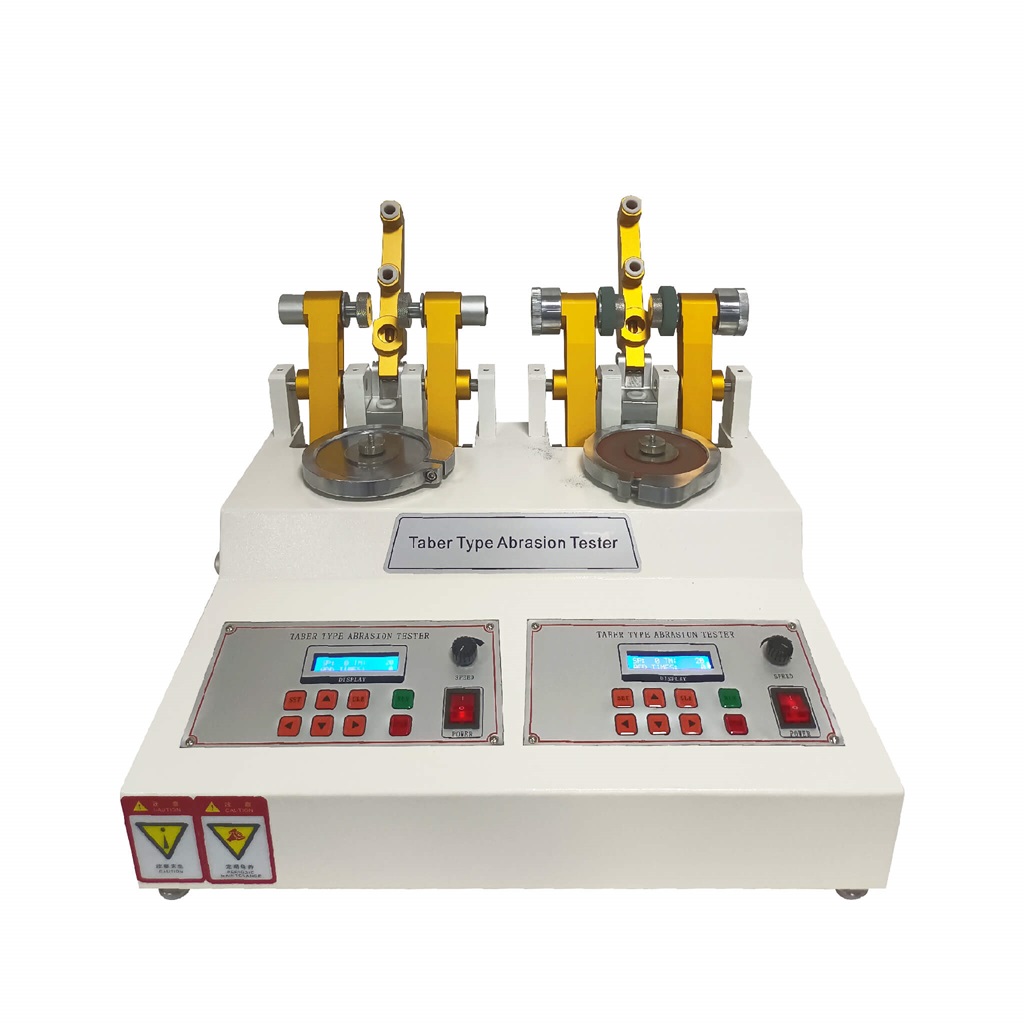

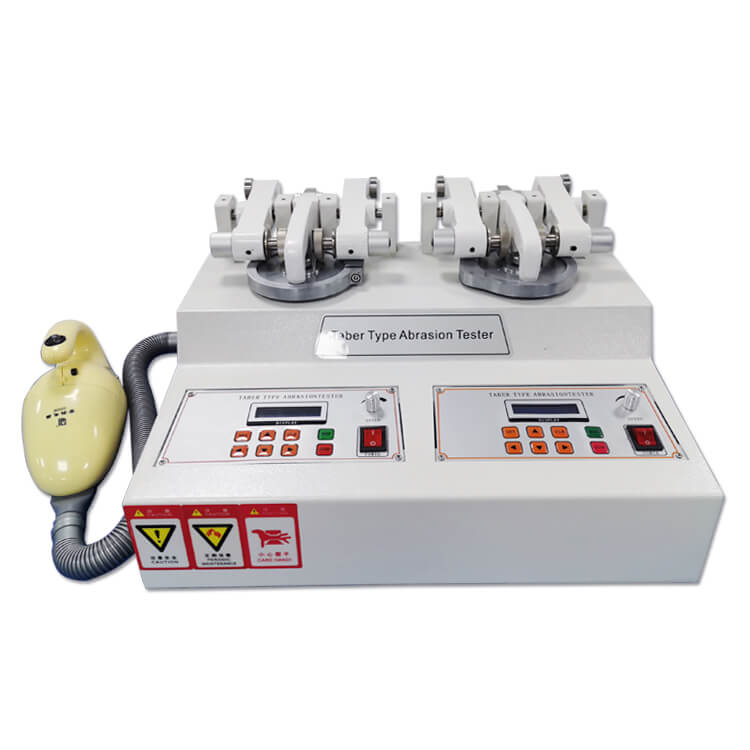

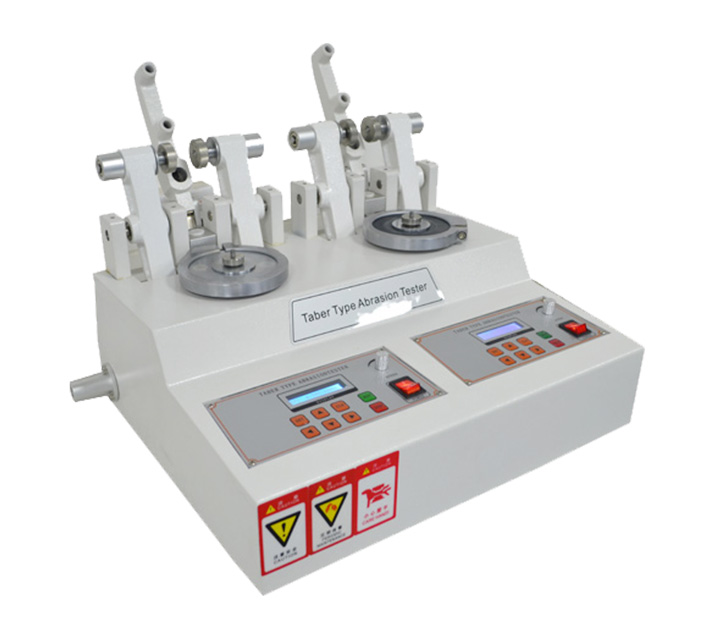

| SR-322C | Dual-station for high-throughput |
Why Choose This Tester?
Global Compliance: Pre-configured for ASTM/JIS/ISO
Flexible Configs: 10+ wheel types + customizable loads
Research-Grade: 0.1 RPM speed increments for precision
After-Sales Support
- 24-month warranty on motor and LCD
- Free ASTM/JIS test protocol templates
- Priority shipping (3-day dispatch for in-stock units)
