Introduction

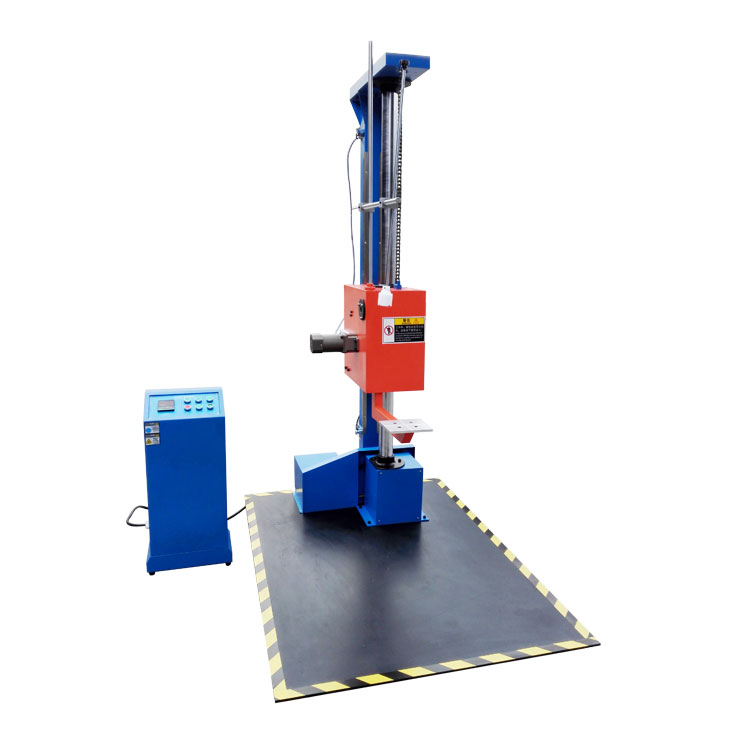

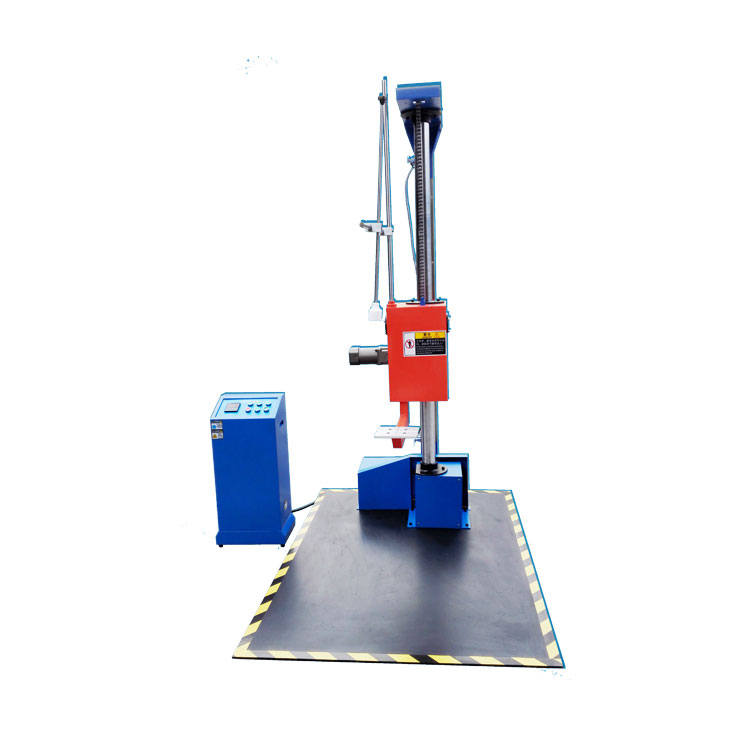

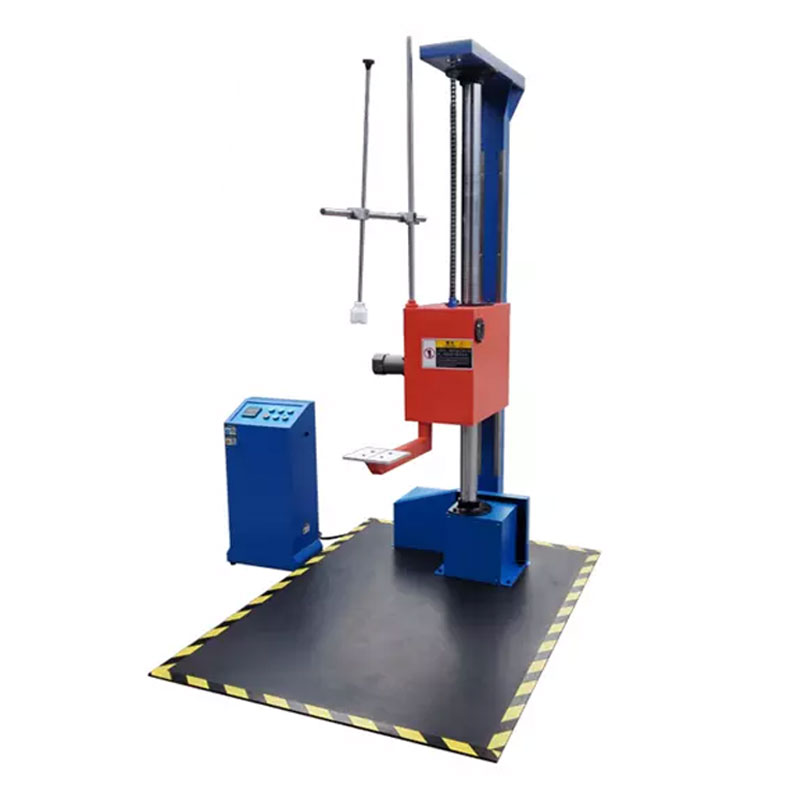

The SR-604S Single Wing Package Drop Tester, precision-engineered by Dongguan Sunrise Import & Export Co., Ltd, is a versatile instrument designed to evaluate the impact resistance of packaged products during handling and transportation. Compliant with international standards such as ISO 2248-72(E), GB/T 4857.5, JIS Z0202-87, and IEC 68-2-27, the SR-604S simulates drops to assess damage to contents and packaging reliability, focusing on edges, corners, and surfaces. Ideal for industries including electronics, logistics, toys, and food, it supports regular packaging like boxes up to 80 kg. Featuring a single-wing swing arm with >3G/sec acceleration, electric reset, digital height display, and pneumatic safety mechanisms, the SR-604S ensures precise, safe, and efficient testing to minimize transit losses and optimize packaging designs.
Why Choose the SR-604S Single Wing Package Drop Tester?
The SR-604S stands out with its 300–1500 mm drop height range (optional 300–2000 mm), ≤2% height accuracy, and 80 kg max load capacity, tailored for rigid packaging. Its single-wing mechanism delivers high-impact drops, while dual-column guides and a hydraulic buffer ensure smooth, low-noise operation. The pneumatic chain and damping screw lifting system enhance safety by preventing unexpected arm movement. With a test space of 1000 × 1000 × 1000 mm and a compact footprint (1200 × 1700 × 2360 mm, ~390 kg), it’s powered by AC 380V, 50Hz and compressed air (0.5–0.7 MPa). Backed by a 12-month warranty, lifetime support, and professional packaging, the SR-604S offers exceptional reliability and cost-effectiveness for quality assurance.
Key Features of the SR-604S Single Wing Package Drop Tester
The SR-604S is equipped with advanced features for accurate and secure drop testing:
- Single-Wing Design: Unique swing arm achieves >3G/sec acceleration for realistic impact simulation.
- Adjustable Drop Height: 300–1500 mm (or 300–2000 mm) with ≤2% accuracy via digital display (optional height indicator).
- High Load Capacity: Supports up to 80 kg, perfect for boxes and rigid packaging.
- Safe and Stable Operation: Pneumatic chain, damping screw, and dual-column guides prevent arm glide and ensure reliability.
- Low-Noise Performance: Hydraulic buffer absorbs residual force for quiet, smooth drops.
- Comprehensive Testing: Evaluates edges, corners, and surfaces with ≤5° angle tolerance.
- Durable Build: Robust frame with extensible support bracket and 1200 × 1700 mm base plate, weighing ~390 kg.
- Electric Reset: Streamlines testing with automated arm repositioning for efficiency.
- User-Friendly Controls: Digital interface simplifies height adjustments and operation.
- Global Standards Compliance: Meets ISO 2248-72(E), GB/T 4857.5, JIS Z0202-87, IEC 68-2-27, and more.
- Customizable Options: Available in multiple colors, power configurations (380V or user-specified), and height ranges.
Applications of the SR-604S Single Wing Package Drop Tester
The SR-604S is tailored for industries requiring reliable package drop testing for rigid containers:
- Electronics Industry: Tests packaging for components and devices, ensuring drop resistance during handling.
- Logistics and E-Commerce: Validates box packaging for safe transport of goods, reducing damage claims.
- Toy Manufacturing: Ensures carton durability to protect contents and meet safety standards.
- Food and Beverage: Verifies packaging integrity for boxed perishables during shipping.
- Research Laboratories: Analyzes packaging designs to optimize impact resistance and reduce transit losses.
- Quality Control: Confirms container reliability (edges, corners, surfaces) for regulatory compliance and customer trust.
By simulating real-world drops, the SR-604S helps businesses prevent product damage, refine packaging solutions, and enhance market reliability.
Technical Specifications
| Item | Specifications |
|---|---|
| Model | SR-604S Single Wing Package Drop Tester |
| Drop Height Range | 300–1500 mm (optional 300–2000 mm) |
| Display | Digital display (optional digital height indicator) |
| Drop Method | Free drop |
| Height Accuracy | ≤2% of set value |
| Max Load | 80 kg |
| Test Space (L×W×H) | 1000 × 1000 × 1000 mm |
| Angle Tolerance | ≤5° |
| Motor | 1/2 HP |
| Dimensions (W×D×H) | 1200 × 1700 × 2360 mm (or 2750 mm for 2000 mm height) |
| Weight | Approx. 390 kg (or 480 kg for 2000 mm height) |
| Base Plate Size | 1200 × 1700 mm |
| Sample Plate Size | 180 × 180 × 10 mm |
| Power Supply | AC 380V, 50Hz (or user-specified), compressed air 0.5–0.7 MPa |
| Standards | ISO 2248-72(E), GB/T 4857.5, JIS Z0202-87, IEC 68-2-27 |
Comparison: SR-604S vs. SR-604D
| Feature | SR-604S (Single Wing) | SR-604D (Double Wing) |
|---|---|---|
| Drop Height | 300–1500 mm (or 2000 mm) | 400–1500 mm (or 2000 mm) |
| Max Load | 80 kg | 70 kg |
| Test Space | 1000 × 1000 × 1000 mm | 800 × 800 × 800 mm |
| Base Plate Size | 1200 × 1700 mm | 1400 × 1200 mm |
| Sample Plate Size | 180 × 180 × 10 mm | 700 × 350 × 10 mm (2 pieces) |
| Sample Type | Regular packaging (e.g., boxes) | Soft packages (e.g., gunny bags) |
| Reset Mode | Electric reset | Manual reset |
| Performance Stability | 98% | 90% |
| Weight | ~390 kg (or 480 kg) | ~330 kg (or 450 kg) |
The SR-604S is optimized for rigid boxes with higher stability and electric reset, while the SR-604D suits softer packages, offering flexibility for diverse testing needs.
Benefits of Investing in the SR-604S Single Wing Package Drop Tester
The SR-604S delivers significant advantages for businesses focused on packaging quality:
- Realistic Impact Simulation: Single-wing design with >3G/sec acceleration mirrors real-world drops.
- Superior Precision: ≤2% height accuracy and ≤5° angle tolerance ensure reliable test results.
- Versatile Applications: Tests rigid packaging across electronics, logistics, and food industries.
- Enhanced Safety: Pneumatic chain, hydraulic buffer, and dual guides minimize operational risks.
- Time Efficiency: Electric reset speeds up testing cycles, boosting productivity.
- Cost-Effective Design: Durable build and low maintenance reduce long-term expenses.
- Global Compliance: Meets ISO 2248, GB/T 4857.5, and IEC 68-2-27 for international markets.
- User-Friendly Operation: Digital controls and automated reset simplify use for all skill levels.
- Improved Packaging Reliability: Identifies weaknesses, reducing transit damage and returns.
- Robust Support: 12-month warranty, lifetime technical guidance, manuals, and videos.
- Customizable Aesthetics: Multiple color options enhance workspace appeal.
The SR-604S is a strategic investment for ensuring packaging durability and market competitiveness.
How It Works

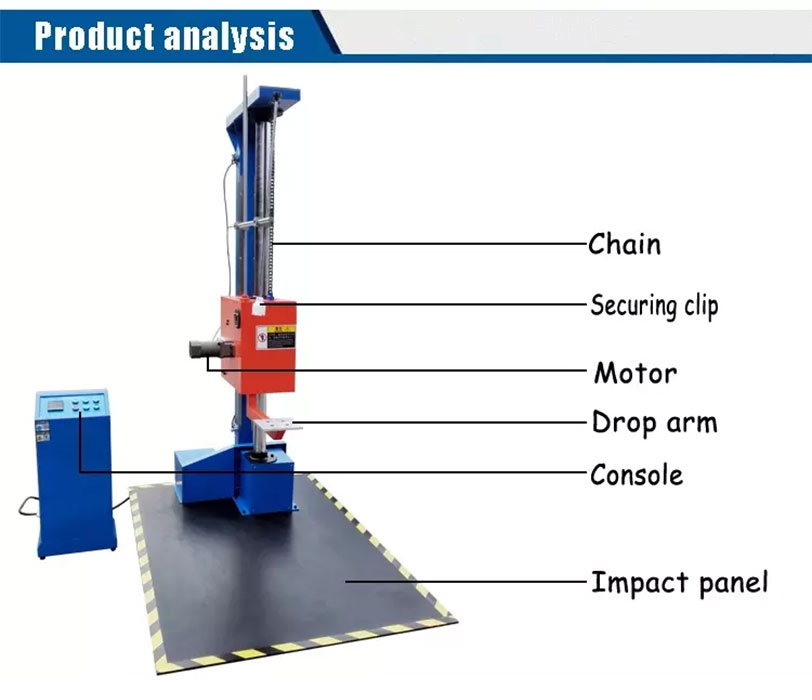

The SR-604S simulates drops using its single-wing swing arm mechanism, controlled by a digital control panel. The process is intuitive:
- Set up the tester on a stable surface with compressed air (0.5–0.7 MPa) connected.
- Secure the package (up to 80 kg) on the 180 × 180 mm sample plate in the test space.
- Adjust the drop height (300–1500 mm) using the digital display.
- Select the drop orientation (edge, corner, or surface).
- Release the package for a free drop, with the hydraulic buffer ensuring smooth arm movement.
- The arm automatically resets electrically, readying the next test.
- Inspect the package and contents for damage post-drop.
The pneumatic chain, damping screw, and dual-column guides ensure safe, controlled drops, while the digital interface streamlines setup and monitoring.
Why Dongguan Sunrise?
Partnering with Dongguan Sunrise Import & Export Co., Ltd, located at No. 6, Chongwen Lane 4, Xiang Wei, Dalang Town, Dongguan City, Guangdong, China, guarantees quality and trust:
- Precision Engineering: High-quality testers designed for accuracy and longevity.
- Global Expertise: Trusted by electronics, logistics, and toy industries worldwide.
- Comprehensive Support: 12-month warranty, lifetime technical advice, manuals, and video guides.
- Secure Packaging: Standard export wooden cases with stretch film and strong fixings.
- Customization Flexibility: Tailored height ranges, power options, and colors to meet your needs.
Sunrise’s dedication to excellence makes the SR-604S a reliable choice for drop testing.
Customer Success Stories
- Electronics Manufacturer, Japan: The SR-604S reduced packaging damage by 25%, improving component safety for global shipments.
- E-Commerce Retailer, USA: By optimizing box designs, the SR-604S cut return rates, enhancing customer satisfaction.
- Food Packager, Brazil: The SR-604S ensured carton reliability, securing contracts with major distributors.
These successes underscore the SR-604S’s role in driving quality, efficiency, and business growth.
After-Sales Service
Dongguan Sunrise provides exceptional support for the SR-604S:
- 12-Month Warranty: Free components for non-human damage within 12 months.
- Lifetime Guidance: Technical support, manuals, videos, and maintenance advice.
- Responsive Service: Replies within 48 hours, solutions within 3 working days.
- On-Site Option: Available with customer-covered travel expenses.
- Usage Tips: Guidance for long-term storage and optimal performance.
This ensures the SR-604S remains a valuable asset for years.
Contact Us for Your SR-604S Single Wing Package Drop Tester
Ready to enhance your packaging testing with the SR-604S? Contact us for a quote, customization options, or a live demo of the SR-604S Single Wing Package Drop Tester:
- Phone/WeChat/WhatsApp: +86 15992719785 (Jess)
- Email: [email protected]
- Website: www.sunrisedg.com
Transform your quality assurance with the SR-604S Single Wing Package Drop Tester—precision, efficiency, and reliability in every drop. Reach out today to learn more!
