Introduction

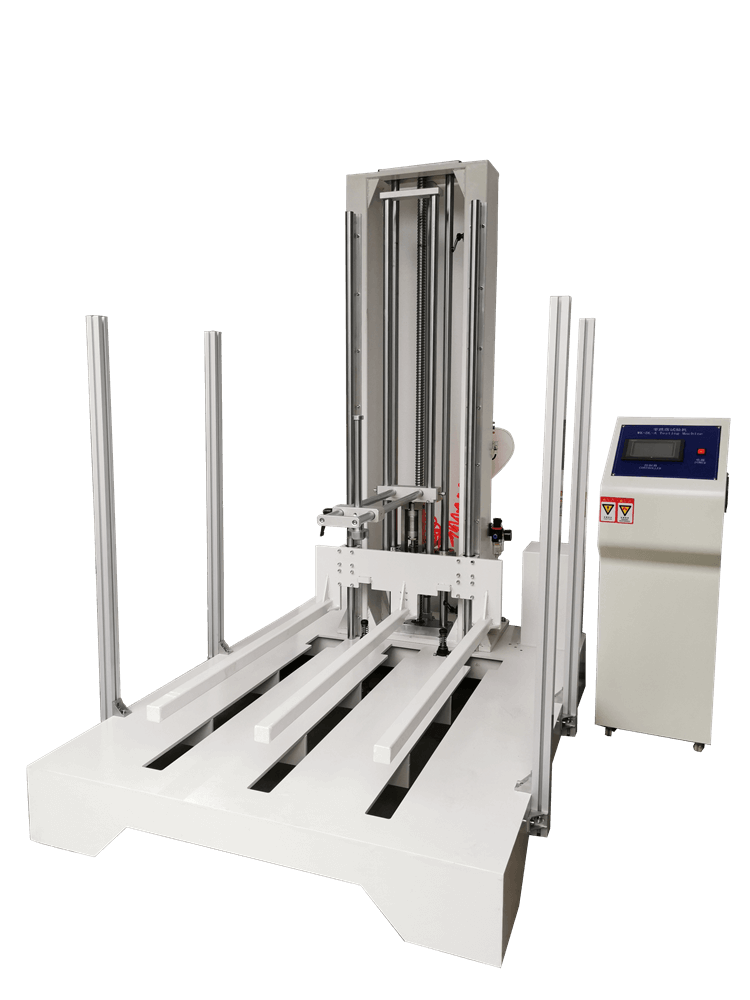

The SR-604L Package Zero Height Drop Tester, meticulously crafted by Dongguan Sunrise Import & Export Co., Ltd, is a specialized instrument designed to evaluate the drop resistance of large packaged goods during transportation and handling. Compliant with standards such as ISO 2248-72(E), GB/T 4857.5, JIS Z0202-87, IEC 68-2-27, ASTM D5276, GB/T 1019, and GB/T 9384, the SR-604L simulates low-height drops (0–120 cm) to assess packaging integrity for heavy items up to 300 kg. Ideal for industries like electronics, appliances, furniture, and logistics, it tests edges, angles, and surfaces using a servo motor-driven E-fork bracket that ensures free-fall conditions (>3g acceleration). With PLC touch screen control, pneumatic accelerators, and induction safety devices, the SR-604L delivers precise, safe, and customizable testing to optimize packaging designs and minimize transit damage.

Why Choose the SR-604L Package Zero Height Drop Tester?

The SR-604L excels with its 0–120 cm adjustable drop height, 100–300 kg weight capacity (customizable), and 1000 × 1000 × 1000 mm to 1200 × 1200 × 1200 mm test space, tailored for large packages. Its servo motor and cylinder drive system, combined with pneumatic accelerators and Taiwan-imported linear sliders, ensures smooth, high-speed drops with >1G acceleration for true free-fall simulation. The touch screen display simplifies height setting and monitoring, while upper and lower induction protection devices enhance safety. Built with 45# solid steel for the impact plate and bracket, the SR-604L is durable, measuring 1900 × 1700 × 2800 mm (or larger for heavier models) and powered by 3-phase AC 380V, 50Hz with >0.7 MPa air pressure. Backed by a 12-month warranty, lifetime support, and professional packaging, it offers unmatched reliability and value.

Key Features of the SR-604L Package Zero Height Drop Tester

The SR-604L is engineered with advanced features for precise and efficient drop testing:

• Zero to Low Drop Height: Adjustable 0–120 cm (customizable) to simulate real-world low-height drops.
• High Weight Capacity: Supports 100 kg (SR-604L-100), 200 kg (SR-604L-200), or 300 kg (SR-604L-300), customizable.
• Spacious Test Area: 1000 × 1000 × 1000 mm or 1200 × 1200 × 1200 mm, accommodating large packages.
• Free-Fall Simulation: E-fork bracket achieves >3g acceleration, separating from the specimen for true free fall.
• Advanced Control: PLC and touch screen interface for direct height setting and precise operation.
• Safety Mechanisms: Upper/lower induction devices and robust design prevent accidents.
• Durable Construction: 45# solid steel impact plate and welded bracket ensure long-term reliability.
• Smooth Transmission: Pneumatic accelerators, Taiwan linear sliders, copper guide sleeves, and 45# steel components.
• Flexible Testing Modes: Tests edges, angles, and surfaces for comprehensive package evaluation.
• Global Standards Compliance: Meets ISO 2248, GB/T 4857.5, ASTM D5276, JIS Z0202-87, and more.
• Customizable Options: Weight range, test space, and power supply tailored to user needs.

Applications of the SR-604L Package Zero Height Drop Tester

The SR-604L is designed for industries and settings requiring robust large package drop testing:

• Electronics Industry: Ensures packaging protects heavy devices like TVs and servers during handling.
• Appliance Manufacturing: Tests packaging for refrigerators, washers, and other bulky goods.
• Furniture Industry: Validates packaging durability for tables, cabinets, and sofas during transport.
• Logistics and Shipping: Assesses large cartons and pallets to minimize damage in supply chains.
• Research Laboratories: Supports packaging innovation by analyzing drop resistance for heavy items.
• Quality Control: Verifies packaging compliance with standards like ASTM D5276 for regulatory approval.

By simulating low-height drops, the SR-604L helps businesses reduce product damage, optimize packaging, and ensure safe delivery across global markets.

Technical Specifications

Benefits of Investing in the SR-604L Package Zero Height Drop Tester

The SR-604L offers significant advantages for businesses prioritizing large package reliability:

• Realistic Low-Height Testing: 0–120 cm range mimics handling and transport drops for heavy goods.
• High Capacity: Supports up to 300 kg, ideal for large appliances, furniture, and electronics.
• Uncompromising Precision: Servo motor control ensures accurate drop heights and free-fall conditions.
• Versatile Applications: Tests edges, angles, and surfaces, covering diverse packaging needs.
• Enhanced Safety: Induction protection devices and robust steel construction minimize risks.
• Cost Efficiency: Durable design and low maintenance reduce long-term expenses.
• Global Compliance: Meets ISO 2248, ASTM D5276, and GB/T 4857.5 for international markets.
• User-Friendly Operation: Touch screen and PLC simplify setup and monitoring for all skill levels.
• Customizable Solutions: Adjustable weight, space, and power options meet specific requirements.
• Improved Packaging Quality: Identifies weaknesses, reducing transit damage and customer complaints.
• Comprehensive Support: 12-month warranty, lifetime technical guidance, manuals, and videos.

The SR-604L is a strategic asset for optimizing packaging performance and ensuring safe delivery of large goods.

How It Works

The SR-604L uses a servo motor-driven E-fork bracket to lift and drop large packages, ensuring free-fall conditions. The process is straightforward:

1. Set up the tester on a stable surface with compressed air (>0.7 MPa) connected.
2. Place the package (up to 300 kg) on the E-fork bracket, balancing it for plane, edge, or angle testing.
3. Set the drop height (0–120 cm) via the PLC touch screen interface.
4. Initiate the test, where the bracket moves downward at >1G acceleration, separating from the package for a free fall.
5. The package impacts the 45# steel plate, simulating real-world drops.
6. Inspect the package and contents for damage post-drop.
7. Repeat for different orientations or heights as needed.

The induction protection devices ensure safe operation, while the touch screen provides real-time height control and monitoring, making the SR-604L efficient and accessible.

Why Dongguan Sunrise?

Partnering with Dongguan Sunrise Import & Export Co., Ltd, located at No. 6, Chongwen Lane 4, Xiang Wei, Dalang Town, Dongguan City, Guangdong, China, guarantees quality and reliability:

• Precision Engineering: High-quality testers built for accuracy and durability.
• Global Expertise: Trusted by electronics, furniture, and logistics industries worldwide.
• Robust Support: 12-month warranty, lifetime technical advice, operation manuals, and videos.
• Secure Packaging: Standard export wooden cases with stretch film and strong fixings.
• Customization Flexibility: Tailored weight ranges, test spaces, and power options to meet your needs.

Sunrise’s commitment to excellence makes the SR-604L a dependable choice for zero-height drop testing.

Customer Success Stories

• Appliance Manufacturer, China: The SR-604L-200 optimized refrigerator packaging, reducing shipping damage by 28% and boosting customer trust.
• Furniture Exporter, USA: By validating pallet designs, the SR-604L-300 cut transit losses, securing a major retail contract.
• Logistics Provider, Japan: The SR-604L-100 improved carton durability, enhancing efficiency and client satisfaction.

These successes highlight the SR-604L’s impact on quality, cost savings, and business growth.

After-Sales Service

Dongguan Sunrise provides exceptional support for the SR-604L:

• 12-Month Warranty: Free components for non-human damage within 12 months.
• Lifetime Guidance: Technical support, manuals, videos, and maintenance advice.
• Responsive Service: Replies within 48 hours, solutions within 3 working days.
• On-Site Option: Available with customer-covered travel expenses.
• Usage Tips: Guidance for long-term storage and optimal performance.

This ensures the SR-604L remains a reliable investment for years.

Contact Us for Your SR-604L Package Zero Height Drop Tester

Ready to enhance your large package testing with the SR-604L? Contact us for a quote, customization options, or a live demo of the SR-604L Package Zero Height Drop Tester:

• Phone/WeChat/WhatsApp: +86 15992719785 (Jess)
• Email: [email protected]
• Website: www.sunrisedg.com

Transform your quality assurance with the SR-604L Package Zero Height Drop Tester—precision, safety, and reliability for every drop. Reach out today to learn more!
