Introduction

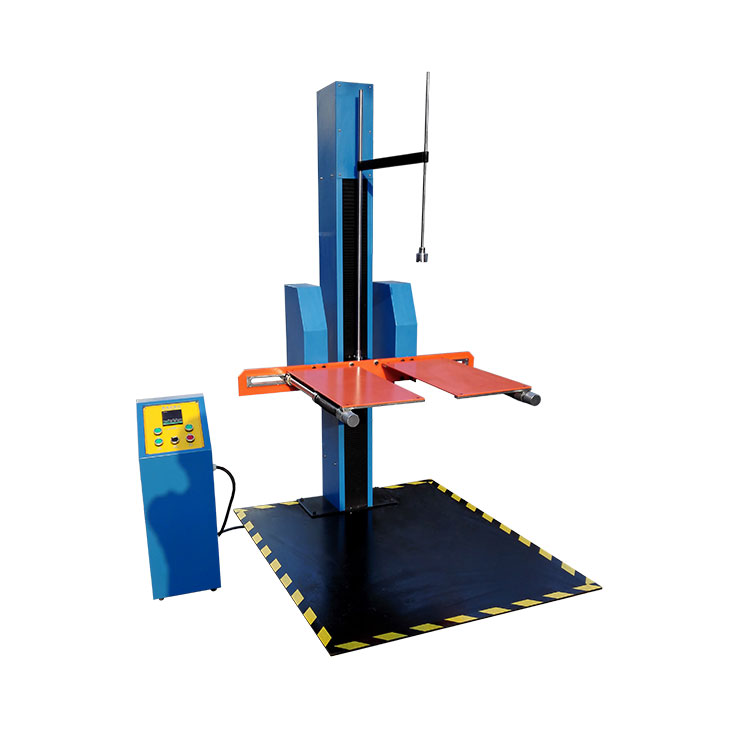

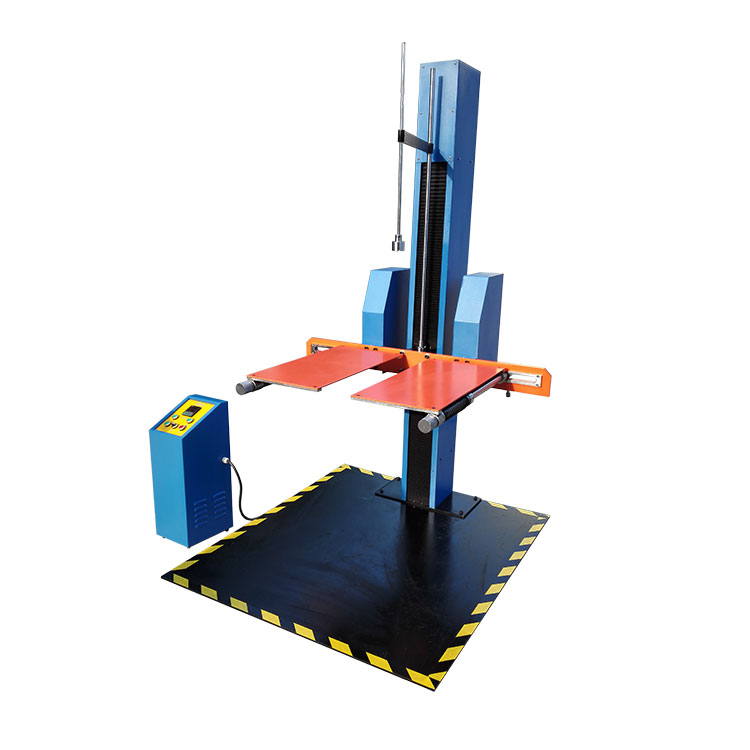

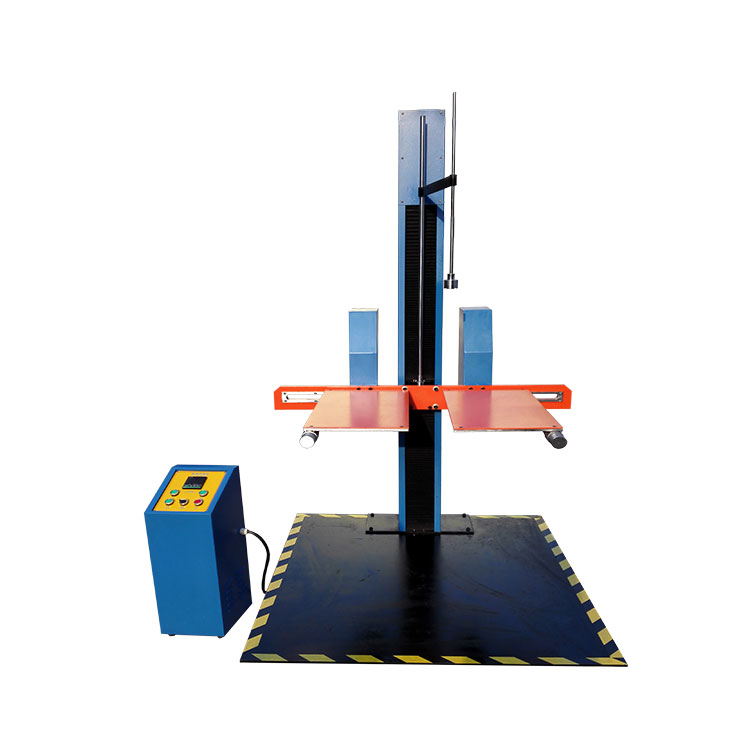

The SR-604D Double Wings Package Drop Tester, expertly designed by Dongguan Sunrise Import & Export Co., Ltd, is a robust instrument for evaluating the impact resistance of packaged products during handling and transportation. Compliant with standards such as ISO 2248-72(E), GB/T 4857.5, JIS Z0202-87, and IEC 68-2-27, this tester simulates drops to assess damage to contents and packaging integrity. Ideal for industries like electronics, logistics, toys, and food, the SR-604D tests edges, corners, and surfaces of packages up to 70 kg, ensuring reliability for soft packages like gunny bags. With its unique double-wing design, digital height display, and pneumatic safety features, the SR-604D delivers precise, safe, and efficient testing to minimize transit losses and enhance product quality.
Why Choose the SR-604D Double Wings Package Drop Tester?
The SR-604D excels with its 400–1500 mm drop height range (optional 400–2000 mm), ≤3% height accuracy, and 70 kg max load capacity, tailored for soft packaging. Its double-wing mechanism achieves >3G/sec acceleration for realistic impact simulation, while dual-column guides and a hydraulic buffer ensure smooth, low-noise operation. The pneumatic chain and damping screw lifting system prevent unexpected arm movement, enhancing safety. With a test space of 800 × 800 × 800 mm and a compact footprint (1200 × 1400 × 2100 mm, ~330 kg), it’s powered by AC 380V, 50Hz and compressed air (0.5–0.7 MPa). Backed by a 12-month warranty, lifetime support, and professional packaging, the SR-604D offers unmatched reliability and value.
Key Features of the SR-604D Double Wings Package Drop Tester
The SR-604D is engineered with advanced features for precise and safe drop testing:
- Double-Wing Design: Unique swing arm mechanism delivers >3G/sec acceleration for accurate impact simulation.
- Adjustable Drop Height: 400–1500 mm (or 400–2000 mm) with ≤3% accuracy via digital display (optional height indicator).
- High Load Capacity: Supports up to 70 kg, ideal for soft packages like gunny bags.
- Safe Operation: Pneumatic chain and damping screw prevent unexpected arm glide, with dual-column guides for stability.
- Low-Noise Performance: Hydraulic buffer absorbs residual force, ensuring smooth and quiet drops.
- Flexible Testing: Tests edges, corners, and surfaces with ≤5° angle tolerance for comprehensive evaluation.
- Robust Construction: Durable frame with extensible support bracket and baseboard, weighing ~330 kg.
- User-Friendly Interface: Digital controls simplify height adjustments and test setup.
- Global Standards Compliance: Meets ISO 2248-72(E), GB/T 4857.5, JIS Z0202-87, IEC 68-2-27, and more.
- Customizable Options: Available in multiple colors and power configurations (380V or user-specified).
Applications of the SR-604D Double Wings Package Drop Tester
The SR-604D is tailored for industries and settings requiring reliable package drop testing:
- Electronics Industry: Tests packaging for components, ensuring drop resistance during handling.
- Logistics and Shipping: Validates soft packaging like gunny bags for safe transport of goods.
- Toy Manufacturing: Assesses package durability to protect contents and meet safety standards.
- Food and Beverage: Ensures packaging withstands drops, maintaining product integrity for perishables.
- Research Laboratories: Analyzes packaging designs to optimize impact resistance and reduce losses.
- Quality Control: Verifies container reliability (edges, corners, surfaces) for regulatory compliance and customer satisfaction.
By simulating real-world drops, the SR-604D helps businesses prevent damage, refine packaging solutions, and enhance product reliability across markets.
Technical Specifications
| Item | Specifications |
|---|---|
| Model | SR-604D Double Wings Package Drop Tester |
| Drop Height Range | 400–1500 mm (optional 400–2000 mm) |
| Display | Digital display (optional digital height indicator) |
| Drop Method | Free drop |
| Height Accuracy | ≤3% of set value |
| Max Load | 70 kg |
| Test Space (L×W×H) | 800 × 800 × 800 mm |
| Angle Tolerance | ≤5° |
| Motor | 1/2 HP |
| Dimensions (W×D×H) | 1200 × 1400 × 2100 mm (or 2450 mm for 2000 mm height) |
| Weight | Approx. 330 kg (or 450 kg for 2000 mm height) |
| Power Supply | AC 380V, 50Hz (or user-specified), compressed air 0.5–0.7 MPa |
| Standards | ISO 2248-72(E), GB/T 4857.5, JIS Z0202-87, IEC 68-2-27 |
Comparison: SR-604D vs. SR-604S
| Feature | SR-604D (Double Wing) | SR-604S (Single Wing) |
|---|---|---|
| Drop Height | 400–1500 mm | 300–1500 mm |
| Max Load | 70 kg | 80 kg |
| Test Space | 800 × 800 × 800 mm | 1000 × 1000 × 1000 mm |
| Base Plate Size | 1400 × 1200 mm | 1200 × 1700 mm |
| Sample Type | Soft packages (e.g., gunny bags) | Regular packaging (e.g., boxes) |
| Reset Mode | Manual reset | Electric reset |
| Performance Stability | 90% | 98% |
| Weight | ~330 kg | ~390 kg |
| Sample Plate Size | 700 × 350 × 10 mm (2 pieces) | 180 × 180 × 10 mm |
The SR-604D is optimized for soft packages, while the SR-604S suits rigid boxes, offering flexibility for diverse needs.
Benefits of Investing in the SR-604D Double Wings Package Drop Tester
The SR-604D offers compelling advantages for businesses focused on packaging reliability:
- Realistic Impact Testing: Double-wing design with >3G/sec acceleration mimics real-world drops.
- High Precision: ≤3% height accuracy and ≤5° angle tolerance ensure reliable results.
- Versatile Applications: Tests soft packages across electronics, food, and logistics industries.
- Enhanced Safety: Pneumatic chain, hydraulic buffer, and dual guides minimize risks.
- Cost Efficiency: Durable build and low maintenance reduce long-term costs.
- Global Compliance: Meets ISO 2248, GB/T 4857.5, and IEC 68-2-27 for international markets.
- Space-Saving Design: Compact footprint fits labs, warehouses, or factories.
- Improved Packaging Quality: Identifies weaknesses, reducing transit damage and returns.
- Robust Support: 12-month warranty, lifetime technical guidance, manuals, and videos.
- Customizable Aesthetics: Multiple color options enhance workspace appeal.
The SR-604D is a strategic tool for optimizing packaging performance and ensuring safe delivery.
How It Works
The SR-604D simulates drops using its double-wing swing arm mechanism, controlled by a digital console. The process is simple:
- Set up the tester on a stable surface with compressed air (0.5–0.7 MPa) connected.
- Place the package (up to 70 kg) in the test space, securing it to the 700 × 350 mm sample plates.
- Adjust the drop height (400–1500 mm) using the digital display.
- Select the drop orientation (edge, corner, or surface).
- Release the package for a free drop, with the hydraulic buffer ensuring smooth arm movement.
- Inspect the package and contents for damage post-drop.
- Repeat as needed to evaluate different angles or heights.
The pneumatic chain and damping screw ensure safe, controlled operation, while the digital interface simplifies setup and monitoring.
Why Dongguan Sunrise?
Partnering with Dongguan Sunrise Import & Export Co., Ltd, located at No. 6, Chongwen Lane 4, Xiang Wei, Dalang Town, Dongguan City, Guangdong, China, guarantees quality and trust:
- Precision Engineering: High-quality testers built for accuracy and durability.
- Global Expertise: Trusted by electronics, logistics, and toy industries worldwide.
- Comprehensive Support: 12-month warranty, lifetime technical advice, manuals, and video guides.
- Secure Packaging: Standard export wooden cases with stretch film and strong fixings.
- Customization Flexibility: Tailored height ranges, power options, and colors to meet your needs.
Sunrise’s dedication to excellence makes the SR-604D a reliable choice for drop testing.
Customer Success Stories
- Electronics Supplier, Taiwan: The SR-604D reduced component damage by 30%, improving packaging for global shipments.
- Logistics Firm, Germany: By optimizing gunny bag designs, the SR-604D cut transit losses, securing a major client contract.
- Toy Manufacturer, USA: The SR-604D ensured packaging met safety standards, boosting brand trust and sales.
These successes highlight the SR-604D’s impact on quality, efficiency, and business growth.
After-Sales Service
Dongguan Sunrise provides exceptional support for the SR-604D:
- 12-Month Warranty: Free components for non-human damage within 12 months.
- Lifetime Guidance: Technical support, manuals, videos, and maintenance advice.
- Responsive Service: Replies within 48 hours, solutions within 3 working days.
- On-Site Option: Available with customer-covered travel expenses.
- Usage Tips: Guidance for long-term storage and optimal performance.
This ensures the SR-604D remains a valuable asset for years.
Contact Us for Your SR-604D Double Wings Package Drop Tester
Ready to enhance your packaging testing with the SR-604D? Contact us for a quote, customization options, or a live demo of the SR-604D Double Wings Package Drop Tester:
- Phone/WeChat/WhatsApp: +86 15992719785 (Jess)
- Email: [email protected]
- Website: www.sunrisedg.com
Transform your quality assurance with the SR-604D Double Wings Package Drop Tester—precision, safety, and reliability in every drop. Reach out today to learn more!
