Introducing the LHVS-1000Z Vickers Hardness Tester

The LHVS-1000Z Digital Micro Vickers Hardness Tester, engineered by Sunrise Test Equipment Co., Ltd, is a semi-automatic solution for precision hardness testing. It uses the Vickers method to assess small and thin materials. This tester is ideal for labs needing reliable micro-level analysis.

Why Choose This Vickers Hardness Tester?

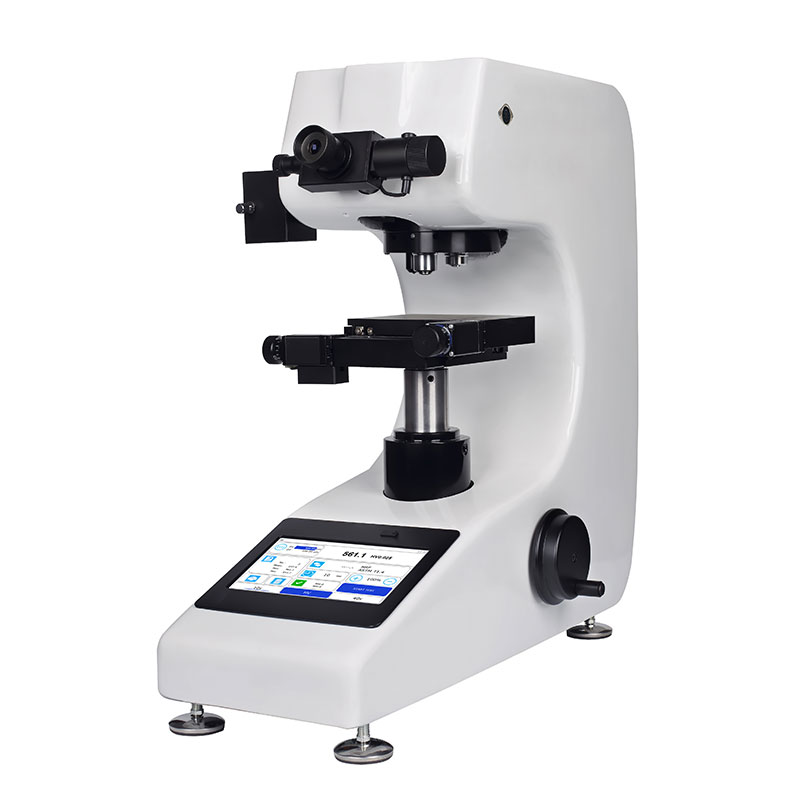

This tester features a full-color OLED touch screen for intuitive control. Its motorized X-Y table enables continuous, automated measurements. With advanced optics and software, it delivers unmatched accuracy for delicate samples.

Vickers Hardness Tester Standards Compliance

The LHVS-1000Z meets GB/T 4340 and ISO 6507 for Vickers testing. It complies with EN ISO 6507, ASTM E-384, and JJG151 standards. These ensure globally accepted precision and reliability.

Vickers Hardness Tester Test Forces

It offers eight test forces: 10 gf (0.098 N), 25 gf (0.245 N), 50 gf (0.49 N), 100 gf (0.98 N), 200 gf (1.96 N), 300 gf (2.94 N), 500 gf (4.9 N), and 1000 gf (9.8 N). This range suits micro-scale testing needs.

Vickers Hardness Tester Measuring Capabilities

The measuring range spans 8-2900 HV, covering soft to hard materials. A minimum measuring unit of 0.03125 μm ensures fine resolution. It supports conversion to Rockwell, Superficial Rockwell, and Brinell scales.

Vickers Hardness Tester Optical System

Test magnifications are 400X for measuring and 100X for observation. A 10X electric eyepiece and 10X/40X objectives provide clear visuals. The light source adjusts across 20 brightness levels for optimal clarity.

Vickers Hardness Tester Automation Features

The automatic turret switches between objectives and the indenter seamlessly. Load control is fully automatic (loading, dwell, unloading). The motorized X-Y table enhances efficiency with continuous testing capabilities.

Vickers Hardness Tester Data Management

A built-in printer outputs results instantly. A USB port and PC software enable advanced data management and report generation. This ensures thorough documentation and analysis.

Vickers Hardness Tester Applications

It tests surface coatings, ceramics, and non-ferrous metals effectively. It’s suited for heat-treated, carbonized, and nitrided layers. Small, thin parts and hardness gradients are key focus areas.

Vickers Hardness Tester Industry Uses

Electronics firms test thin metal coatings for durability. Automotive plants assess small components like pins and springs. Research labs measure carbonized layer depths with precision.

Vickers Hardness Tester Standard Accessories

The package includes a Vickers indenter and 10X/40X objectives. A 10X electric eyepiece and motorized X-Y table are provided. Two hardness blocks ensure calibration accuracy.

Vickers Hardness Tester Additional Tools

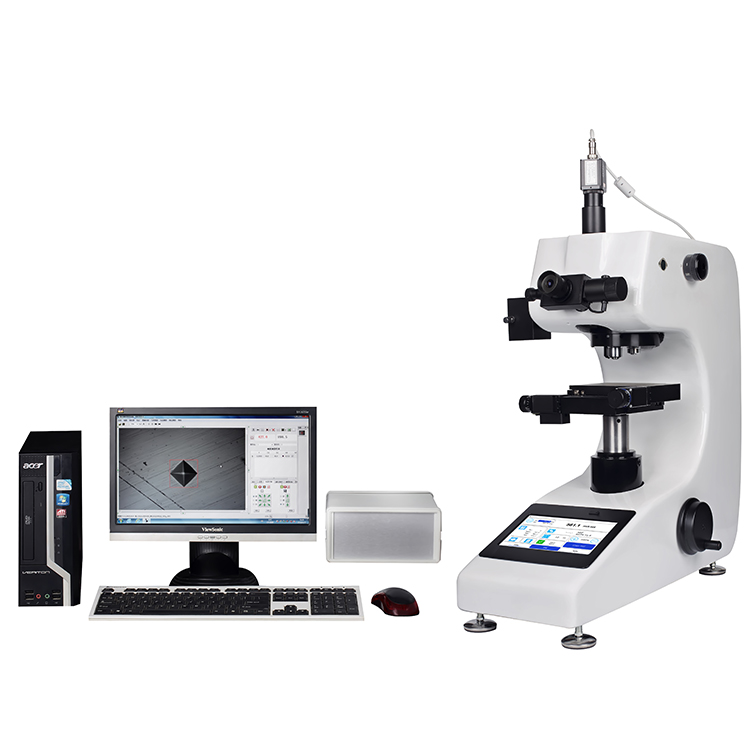

Three testing tables support various sample shapes. A CCD camera and semi-automatic software kit enhance control. An accessories box kit, manual, and certificate complete the delivery.

Vickers Hardness Tester Physical Specs

It supports specimens up to 90 mm high with a 120 mm indenter-to-wall distance. The unit weighs about 52 kg, making it portable yet sturdy. Its compact design fits most lab spaces.

Vickers Hardness Tester Power Requirements

It operates on AC 220V (±5%) at 50-60 Hz, ensuring global compatibility. The efficient power system supports consistent performance. This minimizes energy costs during extended use.

Vickers Hardness Tester Build Quality

High-definition optics and a durable frame ensure longevity. The semi-automatic design reduces wear on moving parts. It’s built to withstand rigorous lab environments.

Vickers Hardness Tester Operational Benefits

The touch screen simplifies setup and monitoring. Automatic features reduce operator effort and errors. Continuous testing boosts lab productivity significantly.

Vickers Hardness Tester Software Advantages

The PC software calculates D1/D2 corner lengths automatically. It includes tolerance judgment for upper/lower hardness limits. This streamlines quality control processes effectively.

Vickers Hardness Tester Setup Ease

The 52 kg unit is easy to install with included accessories. The manual guides quick setup and calibration. The software kit integrates seamlessly with PCs.

Vickers Hardness Tester Packaging

All components ship securely with professional packaging. Sunrise ensures safe delivery to protect delicate optics. A robust accessory box safeguards additional tools.

Vickers Hardness Tester Value Proposition

The LHVS-1000Z offers advanced precision at a competitive cost. It excels in micro-testing, saving time and resources. Its durability makes it a long-term lab asset.
