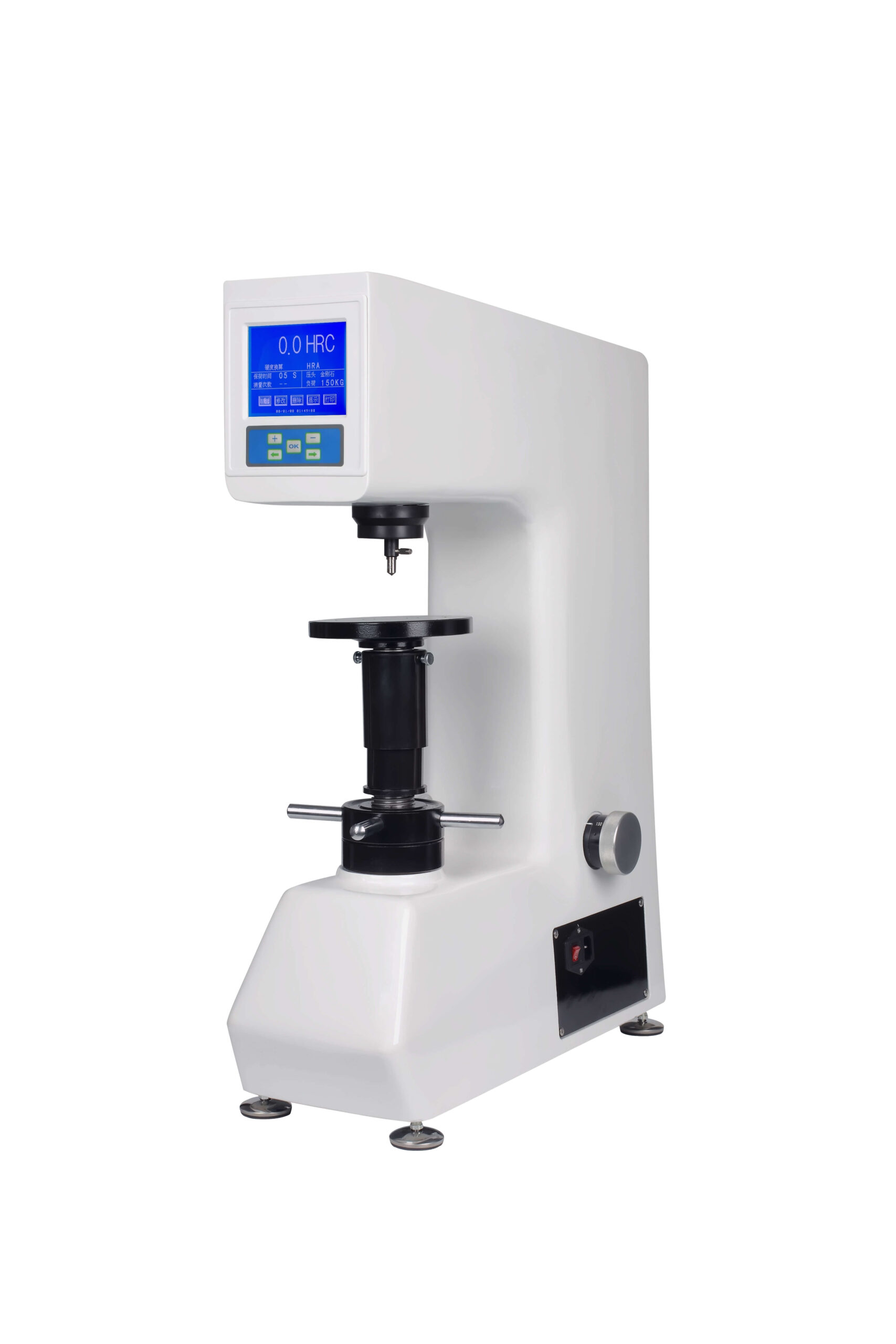

Introducing the HR-150-45DX Rockwell Hardness Tester

The HR-150-45DX Digital Rockwell Hardness Tester, crafted by Sunrise Test Equipment Co., Ltd, is a premier tool for material evaluation. It delivers accurate Rockwell hardness measurements for metals. This tester is perfect for industries prioritizing quality and durability.

Why Select This Rockwell Hardness Tester?

This tester combines a large LCD screen with digital precision. It offers easy operation and reliable results for quality control. Its versatility makes it a top choice for labs and production floors.

Rockwell Hardness Tester Standards Compliance

The HR-150-45DX meets GB/T230.2 for Rockwell testing accuracy. It complies with ISO 6508-2 and ASTM E18 standards. These ensure consistent, globally recognized performance.

Rockwell Hardness Tester Testing Forces

Preliminary forces are 3 kgf and 10 kgf for initial contact. Total forces range from 15 kgf to 150 kgf (15, 30, 45, 60, 100, 150 kgf). This flexibility suits various material types and thicknesses.

Rockwell Hardness Tester Scales and Ranges

It supports scales like HRA, HRB, HRC, HRD, and more (HRE, HRF, HRG, etc.). Measuring ranges include HRA: 20-95, HRB: 10-100, HRC: 20-70, and HRD: 40-77. Additional ranges cover HRF: 60-100, HRK: 40-100, and HRL: 50-115.

Rockwell Hardness Tester Physical Design

The unit measures 510×290×730 mm and weighs about 85 kg. It accommodates specimens up to 180 mm high. A 165 mm indenter-to-wall distance provides ample testing clearance.

Rockwell Hardness Tester Display Features

The large LCD screen displays hardness values clearly. It supports real-time data monitoring and adjustments. The digital interface enhances usability for operators of all levels.

Rockwell Hardness Tester Data Output

A built-in printer provides instant result documentation. An RS232 port enables PC connectivity for data storage. This dual-output system streamlines record-keeping and analysis.

Rockwell Hardness Tester Applications

This tester is ideal for testing heat-treated metals and alloys. It’s widely used in automotive, aerospace, and manufacturing sectors. It ensures components meet hardness specifications reliably.

Rockwell Hardness Tester Industry Use Cases

Automotive plants test gears and shafts for strength. Aerospace firms verify turbine blade durability. Steel manufacturers assess rolled products for consistent hardness.

Rockwell Hardness Tester Standard Accessories

It includes a diamond Rockwell indenter for precise measurements. A 1.5875 mm ball indenter supports softer materials. Five Rockwell and four superficial hardness blocks ensure calibration.

Rockwell Hardness Tester Testing Tables

Large, medium, and V-shaped testing tables are included. These accommodate flat, cylindrical, and irregular samples. This versatility enhances testing efficiency across sample types.

Rockwell Hardness Tester Operational Ease

Dwell time adjusts from 0 to 60 seconds for tailored testing. The intuitive LCD simplifies force and scale selection. Operators can achieve accurate results with minimal training.

Rockwell Hardness Tester Power Supply

It operates on AC 220V (±5%) at 50-60 Hz, ensuring global compatibility. The stable power design supports continuous use. Energy efficiency keeps operational costs low.

Rockwell Hardness Tester Build Durability

A plastic dustproof cover protects internal components. The robust frame withstands industrial wear and tear. This ensures long-term reliability in demanding environments.

Rockwell Hardness Tester Setup Benefits

The 85 kg unit is easy to install in labs or workshops. The included power cable and manual simplify setup. A certificate validates its quality out of the box.

Rockwell Hardness Tester Precision Advantages

It delivers repeatable, high-precision hardness readings. The digital system reduces human error in measurements. This boosts confidence in quality assurance processes.

Rockwell Hardness Tester Workflow Efficiency

The printer and RS232 output speed up data handling. Quick testing cycles improve lab throughput. Its design minimizes downtime between tests.

Rockwell Hardness Tester Packaging Details

The unit ships with all accessories securely packed. Sunrise ensures safe delivery with professional packaging. The dustproof cover doubles as storage protection.

Rockwell Hardness Tester Investment Value

The HR-150-45DX offers trusted precision at a competitive price. It reduces the need for multiple testers, saving space and cost. Its durability ensures years of dependable service.
