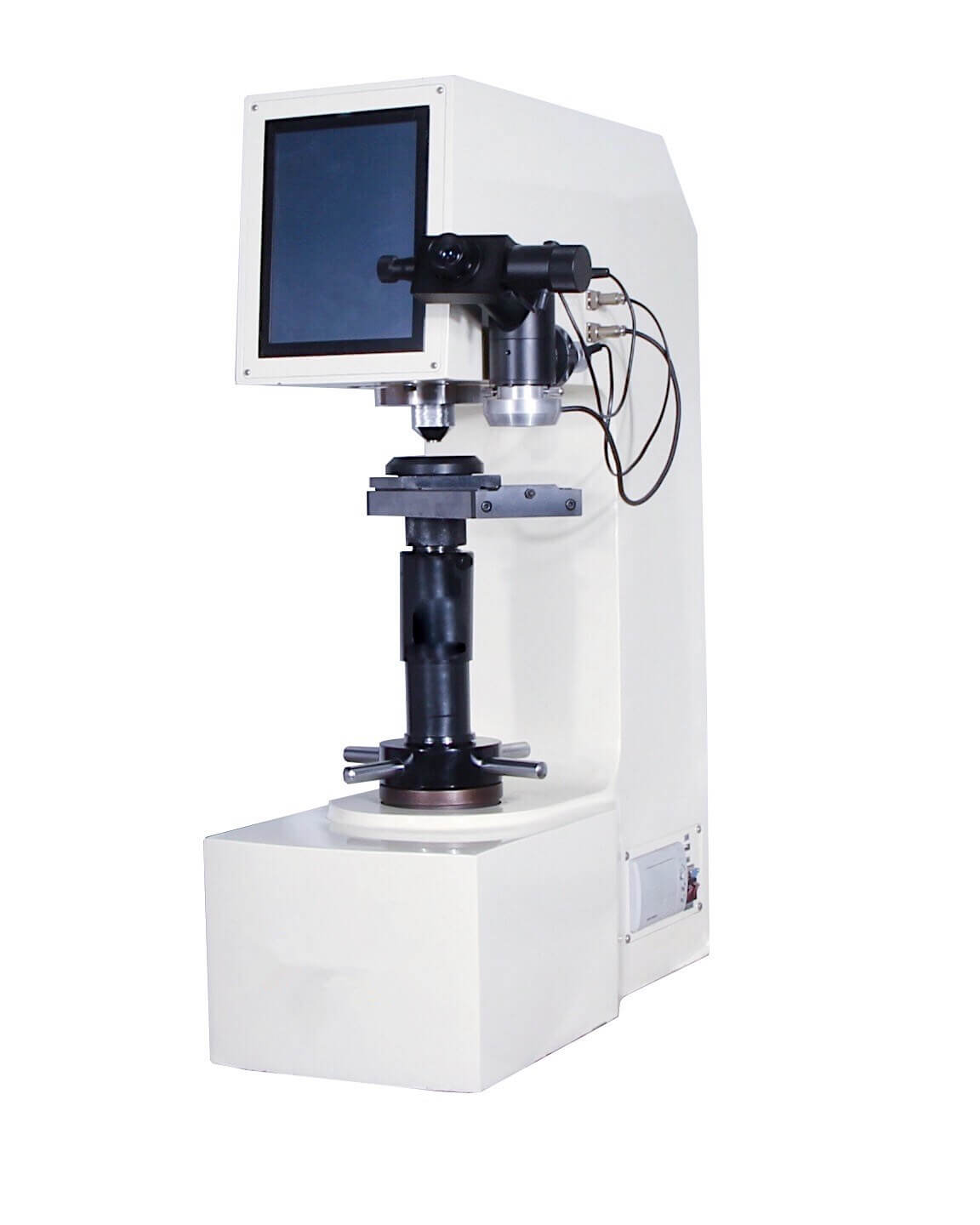

What Is the LHBRV-187.5DX Hardness Tester?

The LHBRV-187.5DX Digital Universal Hardness Tester, engineered by Sunrise Test Equipment Co., Ltd, is a state-of-the-art solution for material hardness testing. It integrates Brinell, Rockwell, and Vickers methods into a single, versatile unit. This tester is a must-have for industries requiring precise quality assurance on metals and alloys.

Why Choose This Hardness Tester?

This tester stands out with its intuitive digital touch screen interface. It automates loading and unloading, saving valuable time in busy labs. Its ability to handle multiple hardness scales makes it a flexible choice for diverse applications.

Hardness Tester Compliance Standards

The LHBRV-187.5DX adheres to rigorous standards like GB/T230.2 for Rockwell testing. It aligns with ISO 6508-2 and ASTM E18 for global consistency. JIS Z2245 compliance further ensures its reliability across international markets.

Hardness Tester Testing Capabilities

Rockwell testing applies forces of 60 kgf (588 N), 100 kgf (980 N), and 150 kgf (1471 N). Brinell ranges from 15.625 kgf (153.2 N) to 187.5 kgf (1839 N). Vickers offers 5 kgf (49.3 N) to 100 kgf (980.7 N), accommodating a wide variety of materials and test conditions.

Hardness Tester Scales and Measurement Ranges

It supports Rockwell scales like HRA, HRB, and HRC, with ranges of 20-90 HRA, 20-100 HRB, and 20-70 HRC. Brinell scales include HBW2.5/15.625 to HBW2.5/187.5, measuring 5-650 HBW. Vickers scales (HV5 to HV100) cover 5-3000 HV, offering comprehensive testing flexibility.

Hardness Tester Physical Specifications

The unit measures 550×230×780 mm and weighs approximately 85 kg, making it compact yet robust. It accommodates specimen heights up to 180 mm for Rockwell and 165 mm for Brinell and Vickers. A 160 mm distance from indenter to outer wall enhances accessibility during testing.

Hardness Tester Optical Precision

With magnifications of 25X, 50X, and 100X, this tester ensures detailed inspection. It includes a 10X digital eyepiece and objectives of 2.5X, 5X, and 10X. These optics provide clear, accurate views of hardness indentations, critical for quality control.

Hardness Tester Data Management

A built-in thermal printer delivers immediate test results for on-site analysis. An RS232 interface allows connection to computers for data logging and analysis. Conversion scales enable easy comparison across different hardness standards.

Hardness Tester Material Applications

This tester excels with ferrous and non-ferrous metals. Brinell is ideal for castings, annealed steel, and soft alloys. Rockwell suits heat-treated materials, while Vickers handles nitriding layers, ceramics, thin sheets, and plated coatings.

Hardness Tester Industry Use Cases

Steel manufacturers rely on it to verify material strength and consistency. Automotive plants test components like gears and shafts for durability under stress. Plating and ceramic industries use it to assess thin layers and small parts with high precision.

Hardness Tester Standard Accessories

The package includes diamond indenters for Rockwell and Vickers testing. It provides a 1.5875 mm ball indenter and 2.5/5 mm Brinell indenters. Hardness blocks, large/medium/V-shaped testing tables, and a sliding bench are also included.

Hardness Tester Advanced Features

The touch screen offers a user-friendly experience with real-time data display. Dwell time is adjustable from 0 to 60 seconds for tailored testing. An electronic closed-loop system ensures consistent force application, reducing errors.

Hardness Tester Power Requirements

It operates on AC 220V with a 5% tolerance (50-60 Hz), ensuring stable performance. The power setup supports labs worldwide. Its efficient design minimizes energy consumption during operation.

Hardness Tester Build Quality

A dustproof cover safeguards internal components from debris. The robust frame withstands heavy use in industrial settings. High-quality construction guarantees durability over years of testing.

Hardness Tester Operational Benefits

This tester enhances lab efficiency with its multi-mode capability. It delivers fast, repeatable results, critical for production timelines. The digital interface reduces training time for operators.

Hardness Tester Accessory Details

A microscope base with an internal headlamp aids visibility. An external headlamp, screwdriver, and level vial assist with setup. Power and RS232 cables, plus a manual and warranty, complete the kit.

Hardness Tester Packaging and Delivery

Each unit is carefully packed with all accessories included. Sunrise ensures secure shipping with protective boxing. Professional teams oversee delivery to maintain product integrity.

Hardness Tester Value Proposition

The LHBRV-187.5DX combines precision, versatility, and ease of use. It reduces the need for multiple testers, saving costs. Its advanced features make it a smart investment for quality-focused labs.
