Introduction

The SRLY-1000L Rain Simulation Chamber, crafted by Sunrise Test Equipment Co., Ltd, evaluates electrical products in rainy conditions. This advanced rain tester simulates dripping, splashing, and spraying per IPX5 and IPX6 standards. It’s ideal for electronics, automotive, and packaging industries seeking durability.

Standards Compliance

The chamber adheres to GB4208-2008 and GB2423.38 waterproof standards. It complies with IPX5 and IPX6 from the IEC. This ensures consistent, industry-approved testing outcomes.

Core Features

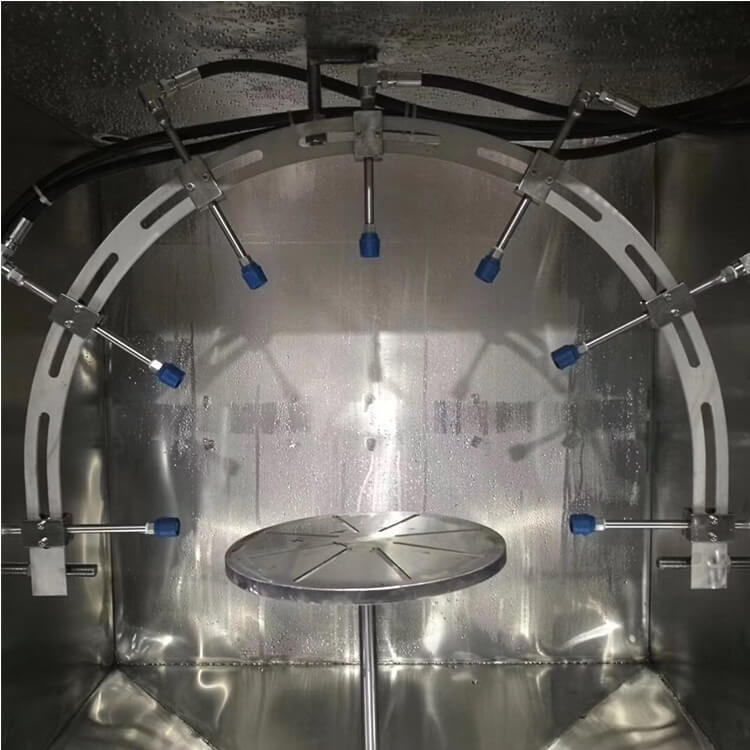

The SRLY-1000L features a 1000×1000×3600 mm test box for ample space. It uses two nozzles: 6.3 mm (IPX5) at 12.5 L/min and 12.5 mm (IPX6) at 100 L/min. Spray pressure adjusts from 80-150 kPa to mimic real-world rain.

Design and Build

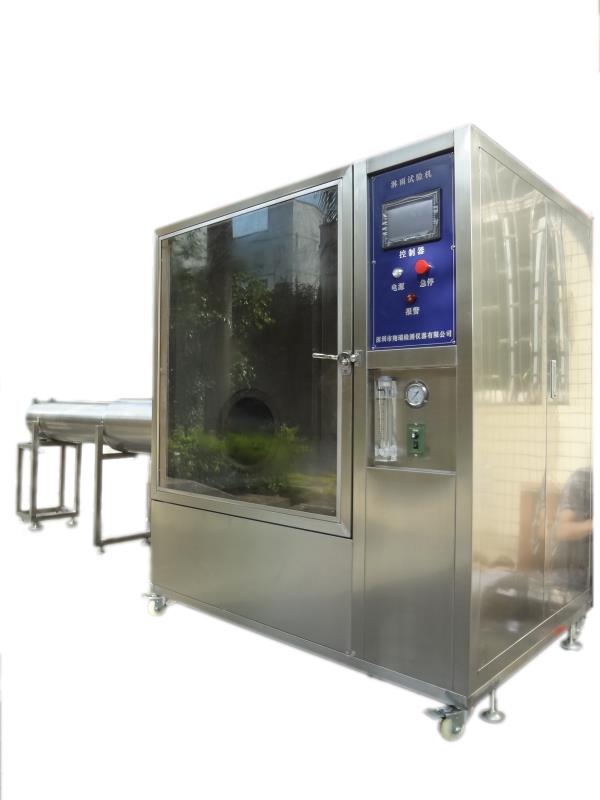

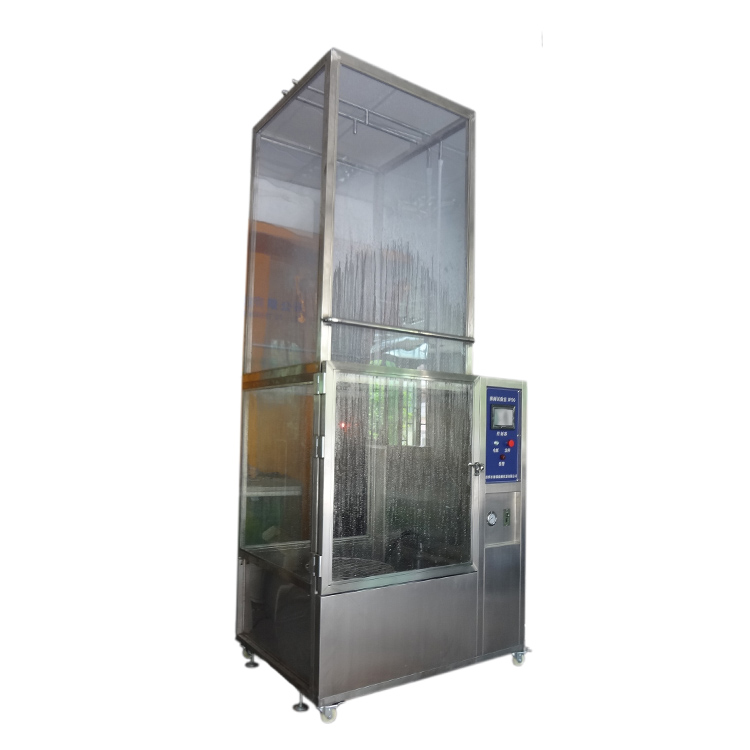

The outer box measures 1600×1400×3800 mm, built with SUS304 stainless steel. A height-adjustable stainless steel sprinkler pipe offers testing flexibility. The 500 mm turntable provides 1-3 RPM speed control via a touch screen interface.

Water Circulation

A 2.2 kW stainless steel pump powers the water system efficiently. Water recycles from a 450 mm deep tank, reducing waste. Flow meters, pressure gauges, and solenoid valves ensure precise water delivery.

Control System

The “Teelong” touch screen controller sets spray duration from 3 to 9999 minutes. Running time adjusts from 1 to 9999 minutes for custom cycles. Frequency conversion technology automates turntable and nozzle adjustments seamlessly.

Usability Benefits

Tempered glass walls allow clear, intuitive test monitoring. The two-part design splits for transport and reassembles with screws. Four foot cups and lockable casters provide stability and easy relocation.

Testing Precision

IPX5 delivers 12.5±0.625 L/min, while IPX6 provides 100±5 L/min. Adjustable pressure ensures repeatable, accurate results. The system supports continuous or intermittent spray for diverse scenarios.

Applications

The SRLY-1000L tests electronics, automotive parts, and enclosures per IEC standards. It verifies seals and shells against water ingress effectively. Industries ensure products endure wet conditions reliably.

Industry Examples

Electronics firms test casings for rain resistance and durability. Automotive manufacturers validate seals against splashes and heavy sprays. Packaging companies ensure protective layers withstand prolonged outdoor exposure.

Research Advantages

The chamber aids R&D by simulating real-world rain accurately. Engineers optimize designs for water resistance quickly and efficiently. It provides fast, reliable data to shorten development cycles.

Durability Features

Nozzles and tanks use 304 stainless steel for corrosion resistance. The chamber operates at 3.5 kW with a 380V supply. Brands like Schneider and Fuji enhance electrical reliability and longevity.

Operational Efficiency

A high-pressure pump delivers water to nozzles with minimal loss. The water-cycling system cuts waste and operational costs. Real-time pressure and speed displays improve test oversight.

Installation Ease

Front and rear handlebars simplify upper-layer setup. The transparent design supports dynamic monitoring during tests. A waterproof turntable motor ensures safety and extended use.

Maintenance Benefits

The stainless steel pump and tank require minimal maintenance. The recycling system includes drainage and auto-fill features. This design reduces downtime and extends service life.

Testing Flexibility

The chamber offers manual or automated spray adjustments. It supports small and large samples with its spacious interior. Customizable settings cater to specific industry needs.

After-Sales Support

Sunrise offers a 12-month warranty and free parts for non-human damage. Lifetime support responds within 48 hours, solutions in 3 days. Manuals, videos, and optional on-site service are available.

Packaging and Delivery

Units ship in wooden cases per IATA standards. Stretch film and hardboard secure the chamber during transit. Specialized teams inspect every unit for quality.
