Introduction

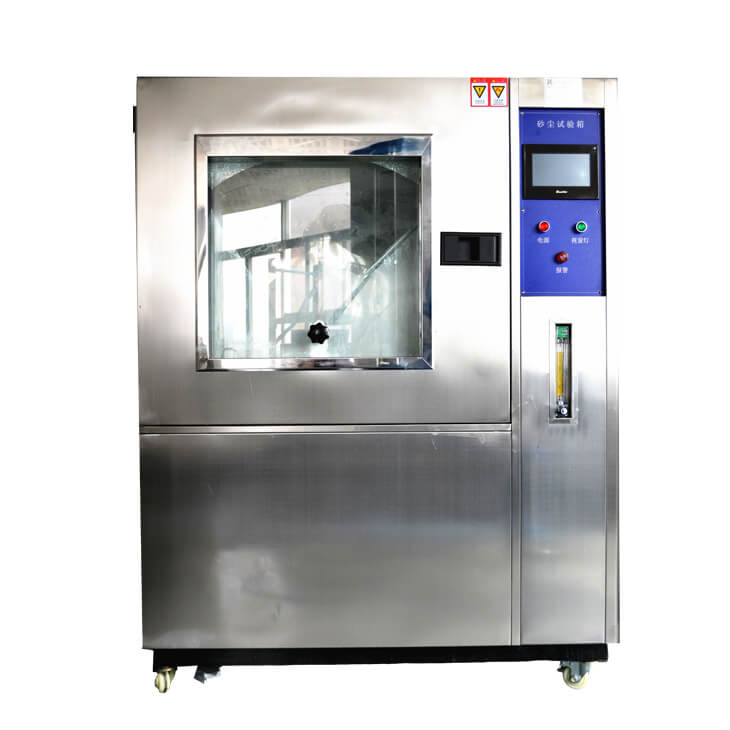

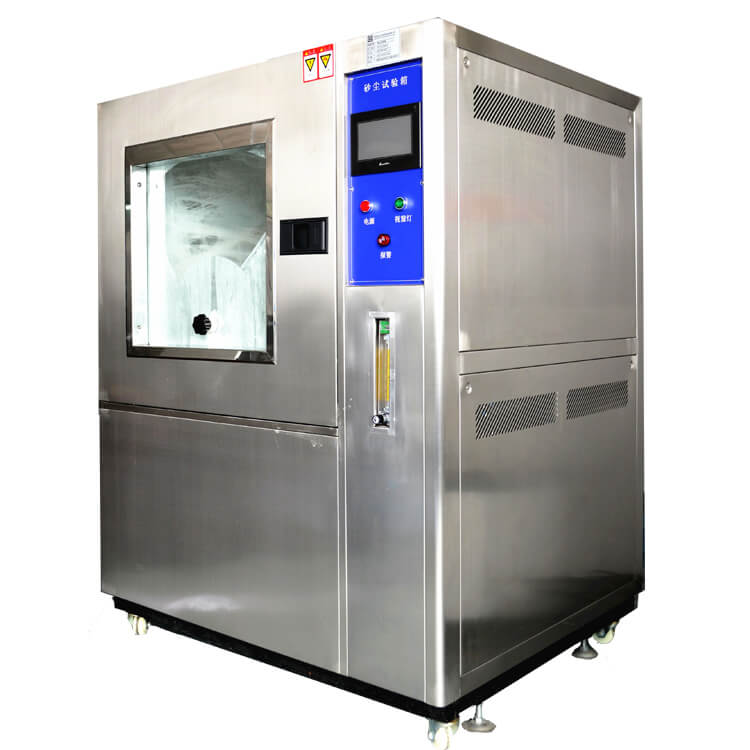

The SUNRISE SRSC IP6X Sand & Dust Test Chamber, engineered by Dongguan SUNRISE Test Equipment Co., Ltd, is a reliable ultimate solution for evaluating the resistance of mechanical, electrical, electronic, electrochemical, and electromechanical equipment to dry sand and dust. Designed to meet IP6X standards, this chamber tests whether devices can withstand harsh environmental conditions during storage or operation. Available in models SRSC-512, SRSC-800, SRSC-1000, and SRSC-1500, it offers inner volumes from 80 × 80 × 80 cm to 100 × 150 × 100 cm, with adjustable talcum powder levels (2-4 kg/m³) and a temperature range of RT+10 to 65°C. Compliant with international standards, the SRSC features a PLC touch screen controller and robust SUS304 stainless steel construction, making it an essential tool for quality assurance in industries like automotive, electronics, and defense.

Why Choose the IP6X Sand & Dust Test Chamber?

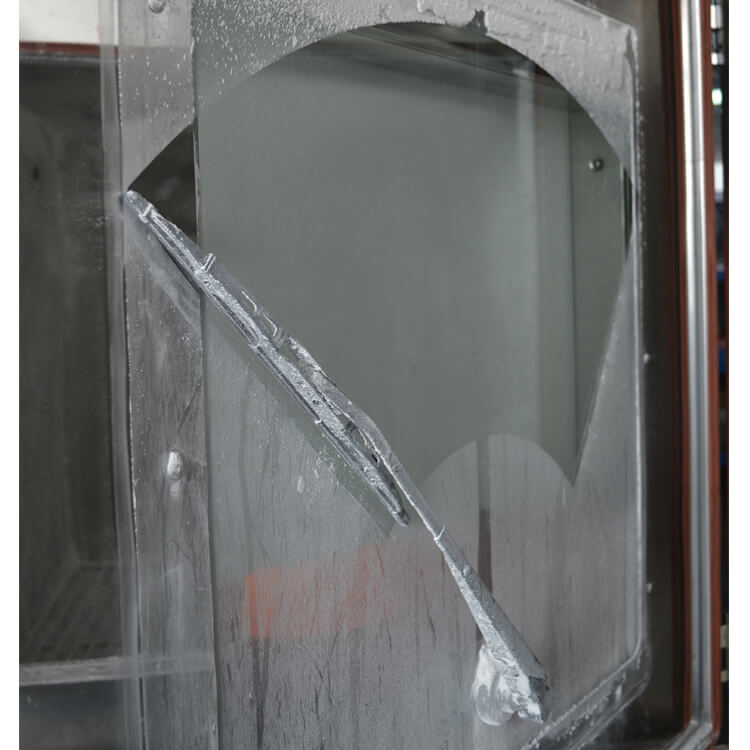

The SUNRISE SRSC stands out with its versatile testing capabilities, allowing users to simulate dust ingress with an airflow speed not exceeding 2 m/s and customizable blowing and rapping cycles (1s to 99h). The chamber’s tempered glass door with an observation window (40 × 40 cm to 80 × 60 cm depending on the model) enables real-time monitoring, while the PT100 temperature sensor ensures accurate climate control. Its vacuum system, equipped with a pressure gauge, air filter, and a 60-600 L/H vacuum pump, enhances dust penetration testing. The programmable PLC controller allows for tailored cycles, including pre-set test times up to 999h99m99s, offering flexibility for various testing scenarios. Built with SUS304 stainless steel and featuring safety protections like over-temperature and short-circuit safeguards, the SRSC combines durability with ease of use, making it ideal for rigorous testing environments.

Key Features of the IP6X Sand & Dust Test Chamber

The SRSC series is packed with features to ensure precision and reliability:

Adjustable Dust Levels: Talcum powder concentration of 2-4 kg/m³, adjustable for different tests.
Wide Temperature Range: Operates from RT+10 to 65°C with PT100 sensor accuracy.
Customizable Cycles: Blowing and rapping times adjustable from 1s to 99h.
User-Friendly Interface: PLC touch screen controller with programmable cycles up to 999h99m99s.
Robust Construction: Features SUS304 stainless steel inner and outer chambers.
Safety Systems: Includes over-temperature, phase shortage, and power short-circuit protections.
Vacuum Capability: Supports 60-600 L/H vacuum pump for enhanced dust testing.

Applications of the IP6X Sand & Dust Test Chamber

The SUNRISE SRSC is designed for industries requiring stringent environmental testing, including automotive, electronics, military, and industrial manufacturing. It is ideal for assessing the dust resistance of devices like sensors, circuit boards, and machinery components, ensuring they perform under harsh conditions. Its ability to simulate real-world dust exposure supports quality control in research labs, technical supervision departments, and defense sectors, guaranteeing equipment reliability in dusty environments such as deserts or construction sites.

Benefits of Investing in the IP6X Sand & Dust Test Chamber

The SRSC enhances testing efficiency with its programmable controller and adjustable dust cycles, allowing for tailored and repeatable tests. The plastic centrifugal fan ensures uniform dust distribution, while the vacuum system improves penetration testing accuracy. Safety features like over-temperature protection and phase shortage safeguards minimize risks and extend equipment lifespan. Professionally packaged with wooden cases and stretch film, it arrives in optimal condition. Its compliance with IP6X standards and durable design make the SRSC a cost-effective, long-term investment for businesses committed to ensuring equipment durability in dusty conditions.

Contact Us for Your IP6X Sand & Dust Test Chamber

Ready to ensure equipment durability with the SUNRISE SRSC? Contact us for more details, customization options, or a demo:

Phone/WeChat: +86 15992719785 (Jess)
Email: [email protected]
Website: www.sunrisedg.com

The SUNRISE SRSC IP6X Sand & Dust Test Chamber delivers reliable ultimate precision and durability testing for your equipment. Reach out today to learn how it can elevate your quality assurance processes!
