Precision Button Force-Displacement Analysis System

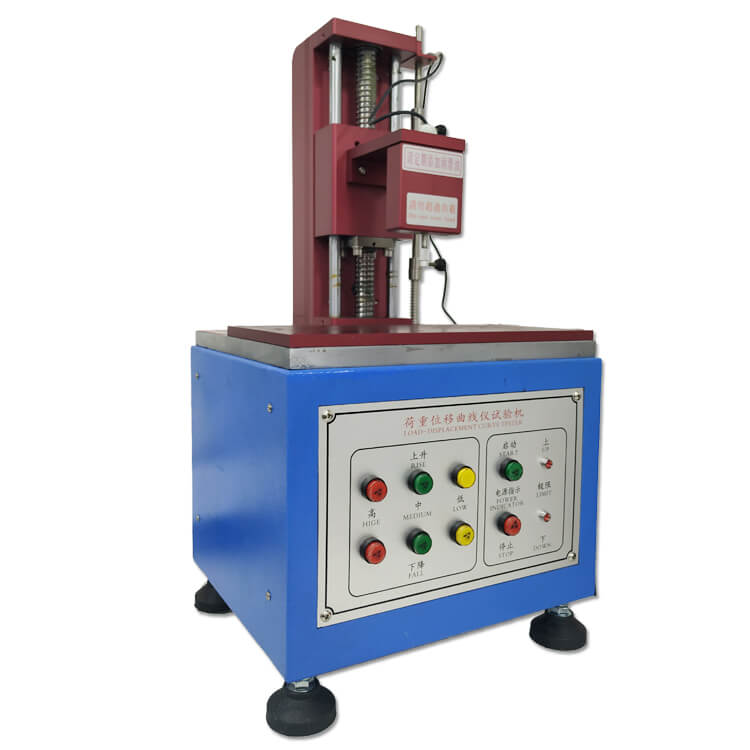

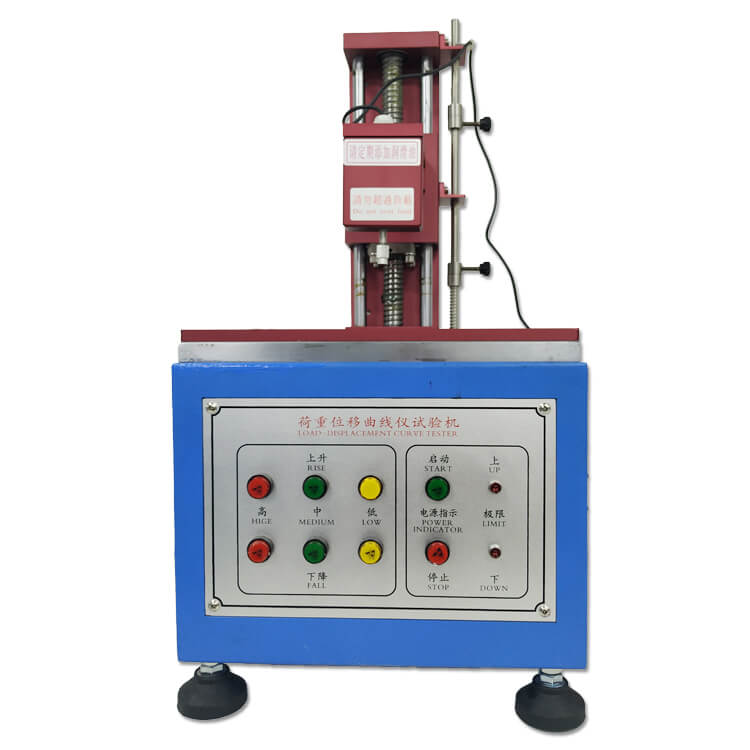

The S205 Keyboard Load-Stroke Curve Tester delivers laboratory-grade characterization of button mechanics through high-resolution load-stroke curve measurement (0.01gf resolution) with 100mm maximum stroke and servo motor precision control, enabling complete evaluation of:

Tactile feedback characteristics
Activation force points
Return spring performance
Life cycle degradation

Key Testing Capabilities

✔ Ultra-Precise Measurement

0.01gf load resolution (optional 0.001mm stroke)
0.5% speed accuracy (1-100mm/min)

✔ Automated Analysis

Peak/return force auto-calculation
Pass/fail judgment against limits

✔ Comprehensive Reporting

Exportable load-stroke curves
Excel-compatible test reports

✔ Wide Compatibility

Rubber/metal dome buttons
Keyboard switches
Tactile panels

Technical Specifications

Parameter	Specification	Measurement Significance
Load Capacity	500gf / 2kgf (optional)	Covers all button types
Load Resolution	0.01gf	Detects minute force variations
Stroke Range	0.01-100mm	Full travel characterization
Speed Range	1-100mm/min	Simulates various press speeds
Drive System	Servo motor + ball screw	Smooth, repeatable motion
Dimensions	300×270×500mm	Compact benchtop design

Advanced Testing Features

1. Real-Time Curve Analysis

Instant visual feedback during testing
Zoomable graph display
Multi-curve comparison

2. Smart Judgment System

User-definable upper/lower limits
Automatic OK/NG determination
Audible/visual alerts

3. Flexible Data Management

Unlimited test data storage
Custom report templates
Multi-unit conversion (N/lb/gf/kgf)

Complete Testing Workflow

Fixture Setup
- Mount test button
- Position probe
Parameter Configuration
- Set stroke distance
- Input speed/force limits
Test Execution
- Automated press/release
- Real-time curve monitoring
Results Analysis
- Peak force identification
- Hysteresis loop analysis
- Statistical reporting
