Universal Tensile Testing Machine

Introduction

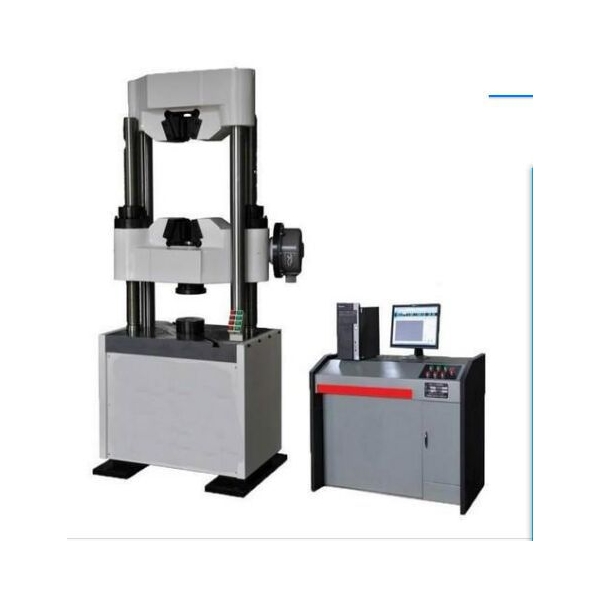

The SUNRISE SR-108 Computer Control Electro-Hydraulic Servo Universal Testing Machine is a robust, high-capacity solution engineered for testing metal and non-metal materials with a maximum force of 1000 kN. Designed by Dongguan SUNRISE Test Equipment Co., Ltd, this advanced machine excels in tensile, compression, and bending tests, making it ideal for industries like metallurgy, engineering, aerospace, and scientific research. Compliant with standards such as GB/T228-2010 and ISO protocols, the SR-108 integrates precision servo technology, a four-column structure, and computer-controlled automation to deliver reliable, repeatable results. Whether you’re testing the tensile strength of steel or the compressive properties of concrete, this machine ensures accuracy and efficiency for demanding applications.

Why Choose the Servo Universal Testing Machine?

The SUNRISE SR-108 stands out with its electro-hydraulic servo system, featuring a Panasonic servo motor and controller for seamless closed-loop control. With a testing force range of 2%-100% FS and an accuracy of ±1%, it offers exceptional precision for heavy-duty tasks. The machine’s four-column cast steel frame and underlying oil cylinder design reduce height, enhance stability, and allow easy installation. Its maximum tensile space of 600 mm and compression space of 550 mm accommodate a variety of sample sizes, while the adjustable testing platform—driven by an electric motor, chains, and screws—ensures operational convenience. Low noise operation (below 50 dB) and energy-saving features (up to 70% less consumption) make it an eco-friendly and user-friendly choice for modern testing labs.

Key Features of the Servo Universal Testing Machine

The SR-108 is packed with advanced features to meet diverse testing needs:

• High-Capacity Testing: Supports a maximum force of 1000 kN, suitable for metals, composites, and more.
• Precision Control: Electro-hydraulic servo closed-loop system with a deformation resolution of 1/300,000 and piston displacement accuracy of ±1% FS.
• Versatile Testing Spaces: Offers 600 mm for tensile tests, 550 mm for compression, and 340 mm for bending.
• Computer Integration: Displays real-time data (testing force, displacement, deformation) and experiment curves on a PC screen, with software supporting Windows XP/7.
• Energy Efficiency: Follow-up pressure technology reduces energy use by 70% compared to traditional machines.
• Robust Components: Includes a Marzocchi servo oil pump, Panasonic servo motor, and a high-resolution displacement encoder for consistent performance.
• Safety and Durability: Features overload protection, stable oil pipelines, and a sealed hydraulic system to prevent leaks.

Applications of the Servo Universal Testing Machine

The SUNRISE SR-108 is designed for a wide range of material testing applications. It meets GB/T228-2010 for metallic tensile testing, GB/T7314-2005 for compression, and GB/T14452-1993 for bending, making it a go-to choice for testing steel, aluminum, and other metals at ambient temperatures. It also supports specialized tests like torsion (GB/T10128) and concrete testing per JTGE30-2005 standards. Industries such as aviation, automotive, and construction benefit from its ability to handle high-capacity loads, while research institutions use it to analyze material properties like elastic modulus and stress points. With optional tools like extensometers and bending fixtures, the SR-108 adapts to both standard and custom testing requirements.

Benefits of Investing in the Servo Universal Testing Machine

Choosing the SUNRISE SR-108 means investing in precision, durability, and efficiency. Its high control accuracy (1/10,000) and lack of dead zones ensure reliable data, reducing errors in quality control processes. The integrated PC software automates data collection, processing, and report generation, saving time and improving workflow. The machine’s compact design (990 × 650 × 2250 mm for the main unit) fits seamlessly into testing facilities, while its low-maintenance hydraulic system and stable pipeline design minimize downtime. With compliance to international standards and energy-saving technology, the SR-108 offers a cost-effective, long-term solution for businesses aiming to maintain high testing standards.

Contact Us for Your Servo Universal Testing Machine

Ready to enhance your testing capabilities with the SUNRISE SR-108? Our team is available to provide detailed insights, answer questions, or customize the machine to your specifications. Get in touch today:

• Phone/WeChat: +86 15992719785 (Jess)
• Email: [email protected]
• Website: www.sunrisedg.com

The SUNRISE SR-108 Servo Universal Testing Machine is your key to achieving superior material testing results. Contact us now to discover how it can elevate your operations!
