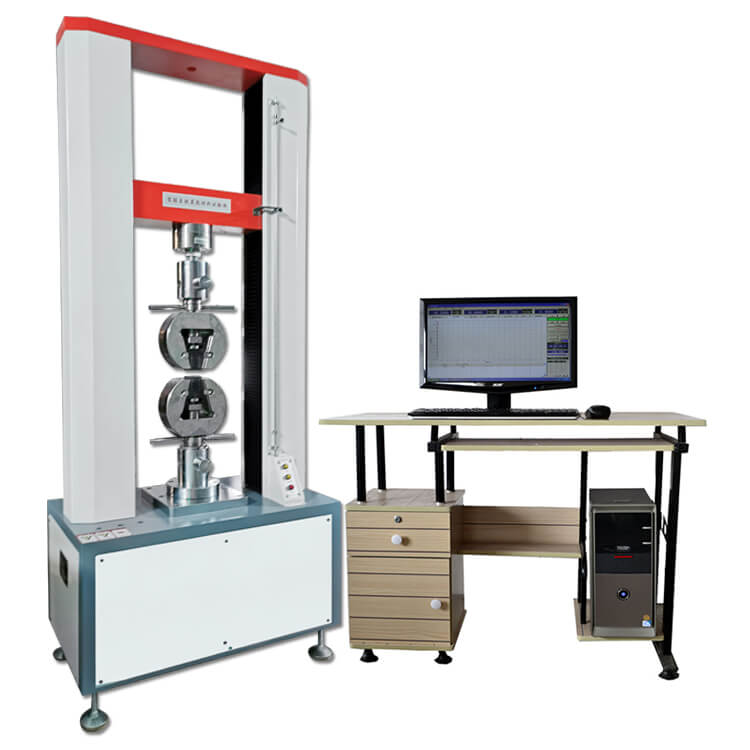

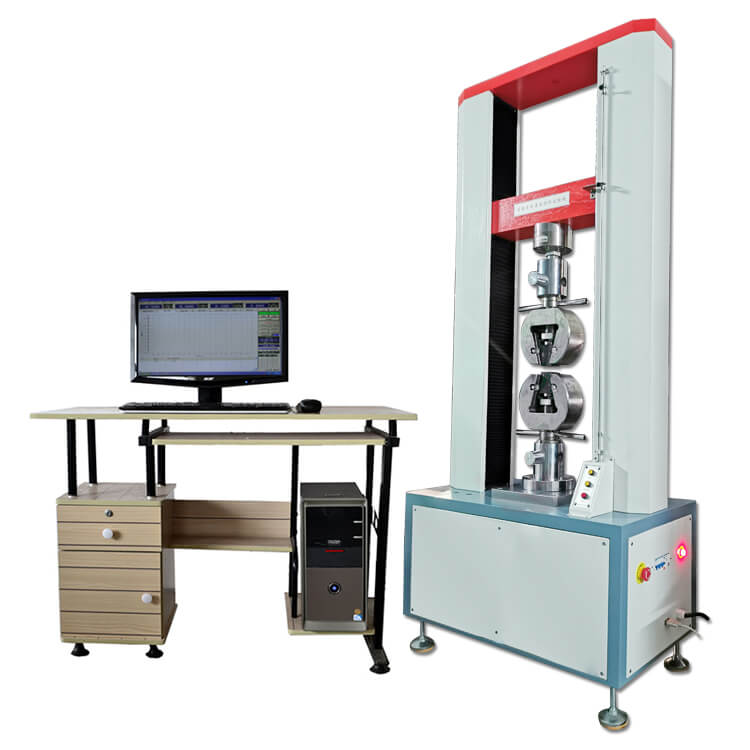

Servo Universal Tensile Testing Machine -30T

Universal tensile test machine is mainly applicable to rubber, plastics, wire and cable, fiber optic cable, seat belts, belts, leather belt, waterproofing materials, composite materials, plastic profile steel, copper, profile, spring steel, bearing steel, stainless steel, and other high hardness steel), castings, steel plates, steel, non-ferrous metal wire tensile, compression, bending, shear, peel, tear, two-point extension (match) exten someter and other test.

This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper loadcell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically on the computer.

Test standards :

Universal tensile testing machine can be suitable for so many test standards, here we just show some mainly used test standards, other standards, pls tell us the standards you need, then we check for you.

Mainly test standards :

ASTMD903, ASTM D412, ASTM D882, ASTM D638, ASTM D828, CNS- 11888, ASTM D2344, ASTM D4255, ASTM C273, ASTM D790, 6272, 7264, ASTM D1781 or MIL-STD-401B, ASTM D905, JIS K6854, PSTC-7, ISO 37, etc.

Technical Specifications :

Item	Universal Tensile Testing Machine
Max. Capacity	5, 10, 20, 50, 100, 200, 500, 1000, 2000, 3000Kg ( optional )
Unit	G, KG, N, LB can be exchanged
Accurate Grade	0.5 grade
Display Device	PC controlled
Resolution	1/300,000
Effective Accuracy	±0.2%(0.5grade) or ±1%(1grade)
Max.width	400mm (or customize)
Max.Stroke	800mm (or customize)
Speed Range	0.05-500mm/min (adjustable )
Motor	Servo Motor + High Precise Ball Screw
Elongation Accuracy	0.001mm(rubber or soft plastic)/0.000001mm(metal or hard plastic or others)
Power	AC220V, 50/60HZ(custom-made)
Machine size	8005002200mm
Standard Accessories	Tensile clamp, Tool kit, Computer system, English software CD, User manual
