Leather and Shoes Testers

Summary:

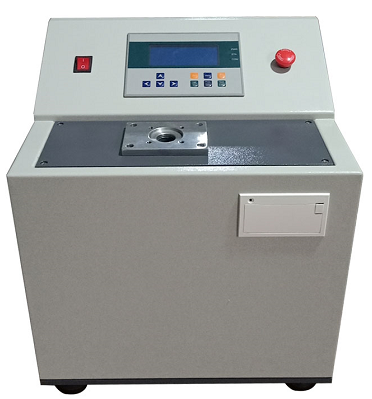

This tester is tested the anti-cracking index in the thin leather and upper leather.

First fixed specimen’s periphery by this device, and then make the ball rise up

from the leather’s inside by speed about 12mm per minute, When the leather

suffered the strength of 800N, the value of rising hight is the measured value of

crack.

Corresponding standard :

QBT 2712-2005  measured leather with strength and extended height, test of spherical crack.

Applicable industry：

Applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; commodity inspection, arbitration and technical supervision departments.

Technical parameters:

Load Capacity : 1000 N

Unit  :  kgf / N / LB

Resolution :  1 / 50000

Inductive method  : force sensor (from United States)

Resolution  : 1 / 50, 000

Diameter of the specimen after fixation  :  Φ25mm

Speed  :  12 mm / min

Ball Diameter  :  Φ6.25mm

Scale range  :  0 ~ 20mm

Volume  :  (W × D × H): 44 × 33 × 45 cm

Power  :  220V, 50HZ

Details
