Introduction

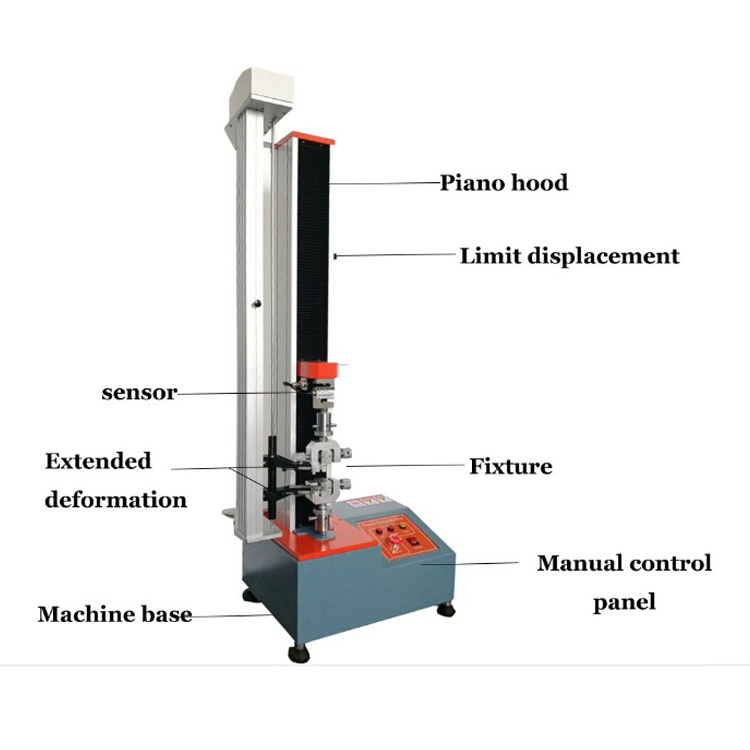

The SUNRISE SR-106 Servo Universal Tensile Testing Machine is your perfect choice! Designed for a wide range of materials including rubber, plastic, wire and cable, fiber optic cable, seat belts, leather, composites, metals (such as steel and copper), and paper, this advanced machine supports multiple tests like tensile, compression, bending, shear, peel, tear, and two-point extension. It’s an essential tool for manufacturing, research, and quality control industries.

Why Choose the Servo Universal Tensile Testing Machine?

Developed by SUNRISE Test Equipment Co., Ltd in Dongguan City, the SR-106 integrates modern industrial design with premium components like Taiwan TBI ball screws and GUANGDONG JMA protective covers, ensuring durability and stability. Whether you’re conducting peel tests on flexible materials or tensile tests on high-hardness metals, this Servo Universal Tensile Testing Machine delivers precise data to enhance quality control and innovation.

Key Features of the Servo Universal Tensile Testing Machine

High-Precision Testing: Equipped with a Japan Panasonic servo motor and a U.S. TRANSCELL load cell, it offers a resolution of 1/300,000 and a testing accuracy of ±0.2% (0.5 grade), ensuring reliable results.
Exceptional Flexibility: Supports capacities from 5 kg to 30 tons, with adjustable test speeds ranging from 0.05 to 500 mm/min, meeting diverse material testing needs.
Versatile Applications: Complies with international standards such as ASTM D638, ISO 6892-1, and JIS Z2241, ideal for rubber tensile tests, plastic tear tests, and metal tensile strength assessments.
Smart Operation: PC-controlled with a Windows platform, it supports Simplified Chinese, Traditional Chinese, and English interfaces, offering real-time data display and customizable reports.
Safety and Reliability: Features overload, overcurrent, overvoltage, and displacement limit protections to safeguard both the equipment and operators.

Technical Specifications of the Servo Universal Tensile Testing Machine

Maximum Capacity: 5, 10, 20, 50, 100, 200 kg (up to 30T)
Testing Accuracy: ±0.2% (0.5 grade) or ±1% (1 grade)
Resolution: 1/300,000
Maximum Test Width: 300 mm (customizable)
Maximum Stroke: 450 mm (customizable)
Test Speed: 0.05-500 mm/min (adjustable)
Elongation Accuracy: 0.001 mm (rubber/soft plastic) or 0.000001 mm (metal/hard plastic)
Machine Dimensions: 450 × 500 × 1350 mm
Weight: Gross weight 78 kg (including packaging)
Power Supply: AC220V, 50/60Hz (customizable)
