Tape and Adhesive Test Instruments

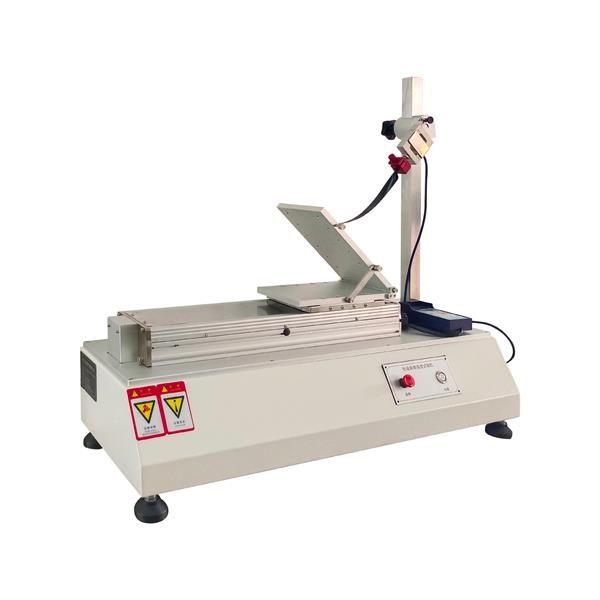

This machine adopts a horizontal structure, which completely changes the shortcomings of the testing machine, such as bulky machine, complicated operation, and single performance. It is fully computer controlled and runs smoothly. It is suitable for peeling, shearing, tensile and other performance tests of carrier tape, adhesive, adhesive tape, self-adhesive composite film, artificial leather, woven bag, film, paper and other related products to determine the quality of the product.

[principle]

The test slide table is moved by using the motor to drive the ball screw, thus stretching the sample, and the force sensor is connected to the computer to automatically display the force value and displacement curve.

  [Features]

※ Professional clamping method makes your test precise and productive.

※ High precision load cell, durable and high precision.

※ Digital force display can accurately display the force value.

[Technical Parameters]

Test load: 5KG

Unit switching: kg, N, KN

Load Resolution: 1/250,000

Loading accuracy: ±0.5%

Maximum stroke (without fixture): 300mm

Test speed: 0.1~30000mm/min can be adjusted arbitrarily

Angle: 90 degrees/180 degrees

Motor: servo motor

Machine size: 810×320×750mm

Power supply: 1∮, 220V, 6A or specified

Weight: about 30kg
