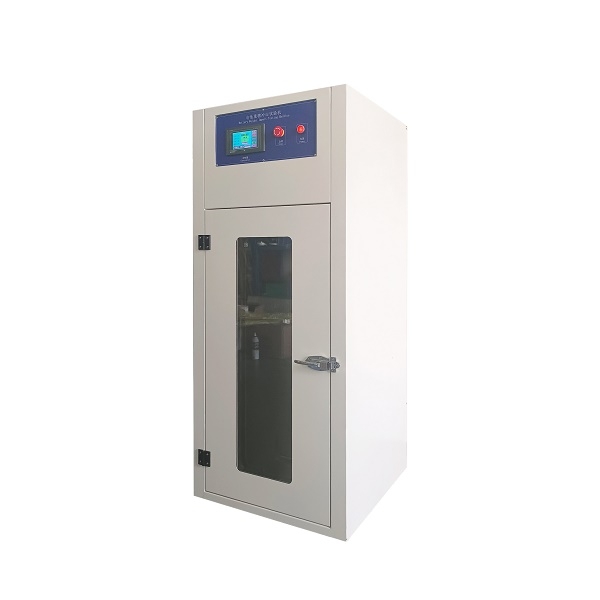

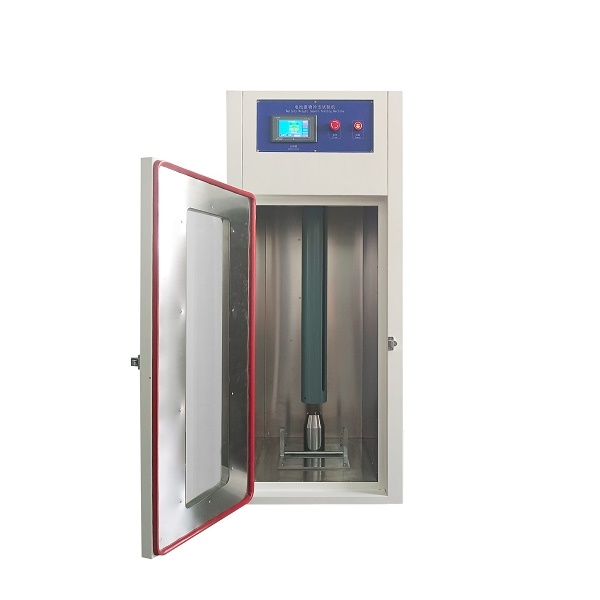

Battery Laboratory Equipment Heavy Impact Tester
Application:
Factory supply professional battery impact testing machine,test the safety performance of the battery through the different height of different weight and different stress area, according to the test rules, the battery should not ignite or explode.
Standards:
IEC60086-4, UL1642, UL2054-2005, UN38.3, IEC62281-2004, GB/T18287-2000, GB/T2900.11-1988, SJ/T11169-1998, SJ/T11170-1998, YD1268-2003, MT/T1051-2007
Characteristics:
1 Testing battery sample should be placed on a plane, with a diameter of 7.9 mm rod cross placed in the center of the sample position, a 9.1kg weight from 610mm height drops to the sample. Each battery sample as long as bears a shock, each test uses different samples.
2 Place the battery sample on a flat surface and place a bar with a diameter of 15.8mm (5/8 inch) across the central position of the sample. A weight of 9.1kg or 10kg±0.46kg (20±1lbs) falls on the sample from a height of 1000±25mm.
Specications:
|
Model
|
DZ-501 Factory supply professional battery impact testing machine
|
|
Falling height
|
9.1kg and 10kg
|
|
Bar
|
610~1000mm(Digital display can be set)
|
|
Internal material
|
15.8mm or 7.9mm selectable
|
|
External material
|
SUS#304 stainless steel plate
|
|
Power mode
|
Cold rolled steel baking finish
|
|
Upper and lower impact surfaces
|
Electric, fall free
|
|
Test space
|
Steel plates
|
|
Cabinet dimensions
|
W200×D200×H200mm
|
|
Test chamber external size
|
W720×D780×H1870mm
|
|
Power supply
|
AC 1φ 220V 50HZ/60HZ
|
|
Rate of work
|
0.5KW
|
|
Machine weight
|
About 150Kg
|
